Heat Shield: Service and Repair
HEAT SHIELD COVERREMOVAL
1. FRONT HEAT SHIELD COVER
1. Remove the center exhaust pipe.

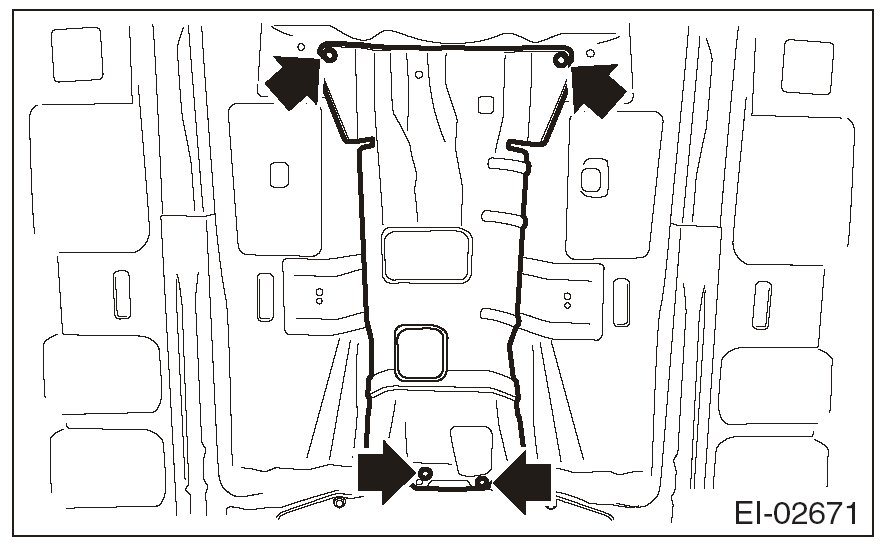

2. Remove the four bolts to remove the front heat shield cover.
2. CENTER HEAT SHIELD COVER
1. Remove the rear exhaust pipe.
2. Remove the propeller shaft. (Turbo model only)

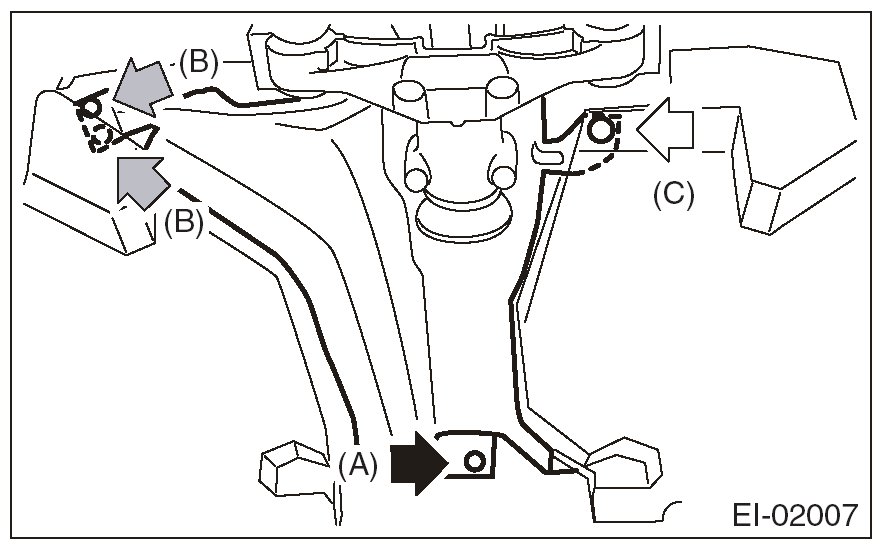

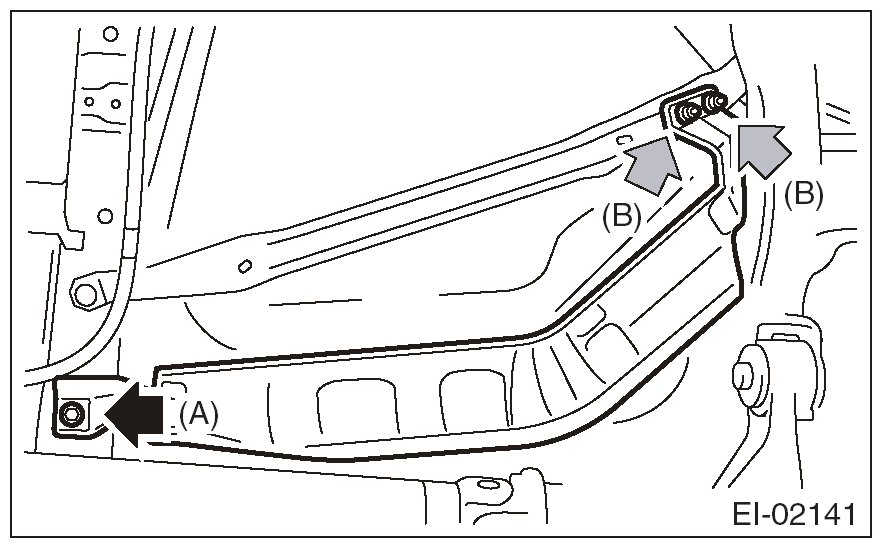

3. Remove the bolt (A), nuts (B), and clip (C), and remove the center heat shield cover.
3. REAR HEAT SHIELD COVER
1. Remove the muffler.
2. Remove the bolts, and remove the rear heat shield cover.
INSTALLATION
Install each part in the reverse order of removal.
Tightening torque: Refer to "COMPONENTS"
