Combination Switch: Testing and Inspection

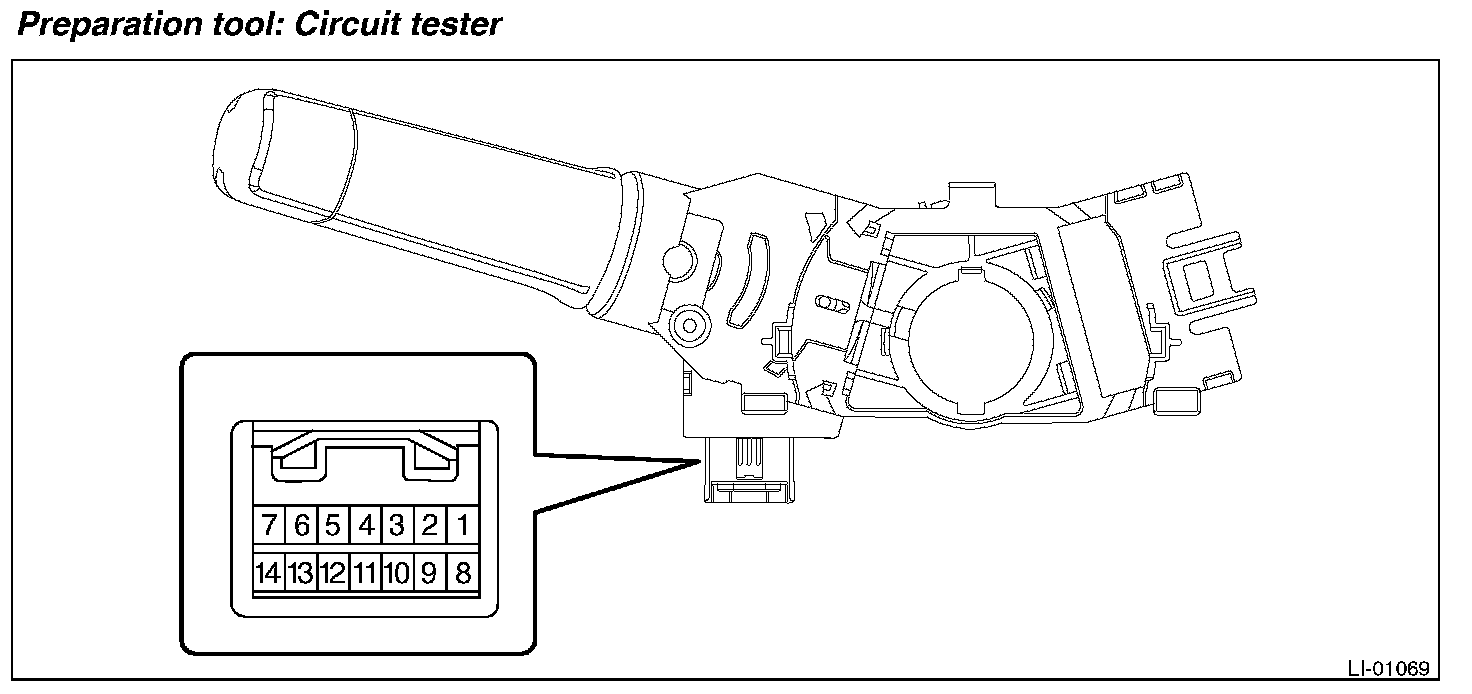

Combination Switch (Light)INSPECTION 1.
Disconnect the
combination switch (light) connector.
2.
Measure the resistance between
combination switch (light) connector terminals.
3.
Replace the
combination switch (light) if the inspection result is not within the standard value.
1.

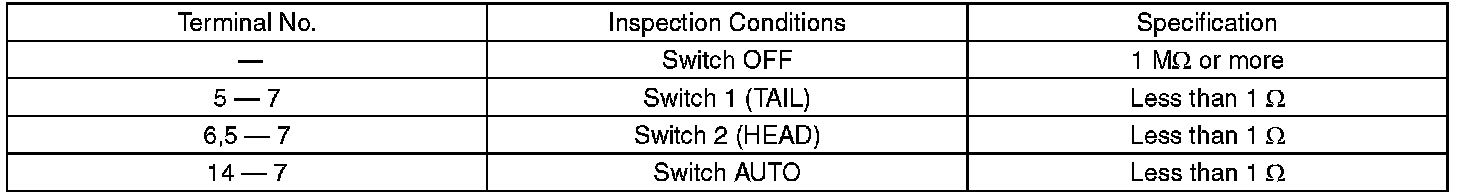

LIGHTING SWITCH 2.

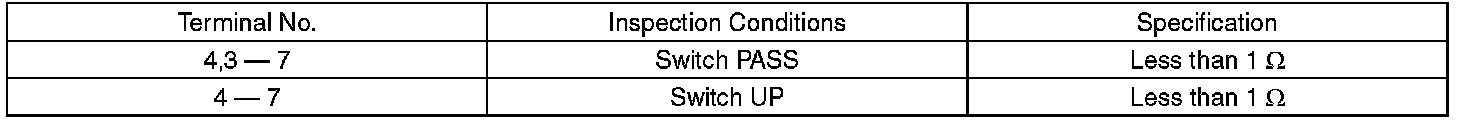

DIMMER & PASSING SWITCH 3.

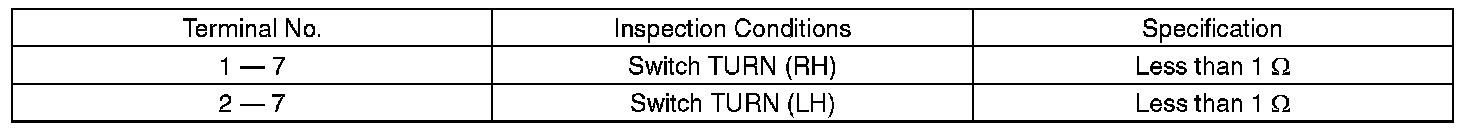

TURN SIGNAL SWITCH 4.

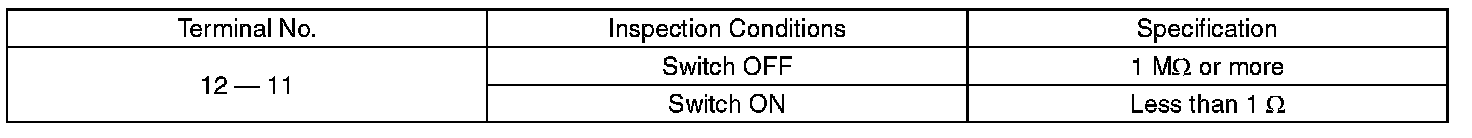

FRONT FOG LIGHT SWITCH
