Cabin Air Filter / Purifier: Service and Repair




A/C Filter

REPLACEMENT

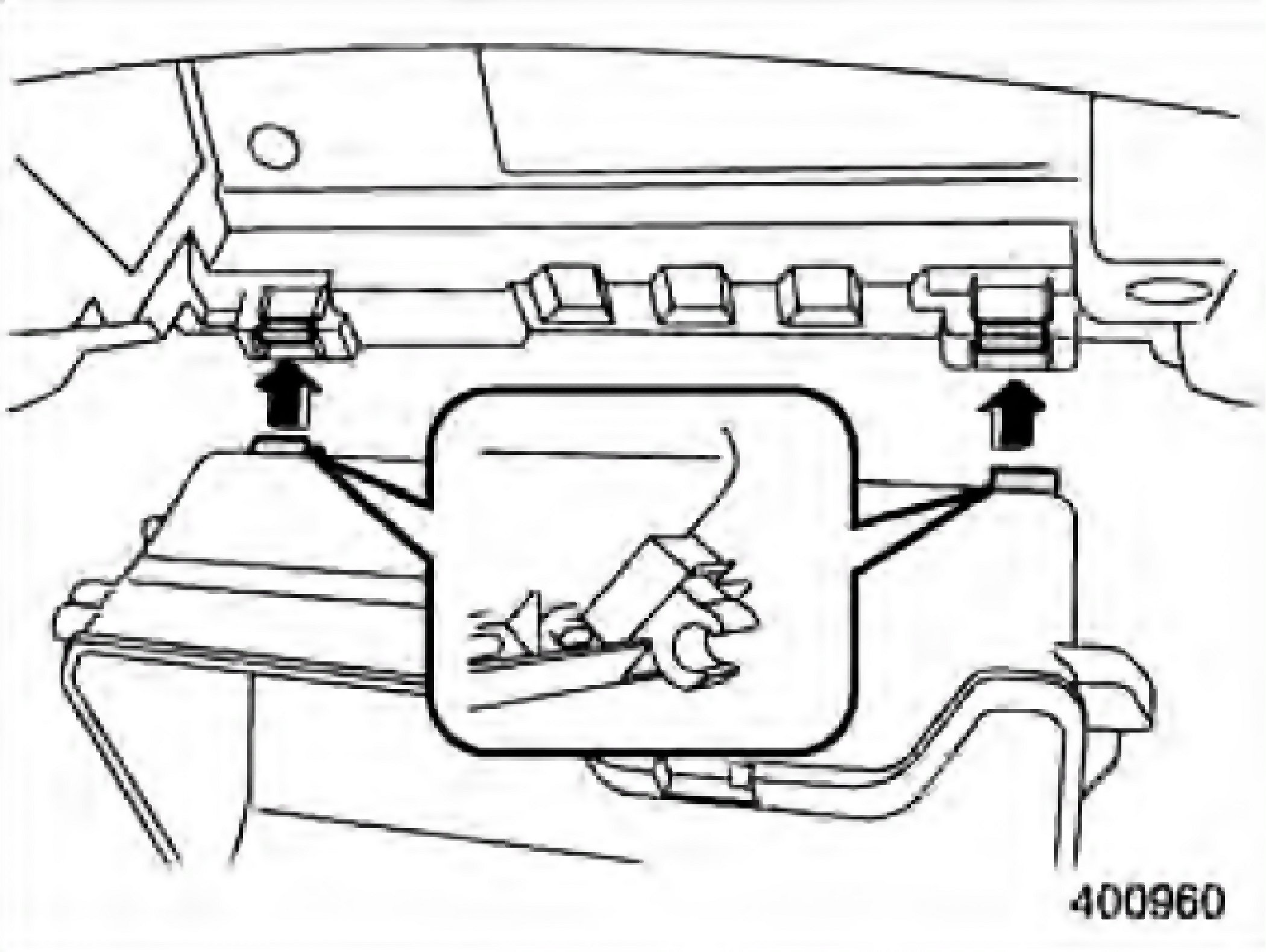

1. Remove the glove box.
(1) Open the glove box.





(2) Remove the damper shaft from the glove box.





(3) Pull out the glove box.

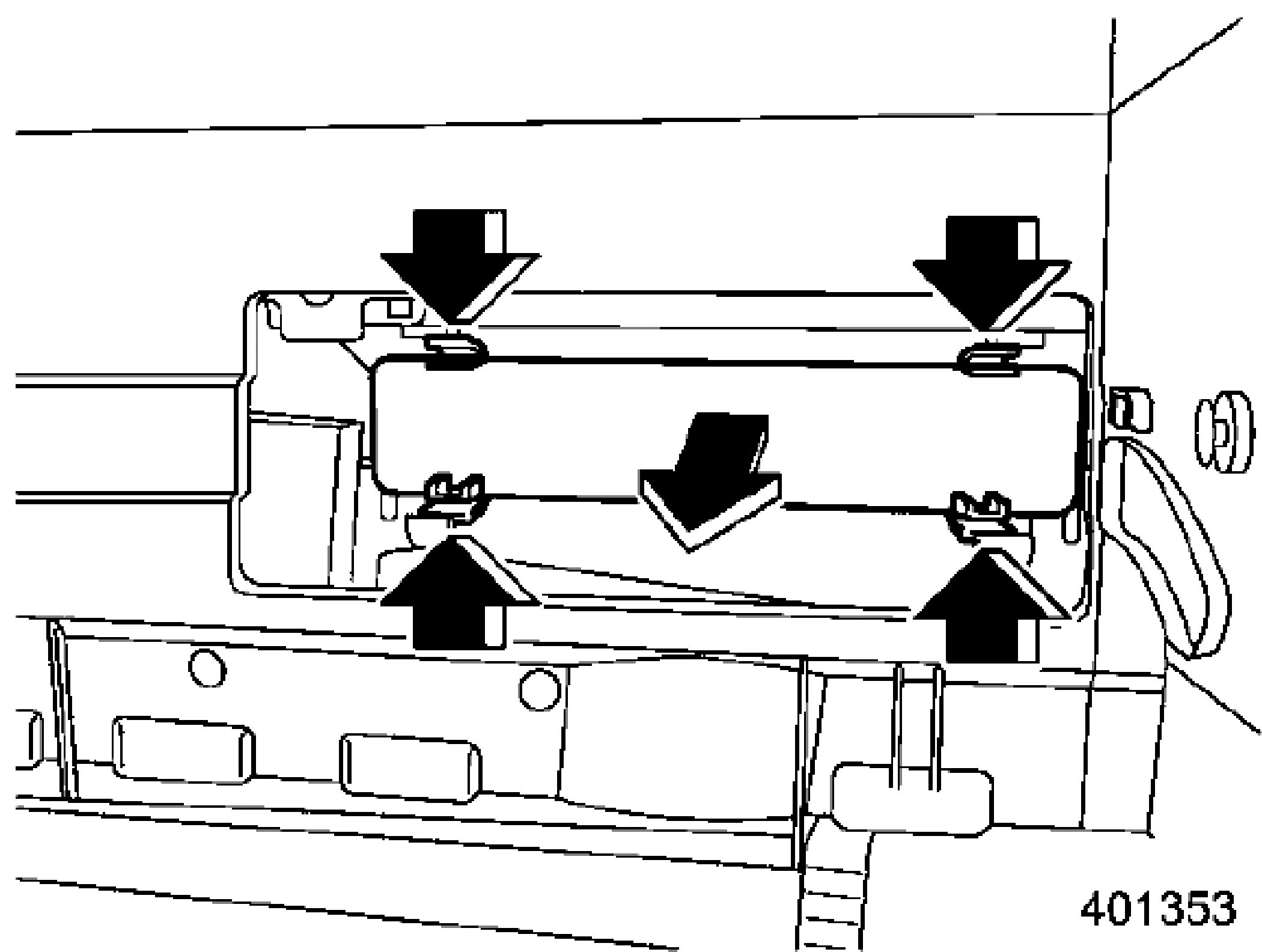

2. Remove the cover of the air filter.

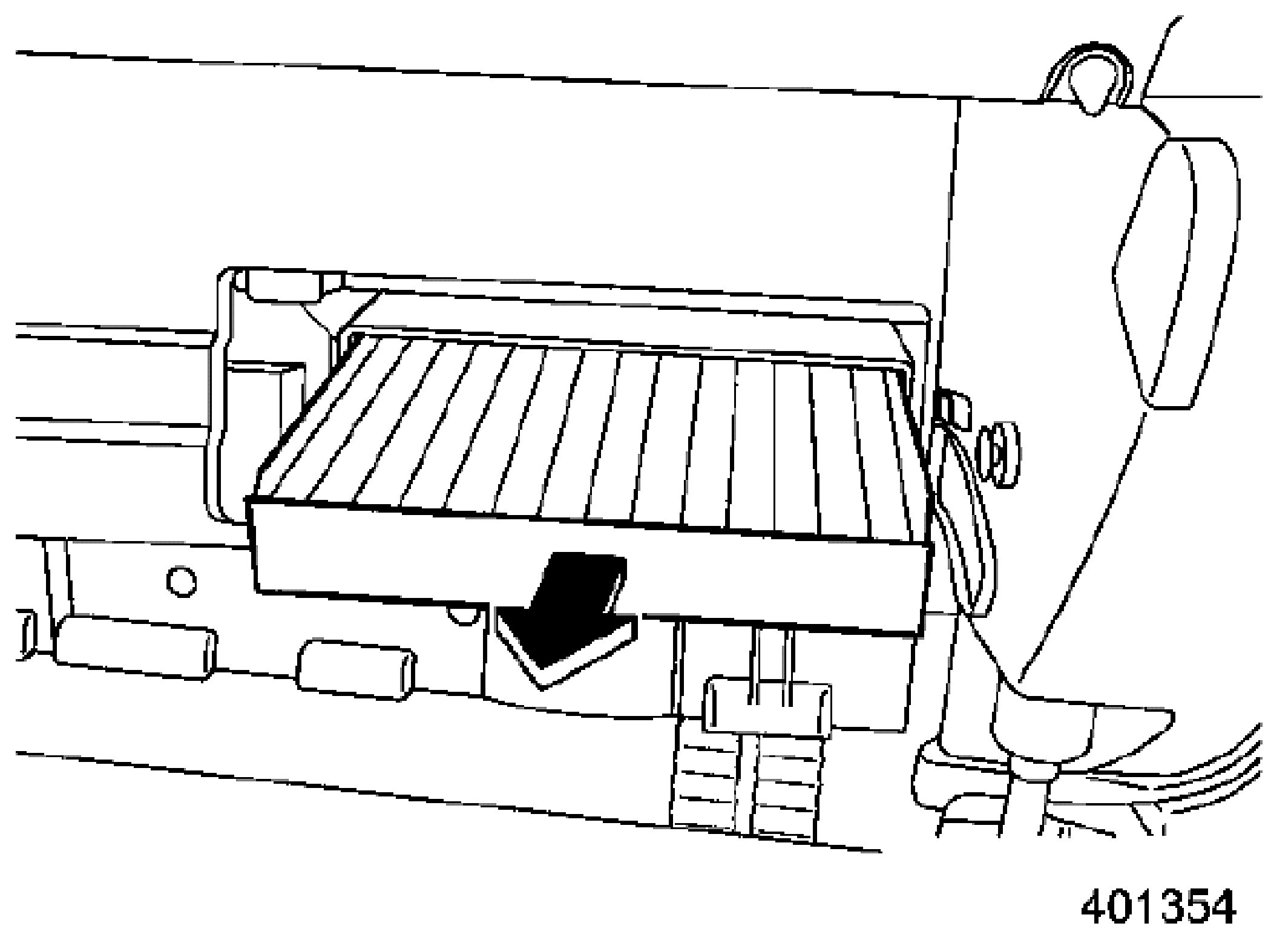

3. Remove the air filter.

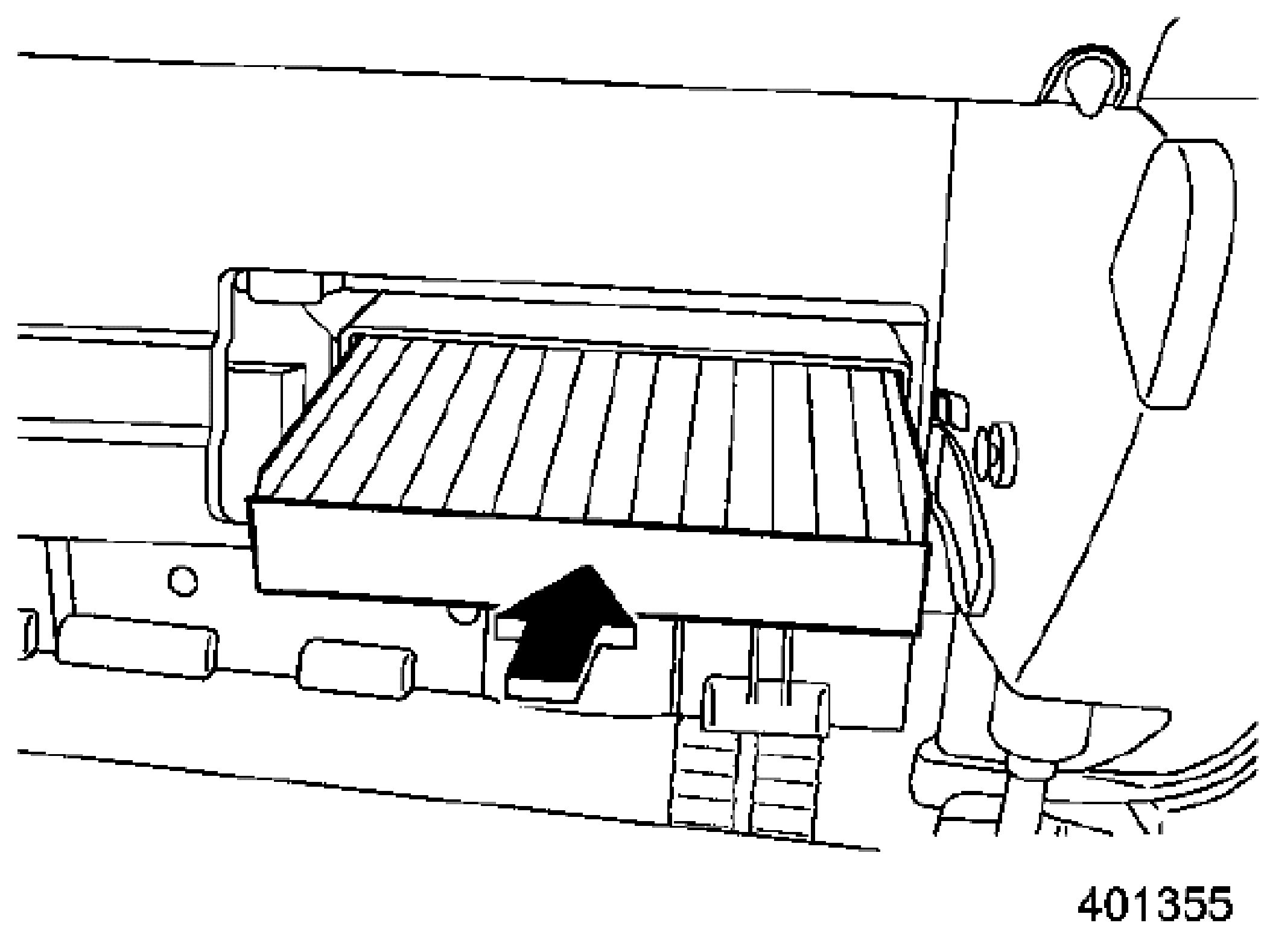

4. Replace the air filter element with a new one.

Caution: The arrow mark on the air filter must point UP.

5. Reinstall the cover of the air filter.





6. Reinstall the glove box, and connect the damper shaft.

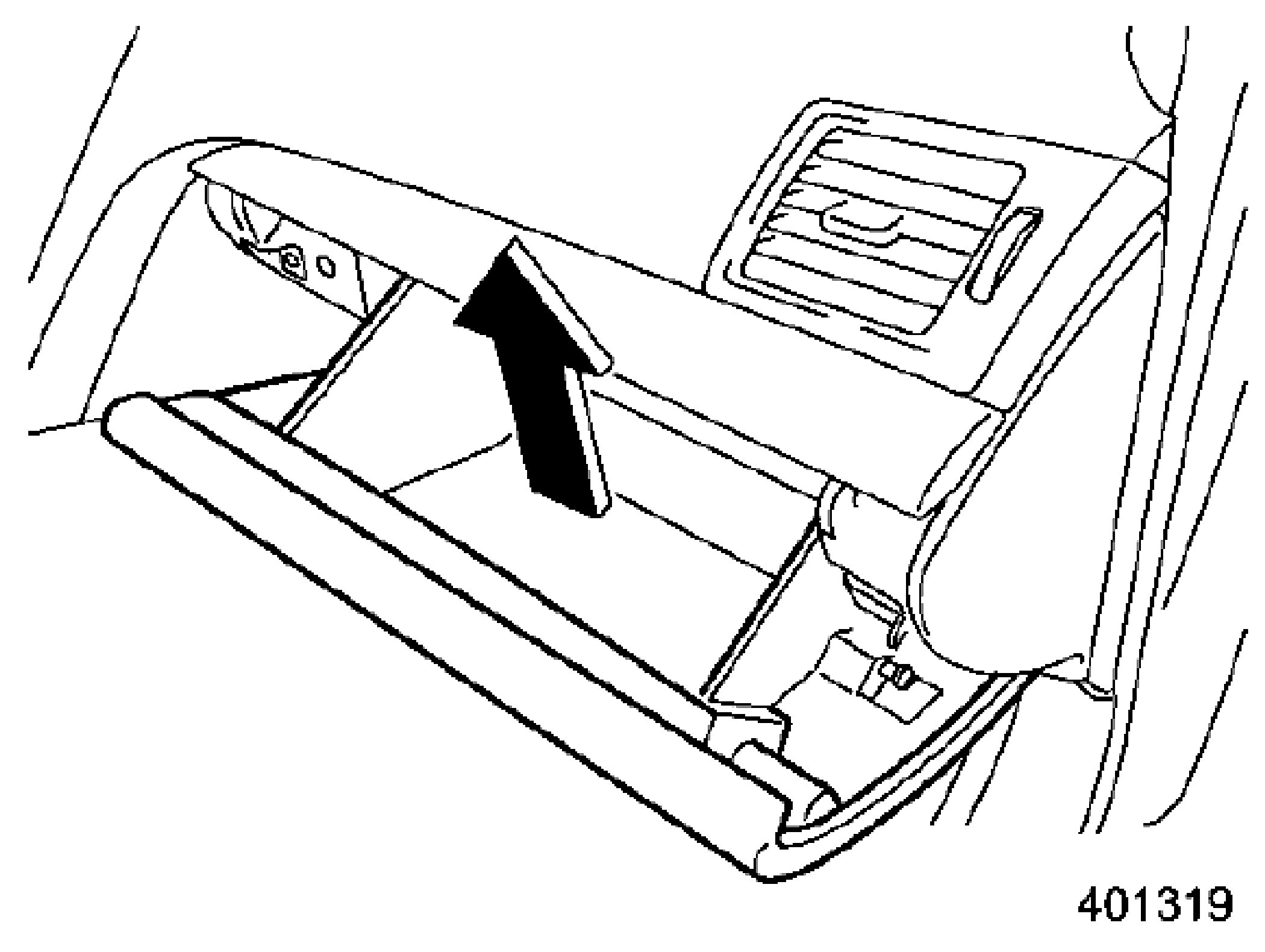

7. Close the glove box.
