Fuel Injector: Service and Repair
Fuel InjectorREMOVAL 1.
Release the
fuel pressure.
2.
Disconnect the ground cable from battery.
3.
Open the fuel filler lid and remove the fuel filler cap.
4.
Remove the intake manifold.
5.

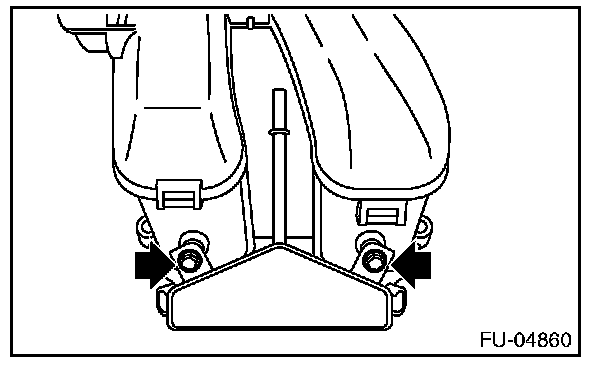

Remove the bolts securing the fuel gallery to intake manifold.
6.
Remove the
fuel injector while lifting up the fuel gallery.
INSTALLATIONInstall in the reverse order of removal.
NOTE: Use new O-rings.
