Fuel Temperature Sensor: Testing and Inspection
Fuel Temperature SensorINSPECTION 1.
Check the
fuel temperature sensor for deformation, cracks or other damages.
2.

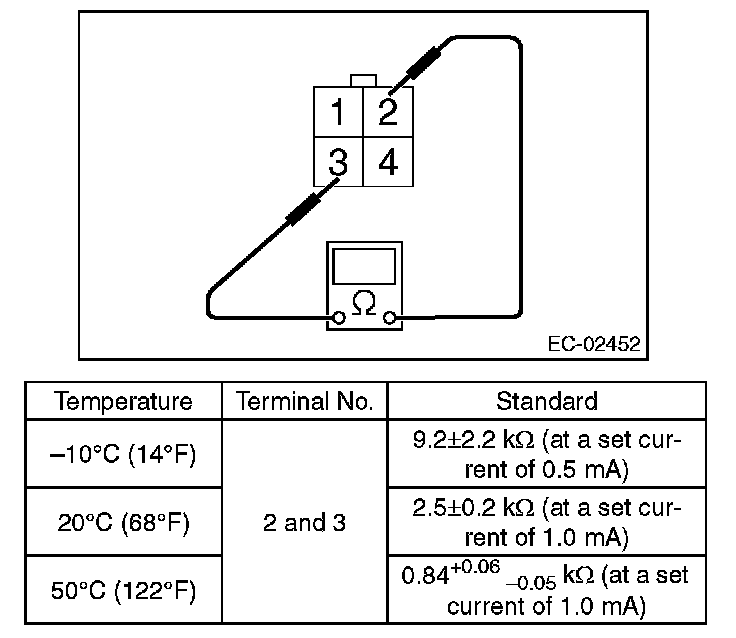

Measure the resistance between
fuel temperature sensor terminals.
CAUTION: Make sure of the circuit tester spec and do not apply a voltage of 3 V or more when measuring the resistance. Otherwise the fuel temperature sensor will be damaged.
