Removal

A/T Shift Lock Solenoid and "P" Range Switch

REMOVAL

SOLENOID UNIT
1) Remove the AT select lever.
2) Remove the spacer and gasket.

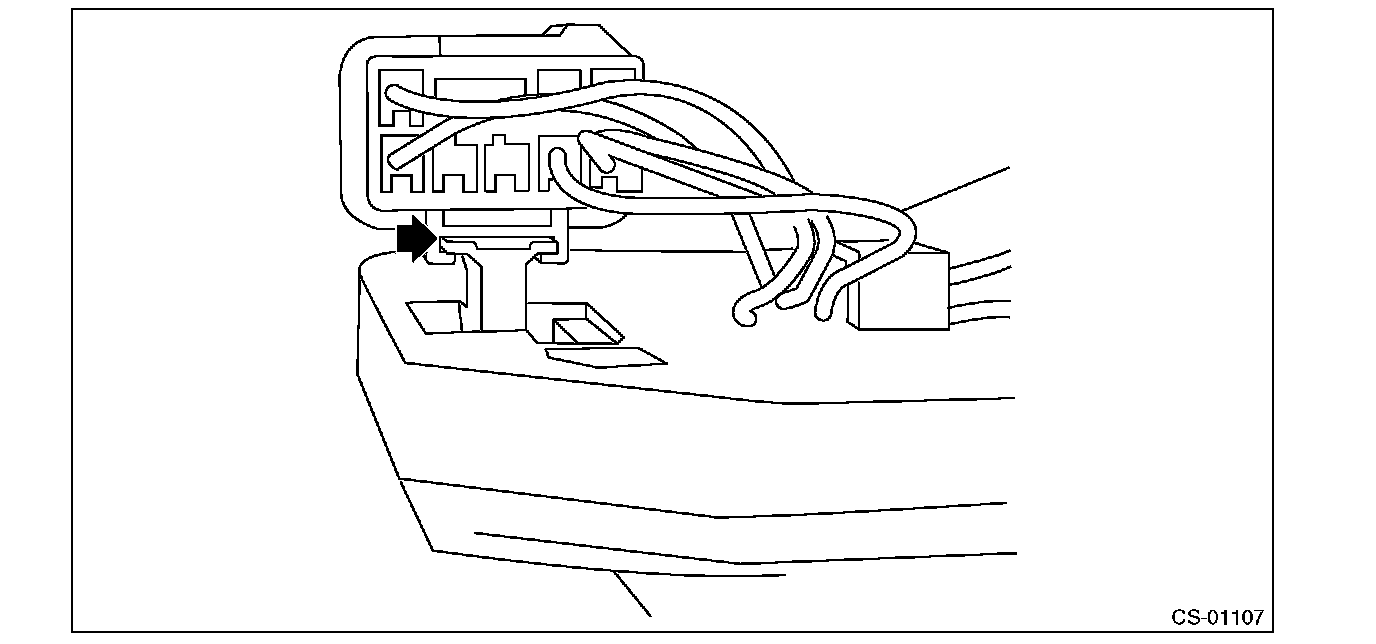

3) Using a flat tip screwdriver with a thin tip, remove the harness connector from the plate COMPL.

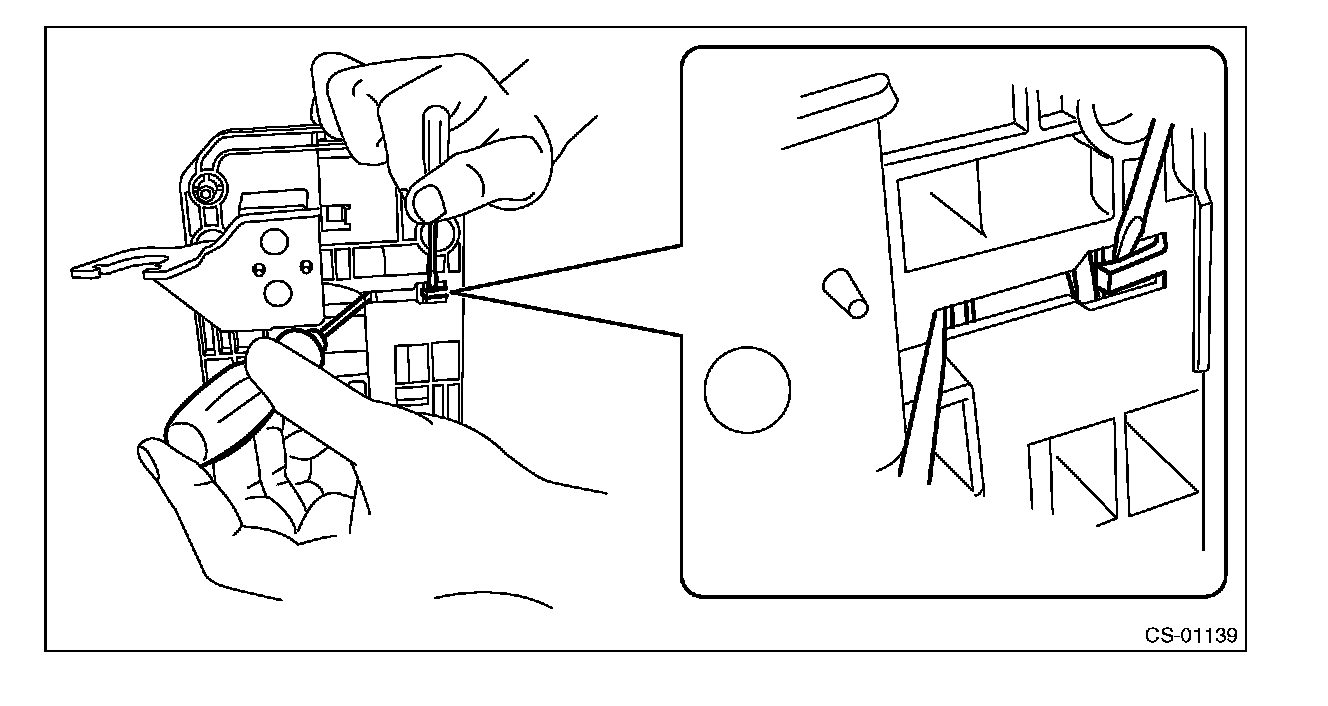

4) Raise the claw using a flat tip screwdriver with a thin tip, and remove the solenoid unit from the plate COMPL.

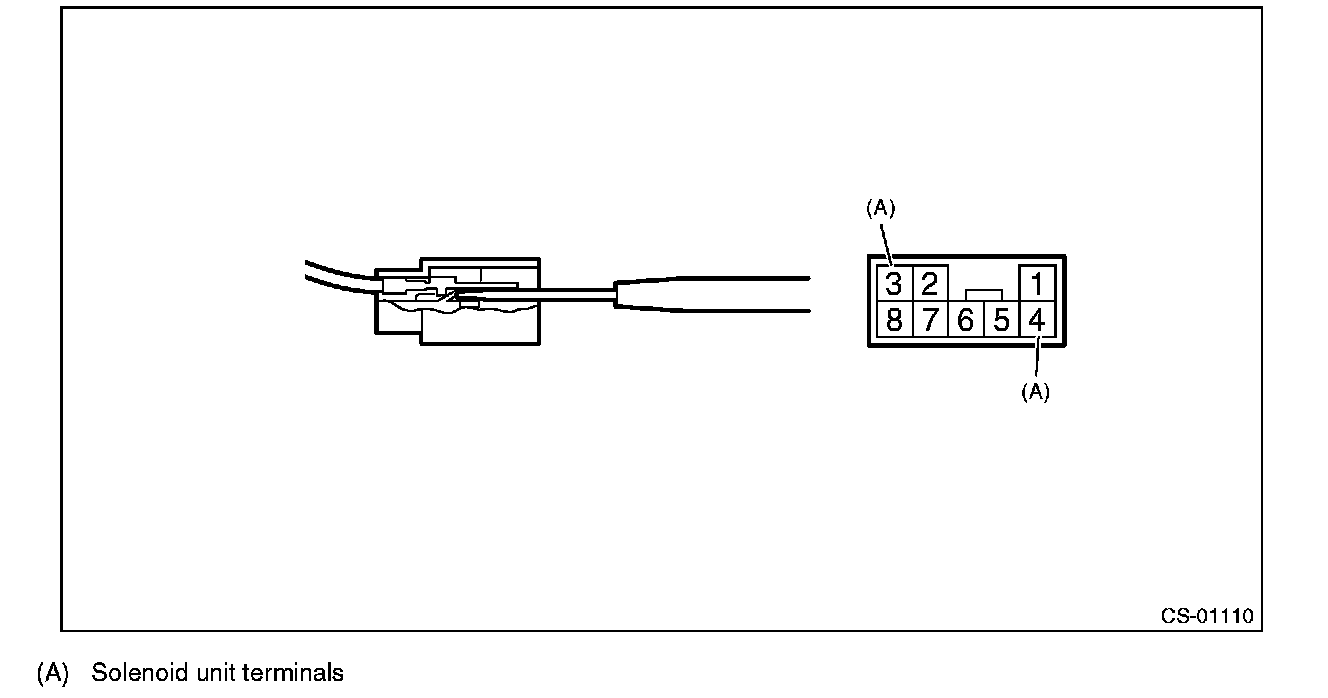

5) Using a flat tip screwdriver with a thin tip, remove the solenoid unit terminals from the harness connector.





"P" RANGE SWITCH
For the removal of "P" range switch, refer to the procedure for AT select lever.
