Disassembly

Steering Wheel A/T Steering Shift Switch

DISASSEMBLY

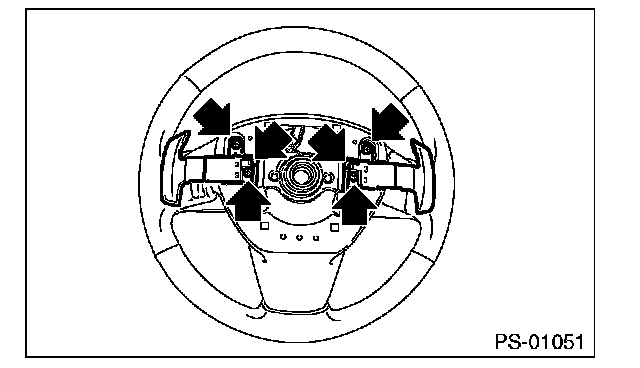

1) Remove the connector and screws and remove the paddle shift.





2) Remove the hook, and then remove the switch panel and lower cover.
