Transmission Cooler: Service and Repair
CVT Oil CoolerREMOVAL 1)
Remove the front bumper.
2)
Remove the headlight assembly (LH).
3)

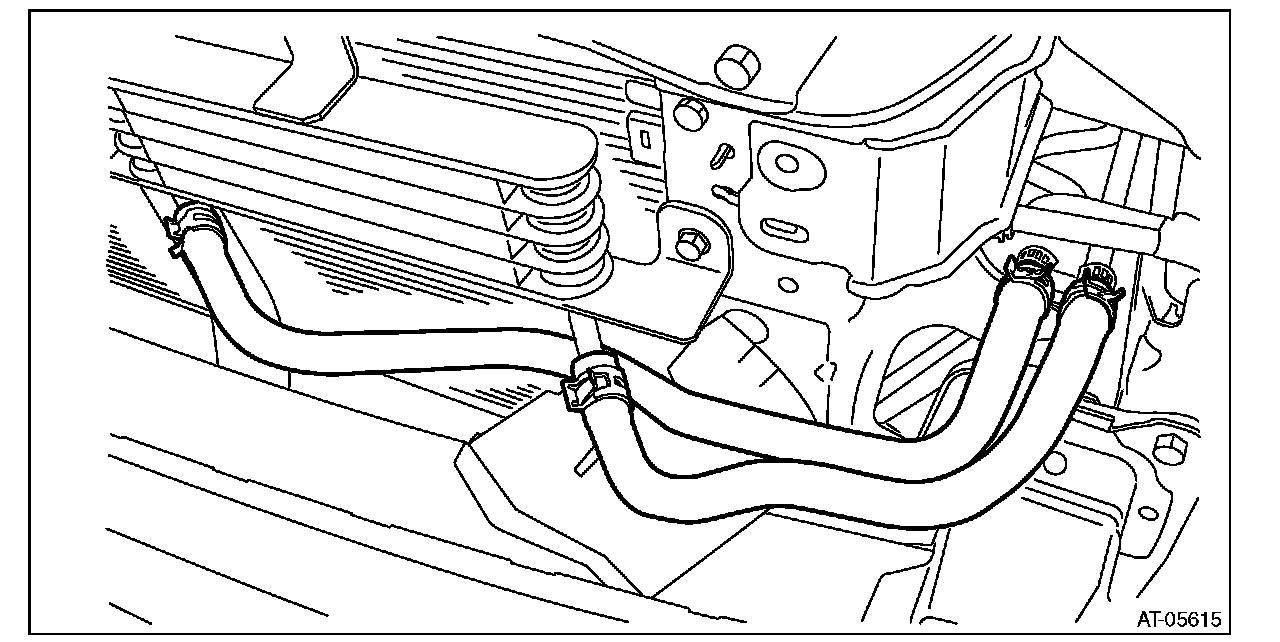

Remove the inlet hose and outlet hose.
4)

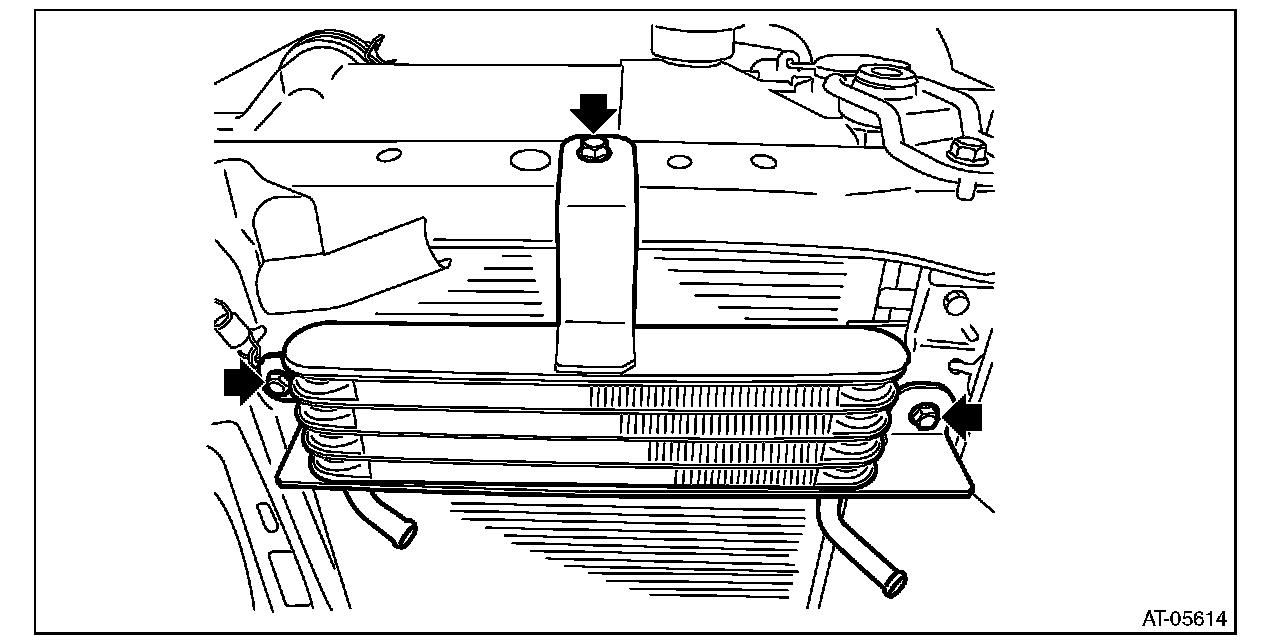

Remove the CVTF oil cooler.
INSTALLATION Install in the reverse order of removal.
Tightening torque:
7.5 Nm (0.76 kgf-m, 5.5 ft-lb)
NOTE: Use the new inlet hose and outlet hose.
