Secondary Speed Sensor Replacement
Secondary Speed SensorREMOVAL
CAUTION:
Be sure to prevent water or oil from contacting the connector terminal of secondary speed sensor. If adhesion occurs, replace with a new part.
1) Remove the transmission from the vehicle.

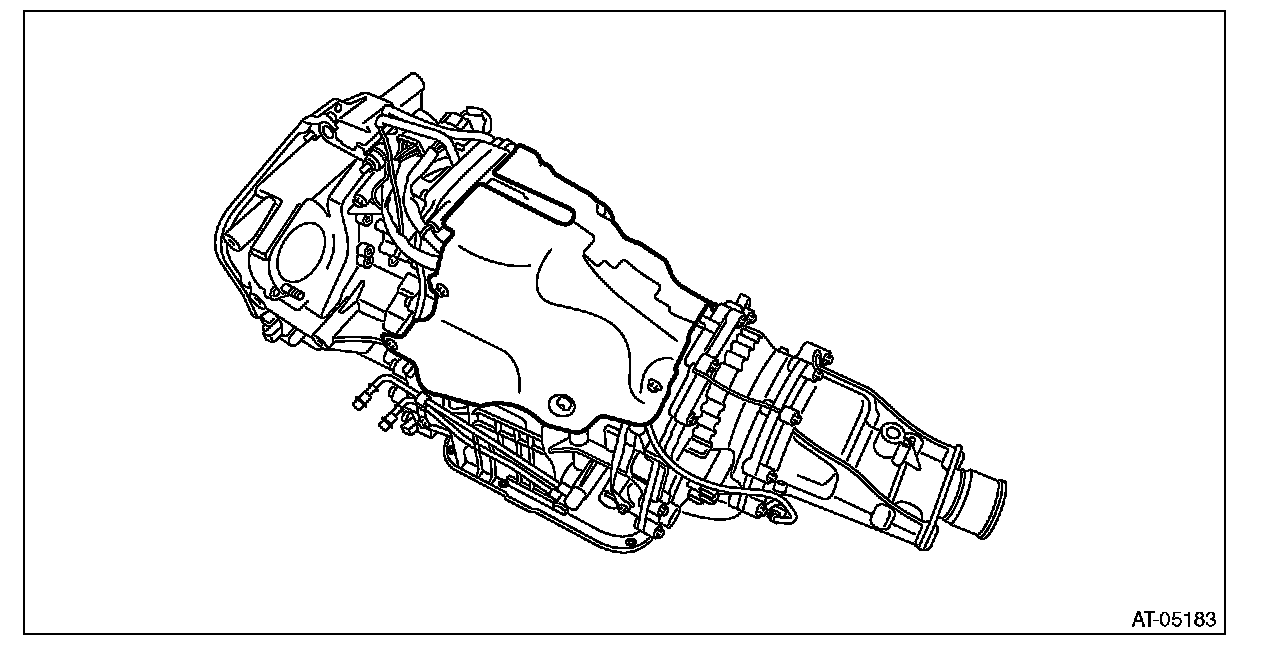

2) Remove the transmission cover on the transmission upper side.

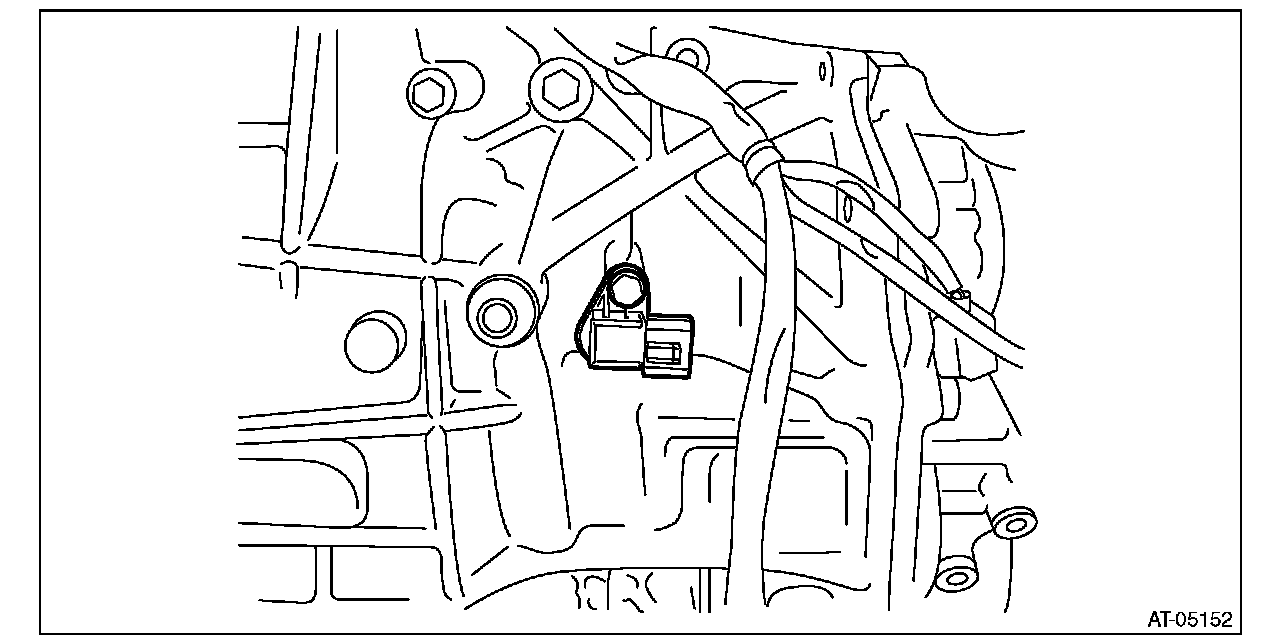

3) Remove the harness connector from secondary speed sensor.
4) Remove the secondary speed sensor.
INSTALLATION
CAUTION:
Be sure to prevent water or oil from contacting the connector terminal of secondary speed sensor. If adhesion occurs, replace with a new part. Install in the reverse order of removal.
NOTE:
^ Use new O-rings.
^ Apply CVTF to the O-ring.
Tightening torque:
Secondary speed sensor
5 Nm (0.5 kgf-m, 3.7 ft-lb)
Transmission cover
8 Nm (0.8 kgf-m, 5.9 ft-lb)
