Secondary Speed Sensor Inspection
Secondary Speed SensorINSPECTION 1)
Remove the instrument panel lower cover.
2)

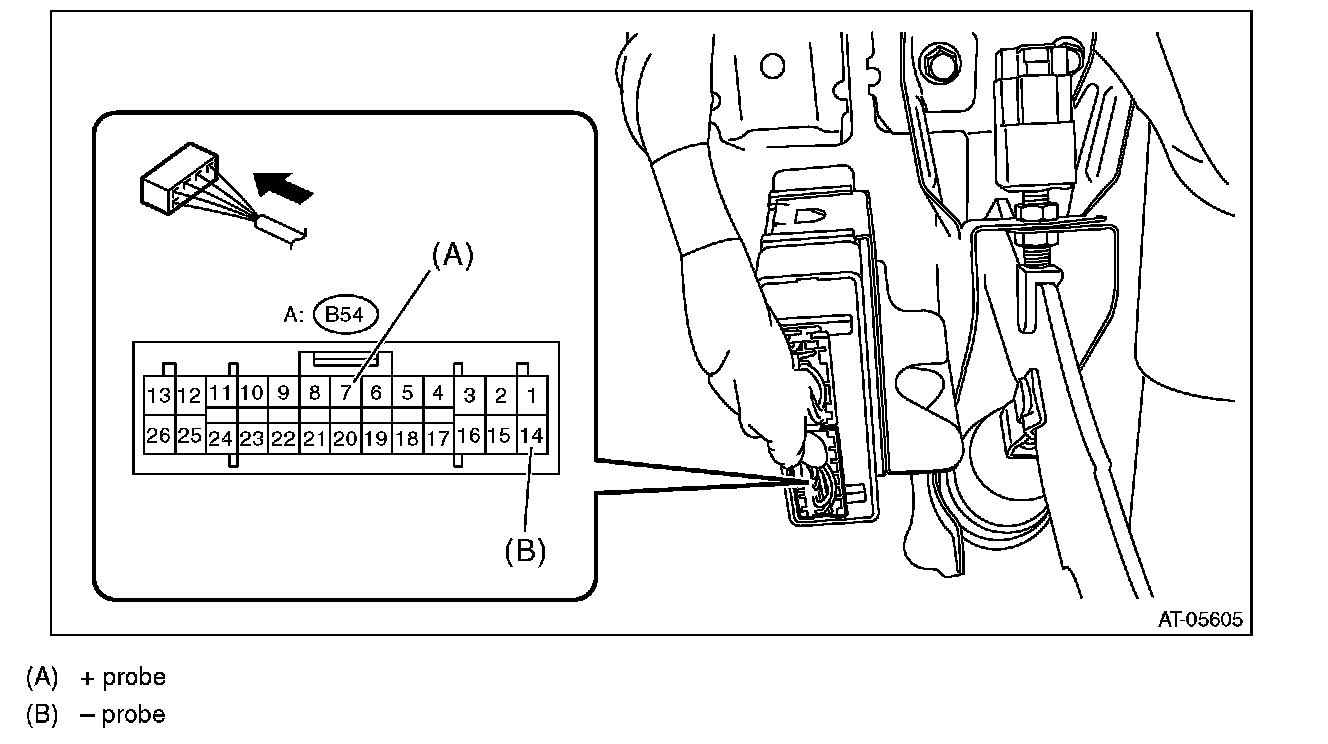

Set the probe of oscilloscope to TCM harness connector.
3)
Start and warm up the engine.
4)
Check the waveform of secondary speed sensor with engine idling.
