Inspection
BACK-UP LIGHT SWITCH & NEUTRAL POSITION SWITCHINSPECTIONBACK-UP LIGHT SWITCH Check the back-up light switch.
NEUTRAL POSITION SWITCH 1)
Turn the
ignition switch to OFF.
2)
Disconnect the connector of neutral position switch.
3)

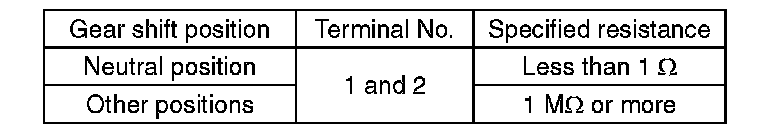

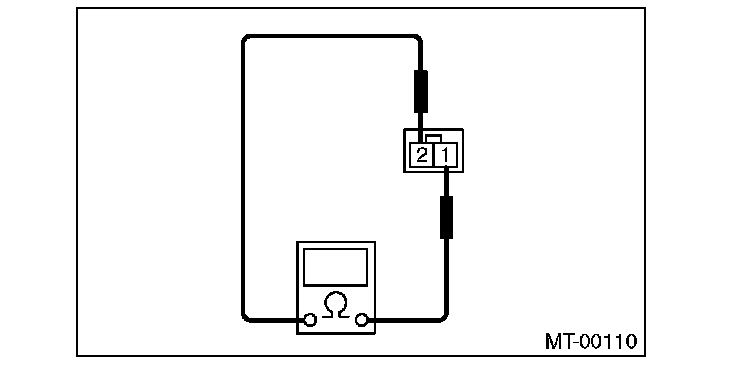

Measure the resistance between neutral position switch terminals.
4)
Replace faulty parts.
