Installation

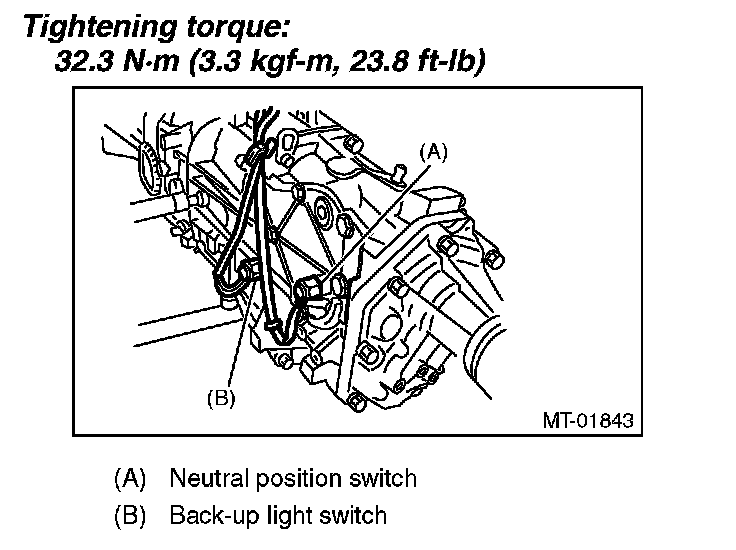

BACK-UP LIGHT SWITCH & NEUTRAL POSITION SWITCH

INSTALLATION
1) Install the back-up light switch and neutral position switch together with harness.

2) Lower the vehicle.
3) Connect the connector of back-up light switch and neutral position switch.
4) Install the air intake boot assembly. (non-turbo model)
5) Install the intercooler. (turbo model)
6) Install the collector cover.
7) Connect the ground cable to battery.
