Radiator Cooling Fan Control Module: Service and Repair
Radiator Fan Control UnitREMOVAL 1)
Disconnect the ground cable from battery.
2)
Remove the radiator fan
control unit.
1)

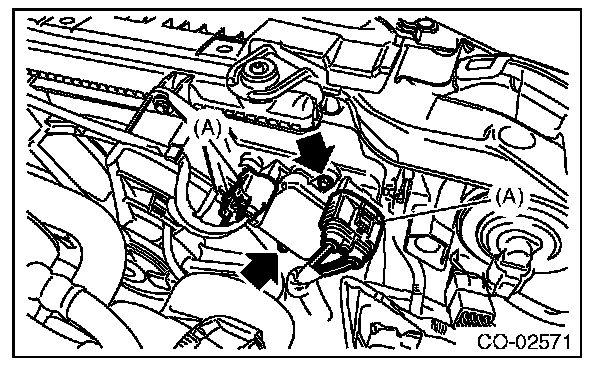

Disconnect the connector (A) from the radiator fan
control unit.
2)
Remove screws which secure the radiator fan
control unit.
INSTALLATION Install in the reverse order of removal.
Tightening torque:
2.6 Nm (0.3 kgf-m, 1.9 ft-lb)
