Rear Door Window Regulator: Service and Repair
REAR REGULATOR AND MOTOR ASSEMBLYREMOVAL 1.
Remove the rear door glass.
2.
Disconnect the motor connector.
3.

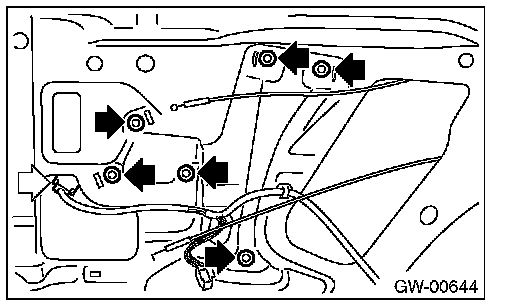

Remove six bolts to remove the rear regulator and motor assembly.
INSTALLATIONInstall in the reverse order of removal.
Tightening torque:
Refer to "COMPONENT" of "General Description". {Ref. to REAR DOOR GLASS, COMPONENT, General Description.}
