Symptom Related Diagnostic Procedures
INSPECTIONCOMMUNICATION FOR INITIALIZING IMPOSSIBLEDETECTING CONDITION:Defective harness connector
TROUBLE SYMPTOM:Not communicable with Subaru Select Monitor.

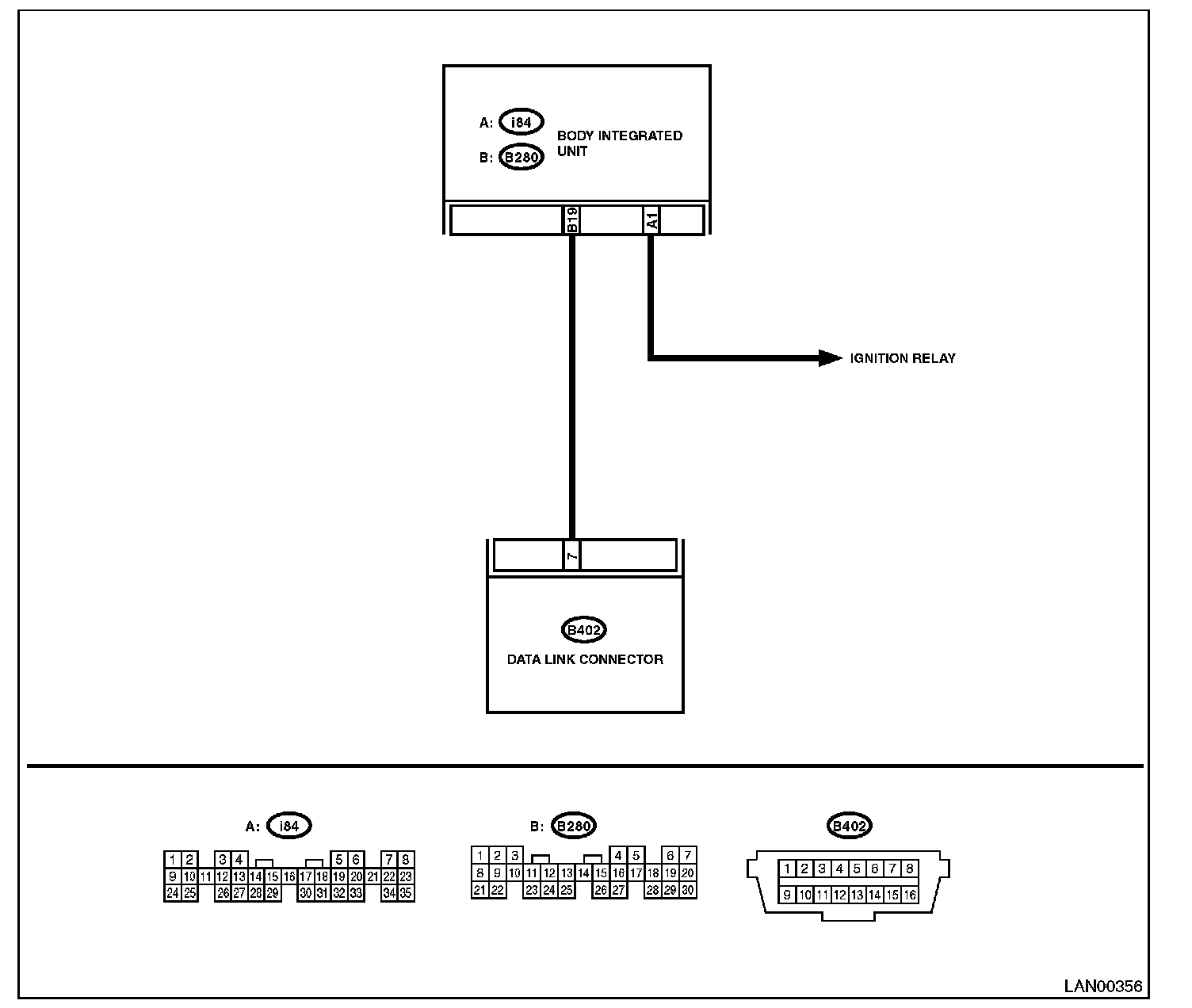

WIRING DIAGRAM:Wiring Diagram:

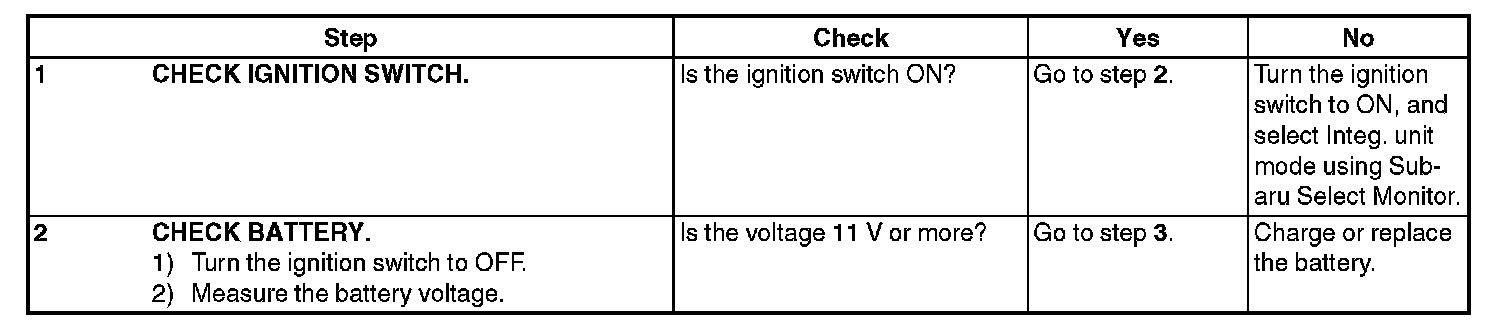

Step 1-2:

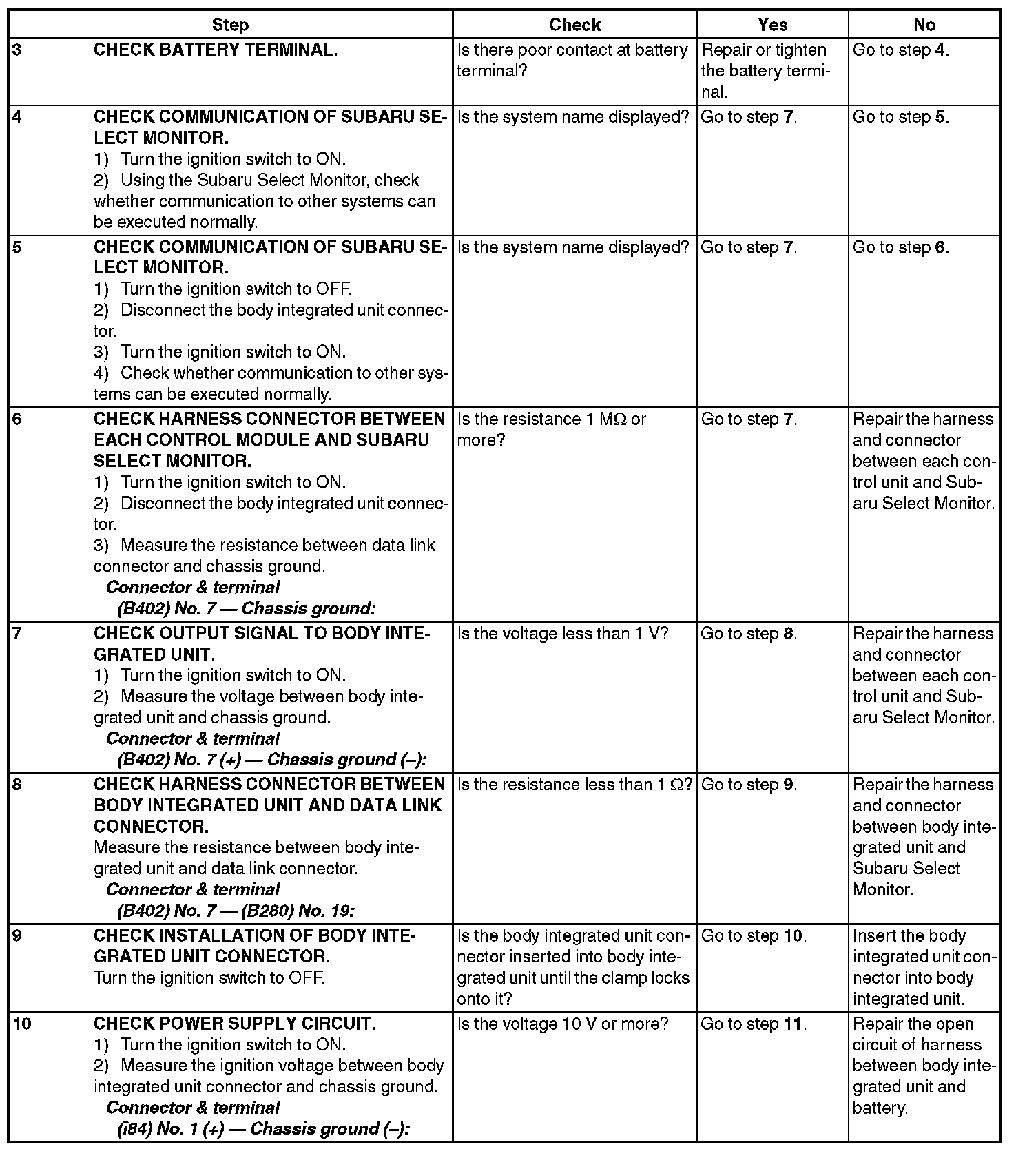

Step 3-10:

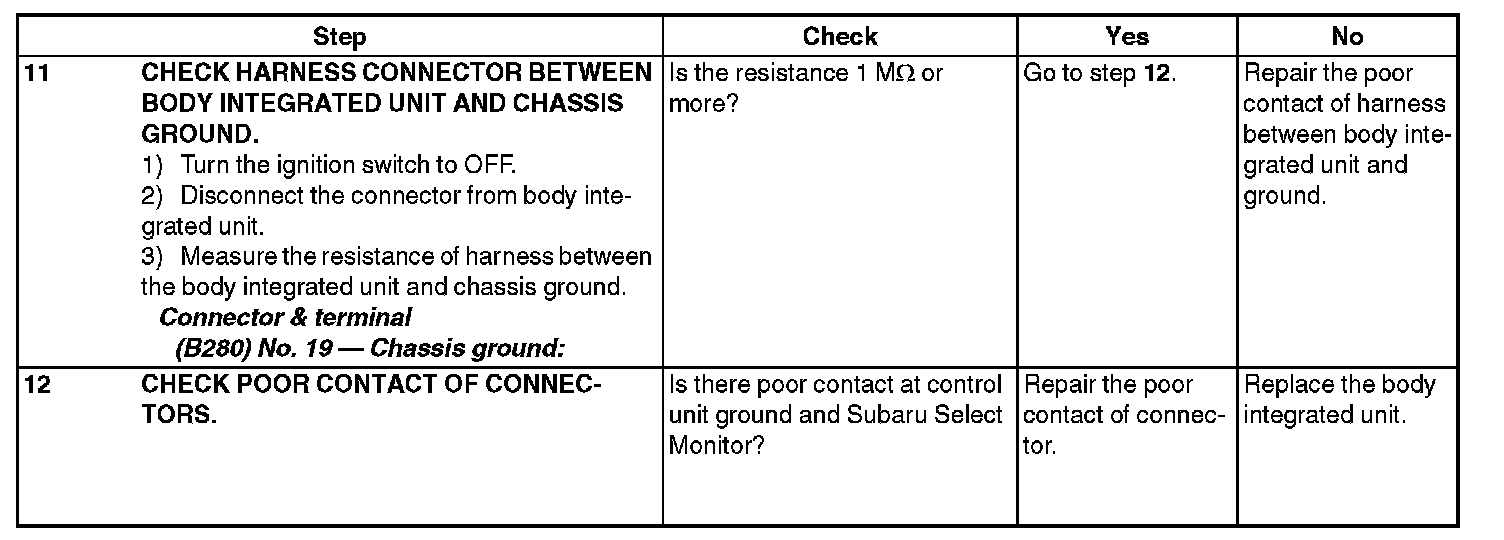

Step 11-12:
CAUTION: When replacing body integrated unit on the model with immobilizer system, refer to the "PC application help for Subaru Select Monitor"
