Read Current Data

Subaru Select Monitor

OPERATION

READ CURRENT DATA

1) On [[Main Menu]] display, select (Each System Check).
2) On [[System Selection Menu]] display, select (Transmission Control System).
3) After transmission type information pops up, select [OK].
4) On [[Transmission Diagnosis]] display, select (Current Data Display & Save).
5) On [[Current Data Display & Save]] display, select (Normal sampling).
6) Using the scroll key, scroll the display screen up or down until the desired data is shown.

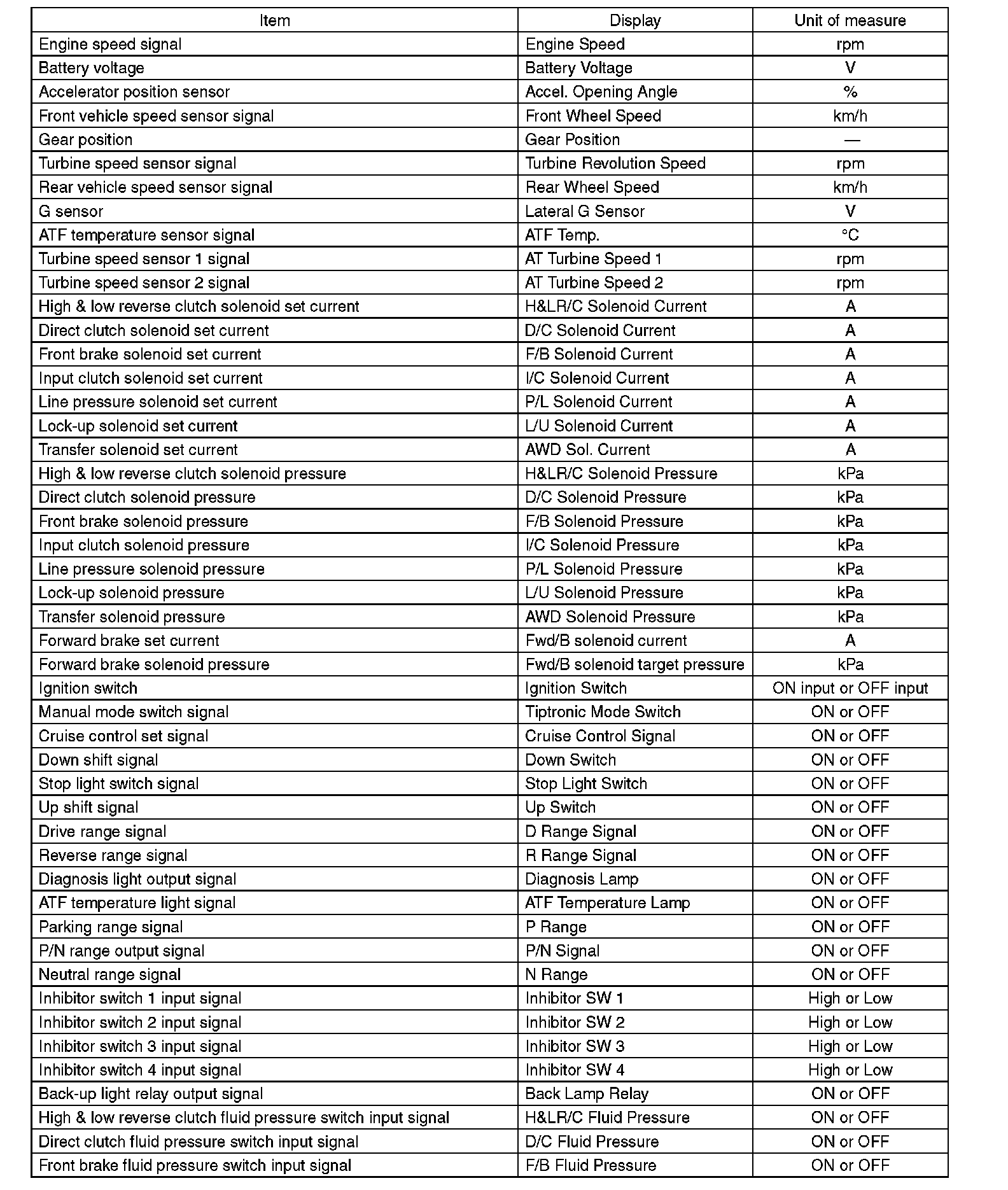

^ A list of the support data is shown in the following table.








NOTE:
For details concerning the operation procedure, refer to "PC application help for Subaru Select Monitor".
