Installation

Installation





1. Installation of front crossmember SUB-ASSY

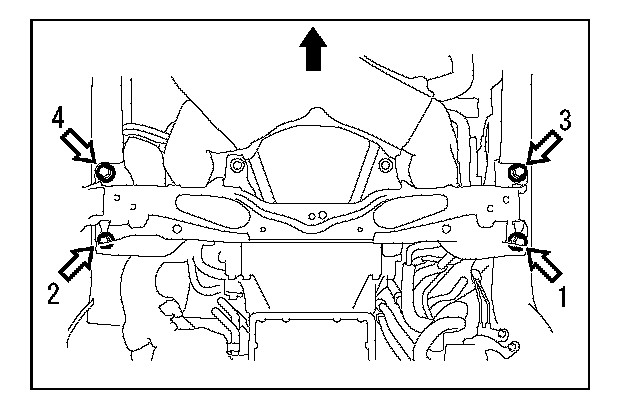

(1) Install four new bolts in the order shown in the figure to temporarily install the front crossmember SUB-ASSY.

Captions in illustration





(2) Fully tighten the four bolts.
Standard value:T=95Nm {969kgf-cm} {70.1ft-lbf}
2. Adjustment of shift lever position (automatic transmission)

CAUTION:
If the mounting bolts of the front crossmember SUB-ASSY have become even slightly loose, check the adjustment of the shift lever.

3. Installation of rack & pinion power steering gear ASSY
4. Installation of sub frame complete (body mounting cushion SUB-ASSY RR) LH
5. Installation of sub frame complete (body mounting cushion SUB-ASSY RR) RH

NOTE:
Service the RH side in the same procedure as the LH side.

6. Installation of front stabilizer link ASSY LH
7. Installation of front stabilizer link ASSY RH

NOTE:
Service the RH side in the same procedure as the LH side.

8. Installation of front suspension lower arm ASSY LH
9. Installation of front suspension lower arm ASSY RH

NOTE:
Service the RH side in the same procedure as the LH side.

10. Removal of engine hanger
11. Inspection and adjustment of front wheel alignment
