Removal

Removal

1. Installation of engine hanger
2. Removal of front suspension lower arm ASSY LH
3. Removal of front suspension lower arm ASSY RH

NOTE:
Service the RH side in the same procedure as the LH side.

4. Disconnection of front stabilizer link ASSY LH
5. Disconnection of front stabilizer link ASSY RH

NOTE:
Service the RH side in the same procedure as the LH side.

6. Removal of sub frame complete (body mounting cushion SUB-ASSY RR) LH
7. Removal of sub frame complete (body mounting cushion SUB-ASSY RR) RH

NOTE:
Service the RH side in the same procedure as the LH side.

8. Removal of rack & pinion power steering gear ASSY





9. Removal of front crossmember SUB-ASSY

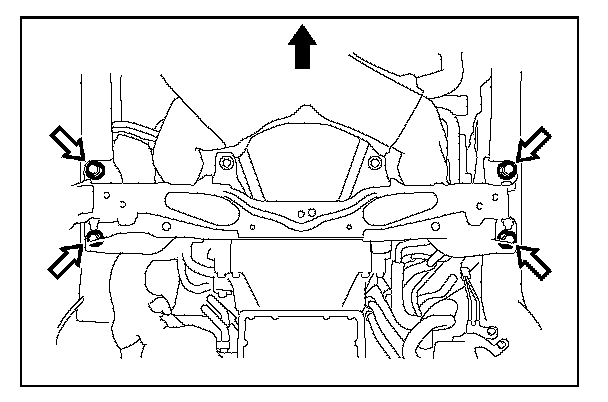

(1) Remove the four bolts, and remove the front crossmember SUBASSY.
