Removal
Removal 1.
Removal of front strut tower bar (front upper
suspension to cowl brace SUB-ASSY) RH
(1)

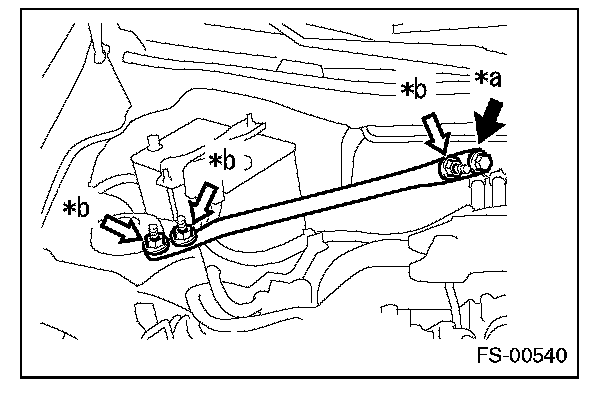

Remove the bolt and three nuts, and remove the front strut tower bar (front upper
suspension to cowl brace SUB-ASSY) RH.

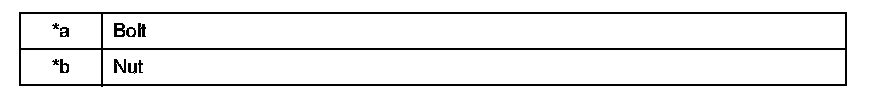

Captions in illustration
2.
Removal of front strut tower bar (front upper
suspension to cowl brace SUB-ASSY) LH
NOTE: Service the LH side in the same procedure as the RH side.
