Installation
Seat Heater SwitchINSTALLATION 1.
Installation of the seat heater switch
1.

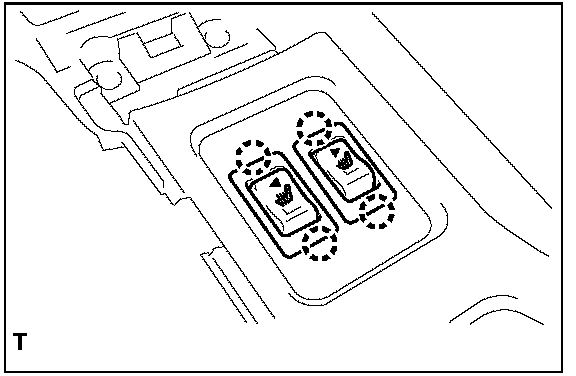

Engage 4 claws and install 2 seat heater switches to the console box ASSY.
NOTE: As shown in the figure, install the switch with the triangle mark pointing the outside of the vehicle.
2.
Installation of the console box ASSY
