Seat Temperature Switch: Testing and Inspection

Seat Heater Switch

Unit Inspection

1. Inspection of the seat heater switch (driver's side)







1. Inspection of the seat heater switch

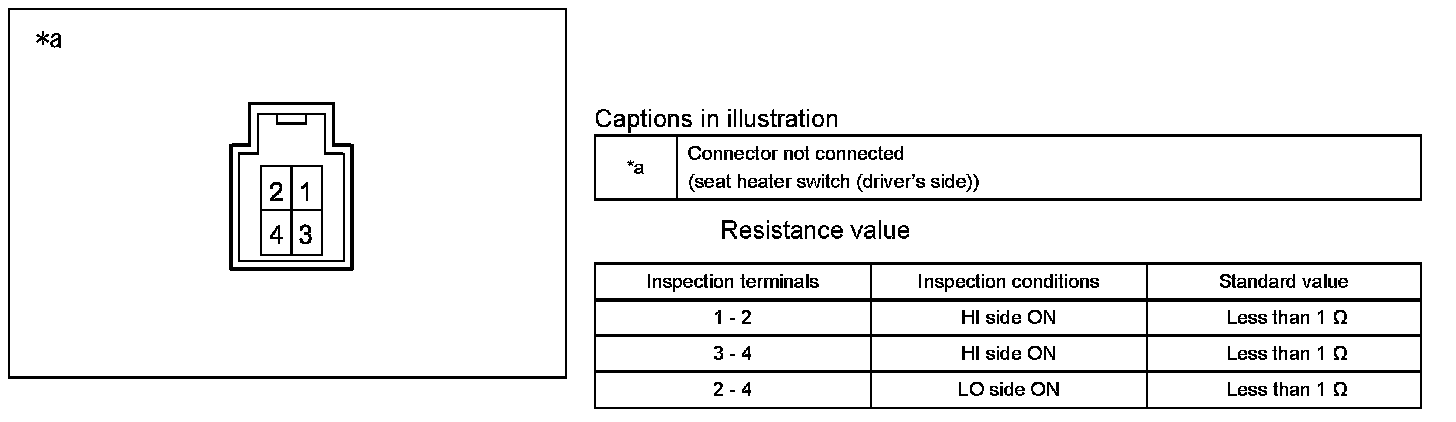

a. Measure the resistance following the table below.

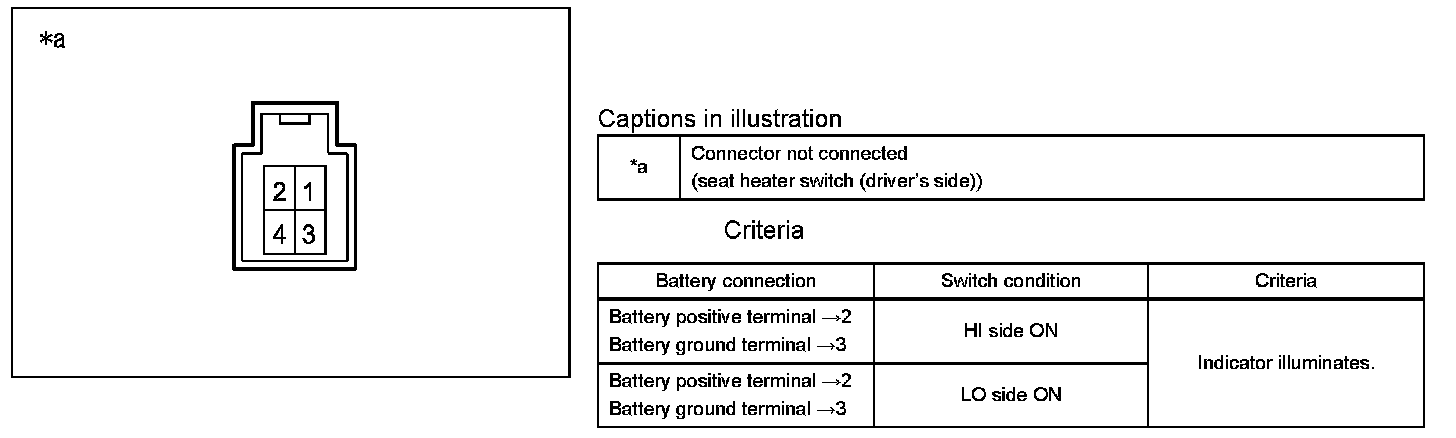

2. Indicator inspection
a. Check that the indicator illuminates when the battery voltage is applied to each connector terminal.

2. Inspection of the seat heater switch (passenger's side)







1. Inspection of the seat heater switch

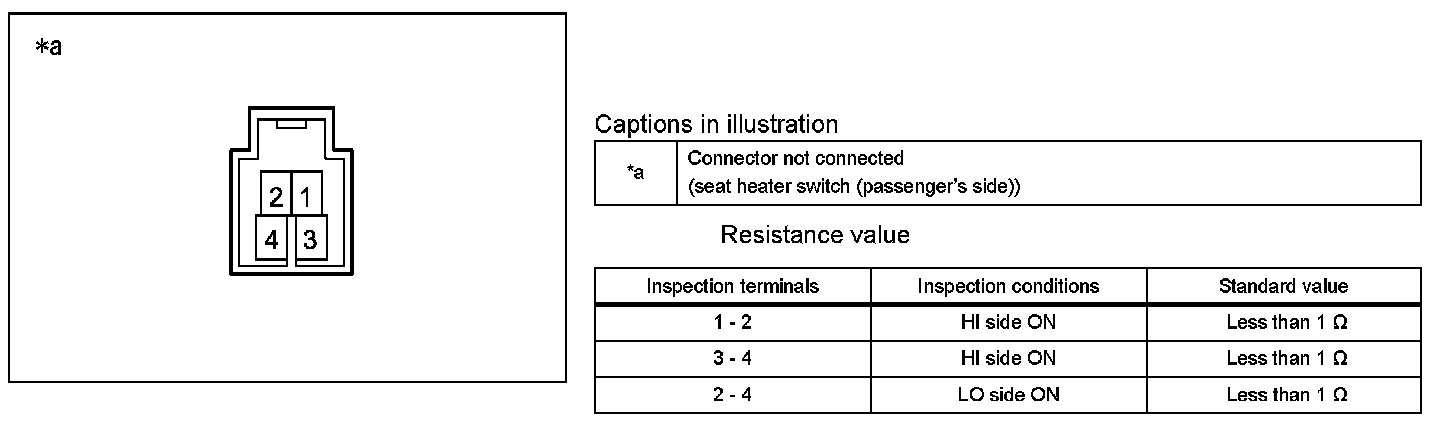

a. Measure the resistance following the table below.

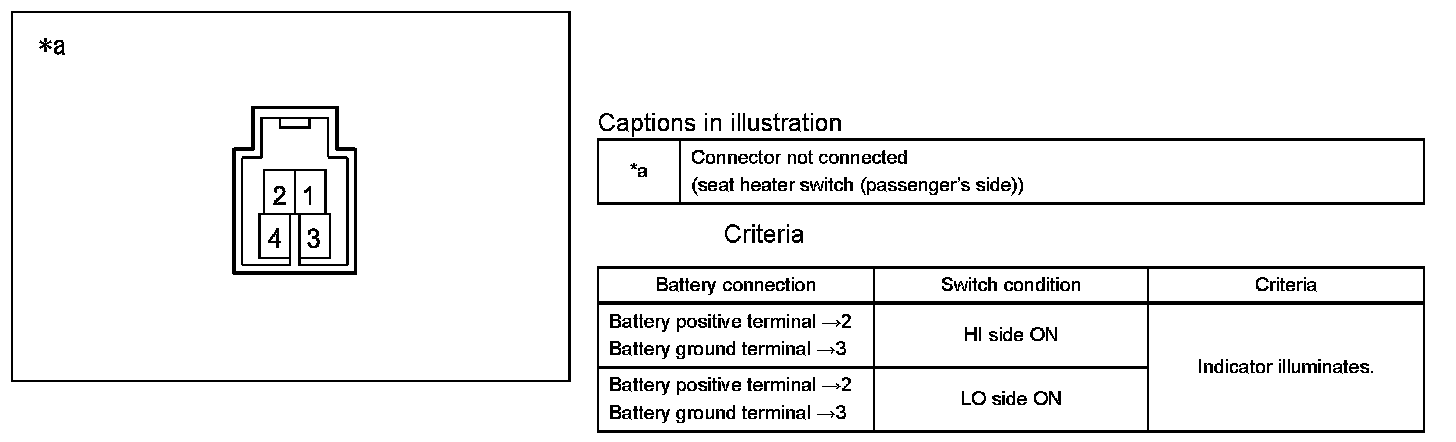

2. Illumination check
a. Check that the LED illuminates when the battery voltage is applied to each connector terminal.
