Removal


Removal

NOTE:
The procedures described below are for the LH side. Perform the same procedures both for the LH side and RH side, unless otherwise specified.

1. Removal of front tire
2. Removal of front mudguard (front fender liner) LH
3. Removal of speed sensor FR LH

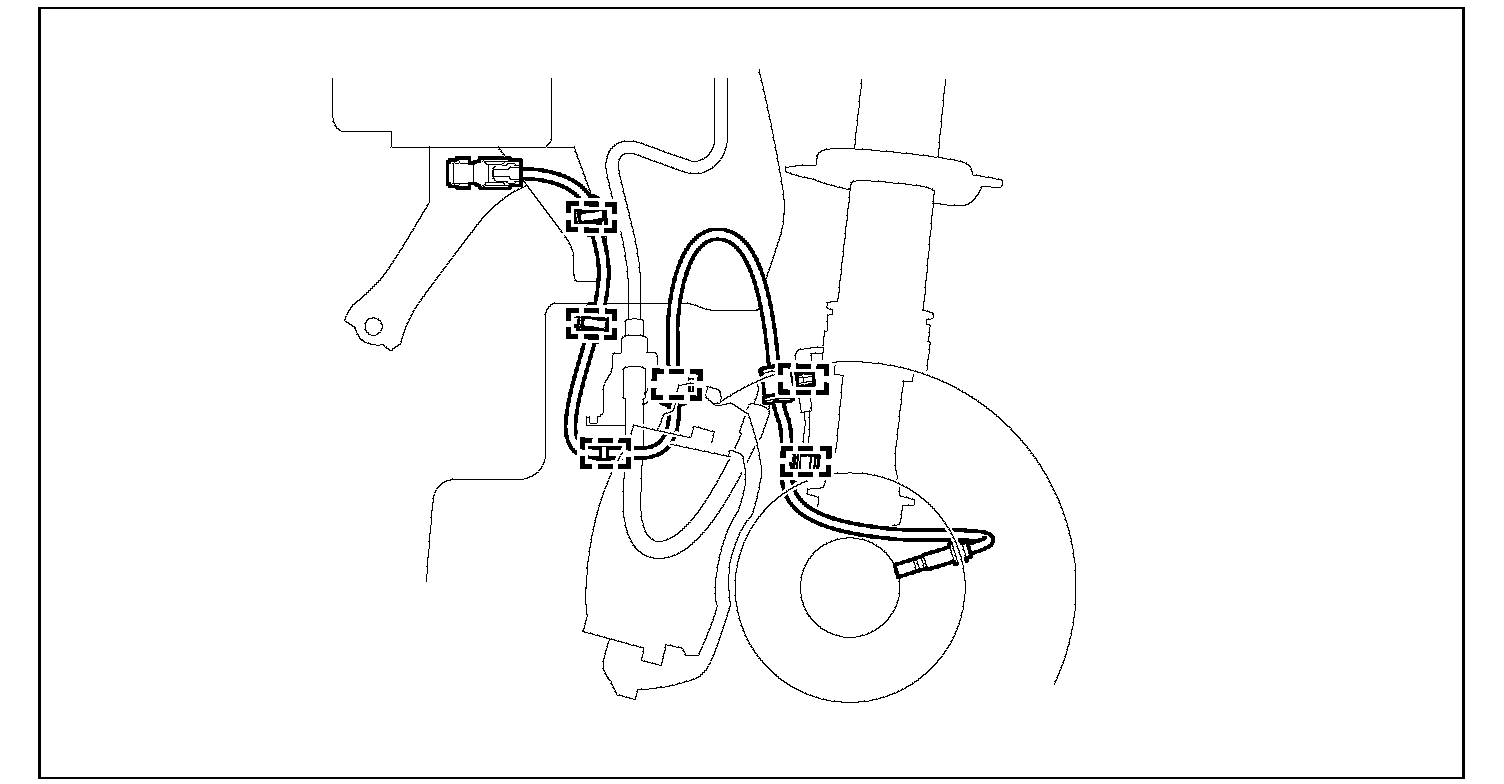

(1) Disconnect the connector.
(2) Disconnect 6 clamps.

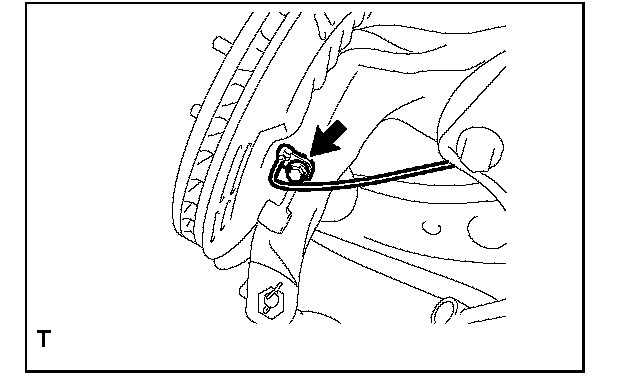

(3) Remove the bolt and the speed sensor FR LH.

CAUTION:
Do not let foreign matter stick to the installation part and the tip of the speed sensor FR LH.
