Removal

Removal

NOTE:
The procedures described below are for the LH side. Perform the same procedures for the RH side.

1. Removal of rear tire

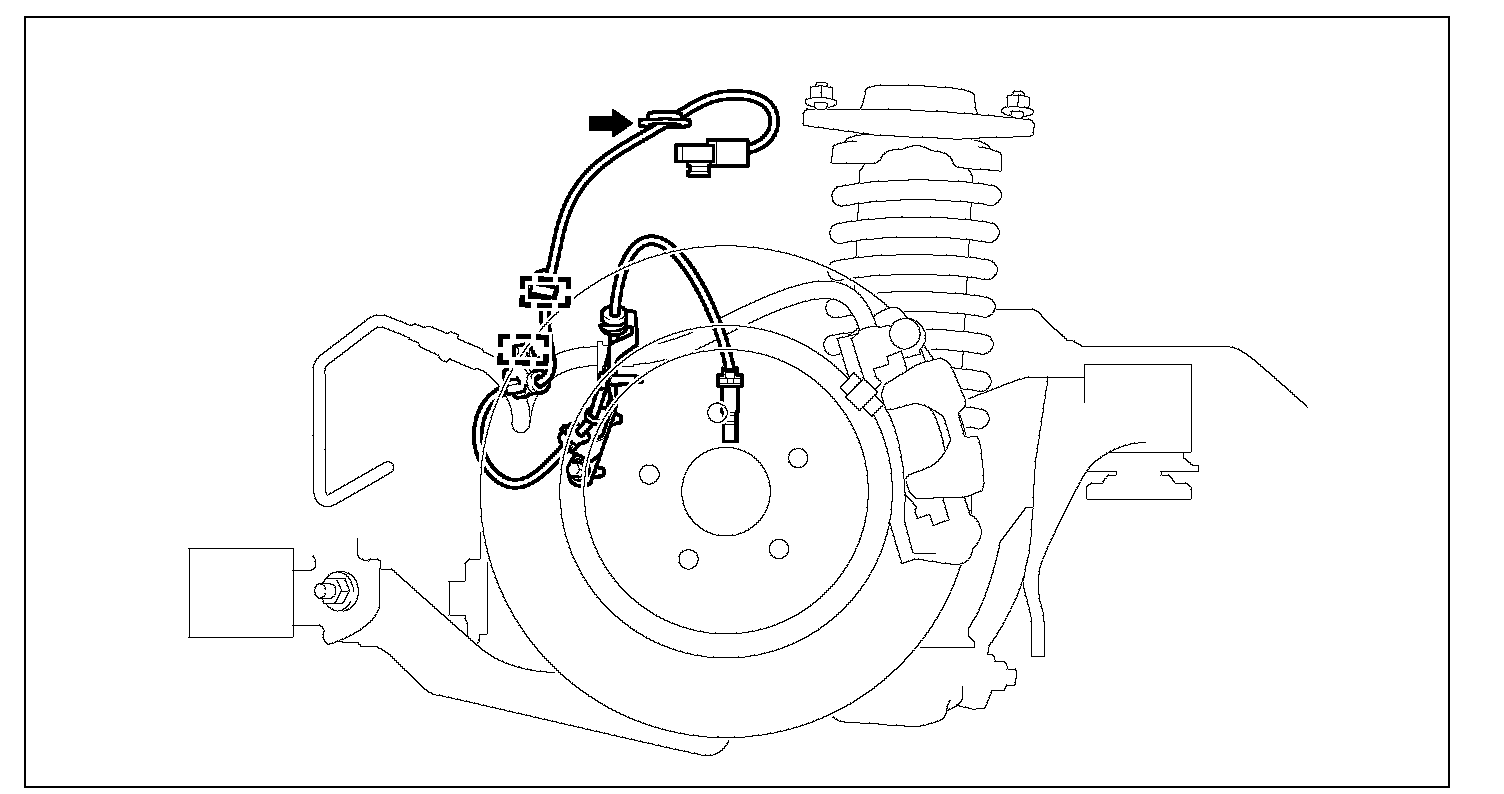

2. Removal of speed sensor RR LH
(1) Remove the luggage compartment floor mat.





(2) Disconnect the speed sensor RR LH connectors in the vehicle.
(3) Disconnect the grommet and 2 harness clamps from the rear wheel housing.











(4) Remove 2 bolts from the bracket.





(5) Remove the bolts and the speed sensor RR LH.

CAUTION:
Do not let foreign matter stick to the installation part and the tip of the speed sensor RR LH.
