AT Model

Assembly

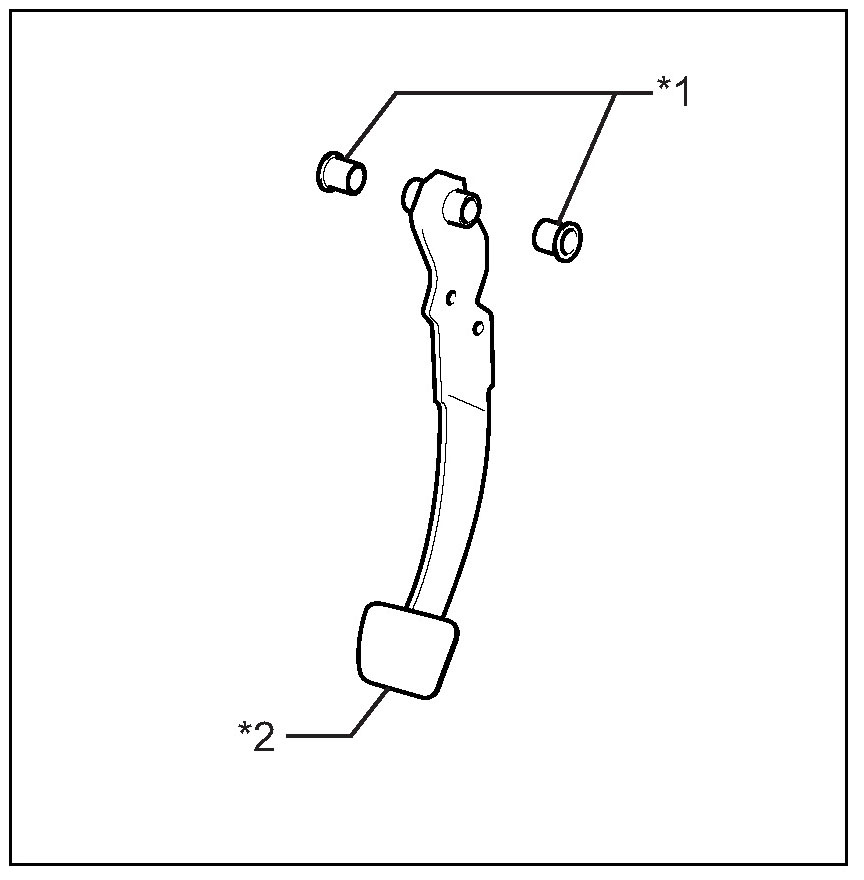

1. Installation of brake pedal bushings
(1) Install the brake pedal bushings to the brake pedal.

Captions in illustration








2. Installation of brake pedal

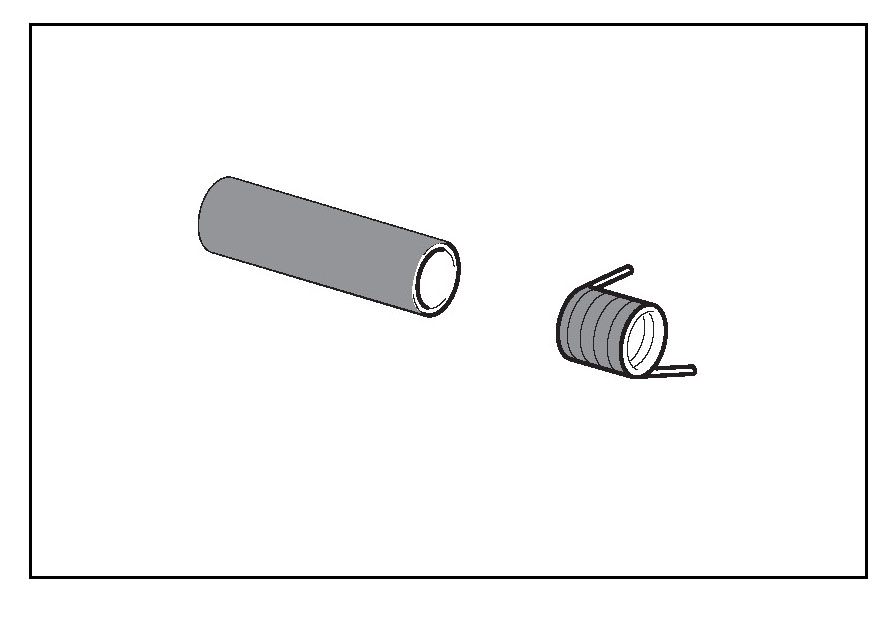

(1) Apply NIGTIGHT LYW No.2 to the sides of brake pedal shaft collar and the brake pedal return spring.

Captions in illustration





(2) Install the brake pedal return spring and the brake pedal shaft collar to the brake pedal.

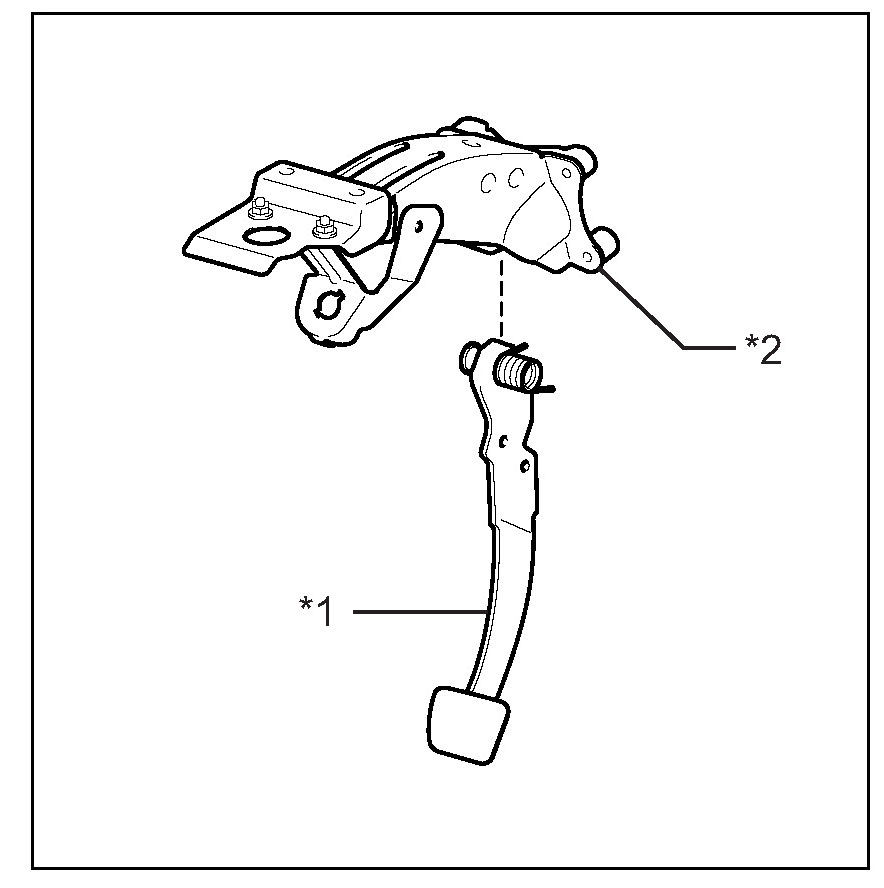

(3) Install the brake pedal to the brake pedal support ASSY.

Captions in illustration

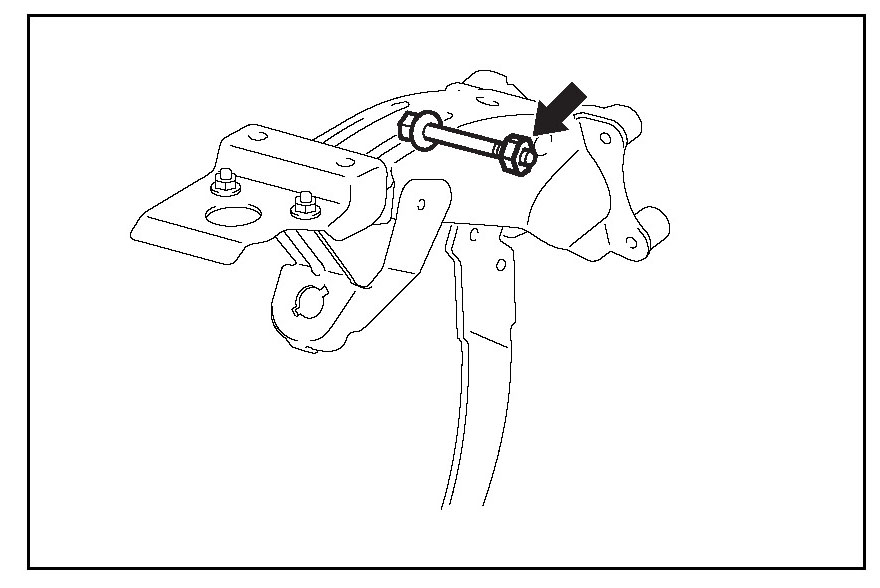

(4) Install the brake pedal to the brake pedal support ASSY with bolt and nut.

NOTE:
Secure the bolt and tighten the nut.

Standard value:T=30Nm {306kgf-cm} {22.1ft-lbf}
3. Installation of brake pedal stopper
(1) Install the brake pedal stopper to the brake pedal.
