AT Model
Disassembly 1.
Removal of brake pedal stopper.
(1)
Remove the brake pedal stopper from the brake pedal.
2.
Removal of brake pedal
(1)

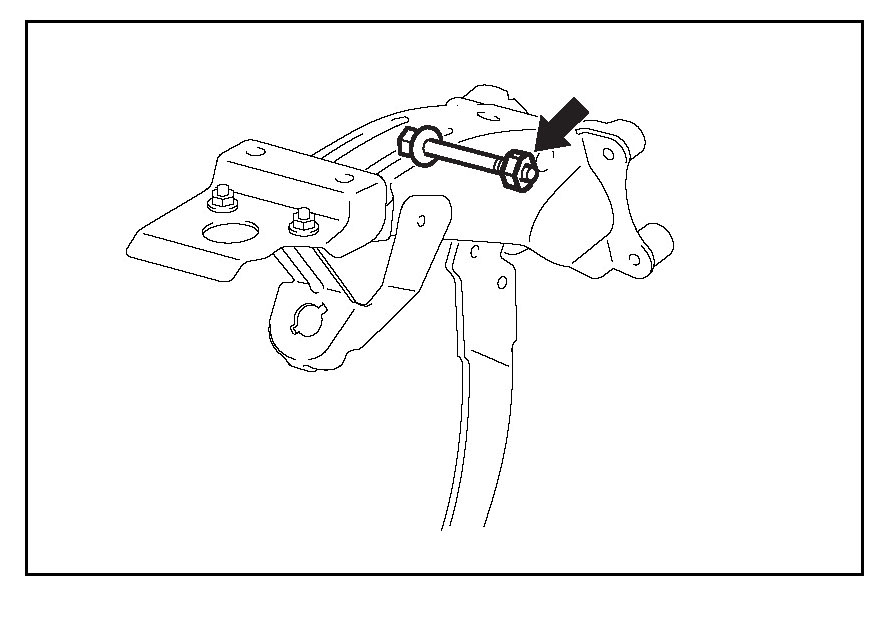

Remove the bolt and nut from the brake pedal support ASSY.
NOTE: Hold the bolt and rotate the nut.
(2)
Remove the brake pedal return spring.
(3)
Remove the brake pedal shaft collar.
(4)
Remove 2 brake pedal shaft bushings.
