MT Model

Disassembly

1. Removal of brake pedal
(1) Remove the bolts.
(2) Remove the clutch master cylinder bracket and brake pedal from the brake pedal support SUB-ASSY.

Captions in illustration

2. Removal of brake pedal return spring
(1) Remove the brake pedal return spring from the clutch master cylinder bracket.

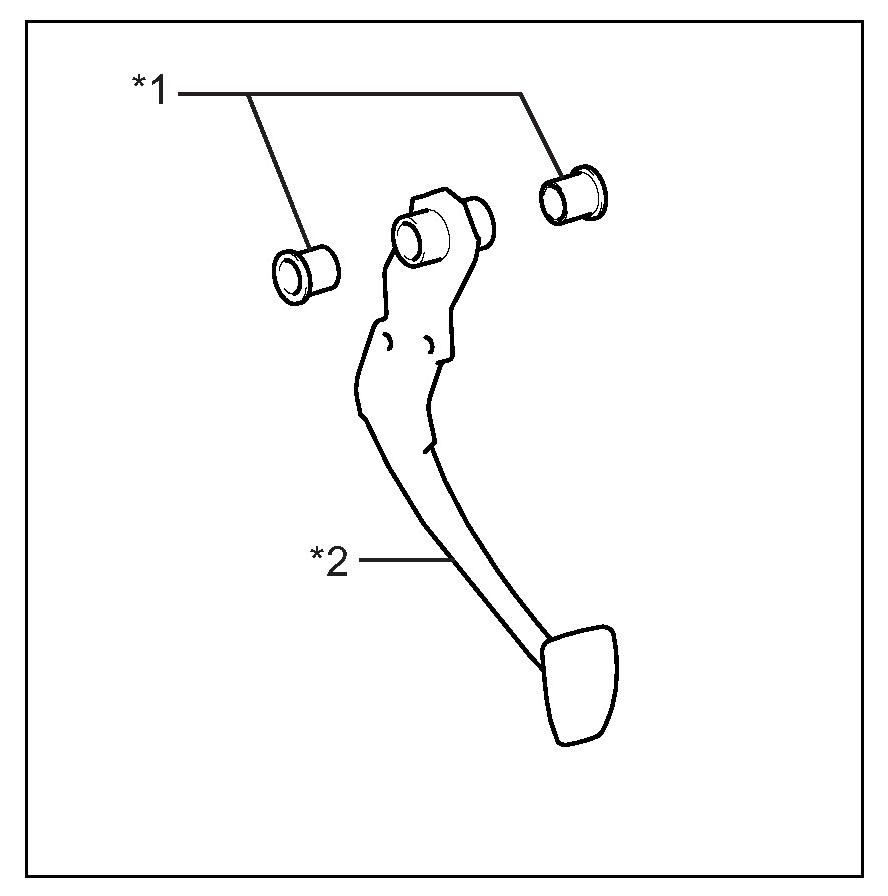

3. Removal of brake pedal bushings
(1) Remove the brake pedal bushings from the brake pedal.

Captions in illustration
