AT Model
Installation1. Installation of brake pedal support ASSY
(1) Temporarily install the brake pedal support ASSY with 2 bolts and 4 nuts.
(2) Tighten 4 nuts.
Standard value:T=18Nm {184kgf-cm} {13.3ft-lbf}
(3) Tighten 2 bolts.
Standard value:T=18Nm {184kgf-cm} {13.3ft-lbf}

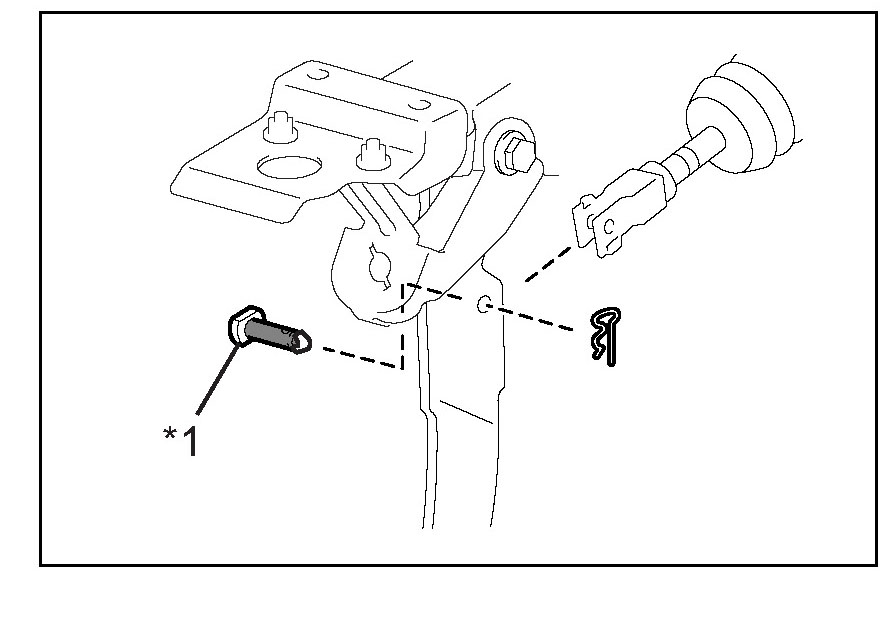

2. Installation of push rod pin
(1) Apply NIGTIGHT LYW No.2 to the periphery of the push rod pin.
Captions in illustration
(2) Insert the push rod pin from the right side of the vehicle, and connect the push rod clevis to the brake pedal ASSY with a new clip.
3. Installation of stop light switch mounting adjuster
(1) Engage 2 claws, and install the stop light switch mounting adjuster.
4. Brake pedal height check/adjustment
5. Brake pedal free play check
6. Brake pedal clearance check
7. Installation of stop light switch ASSY
8. Installation of instrument panel under cover SUB-ASSY No. 1
9. Installation of instrument side panel LH
