Steering/Suspension - Rear Wheel Alignment Specifications

NUMBER: 05-51-12
DATE: 07/06/12

APPLICABILITY:
2013MY BRZ

SUBJECT:
Rear Wheel Alignment Specifications

Introduction

The following information is being provided as an advanced release of pending corrections to the 2013MY BRZ Service Manual. STIS will be updated accordingly in the near future.

Service Procedure / Information

WHEEL ALIGNMENT

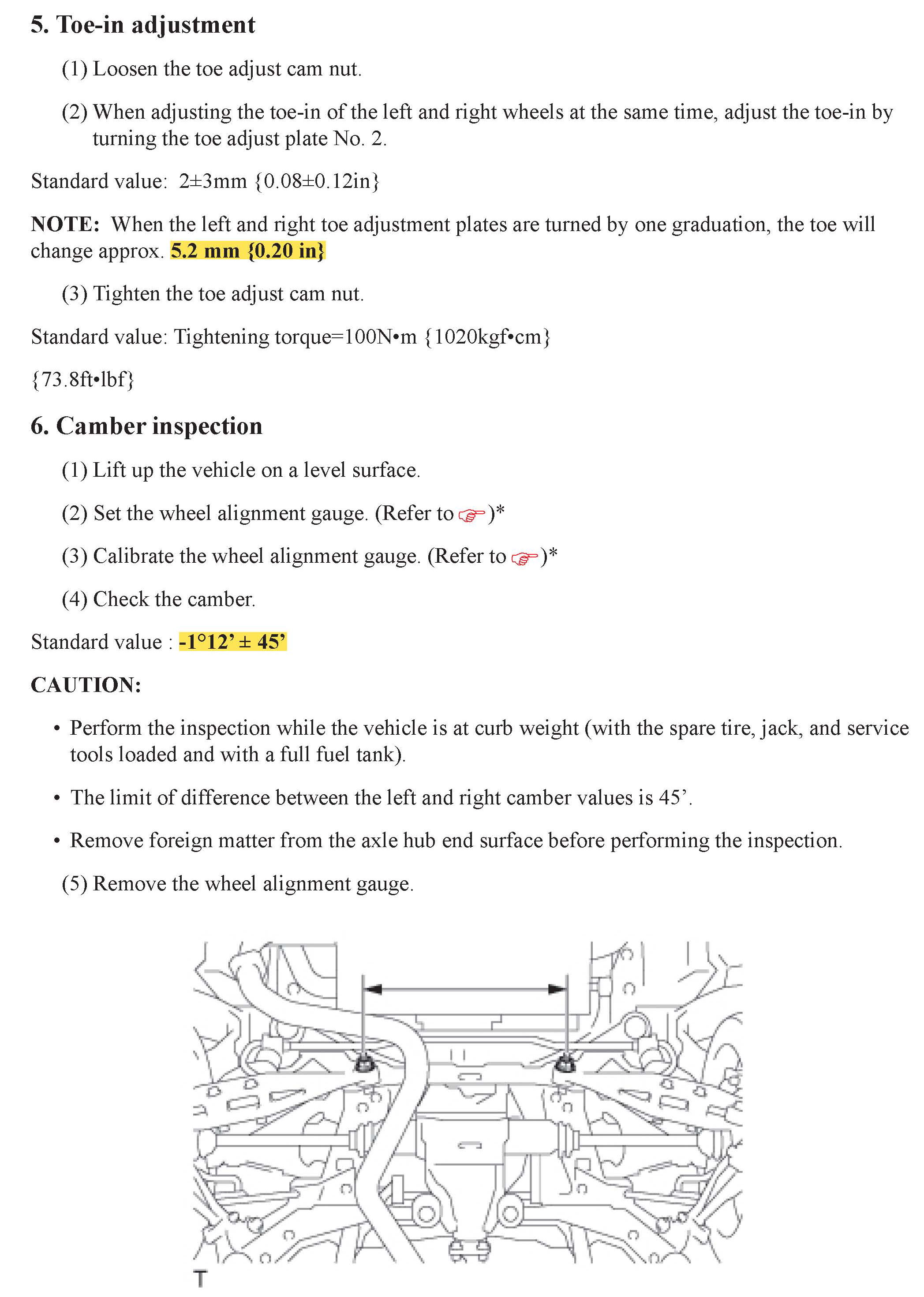

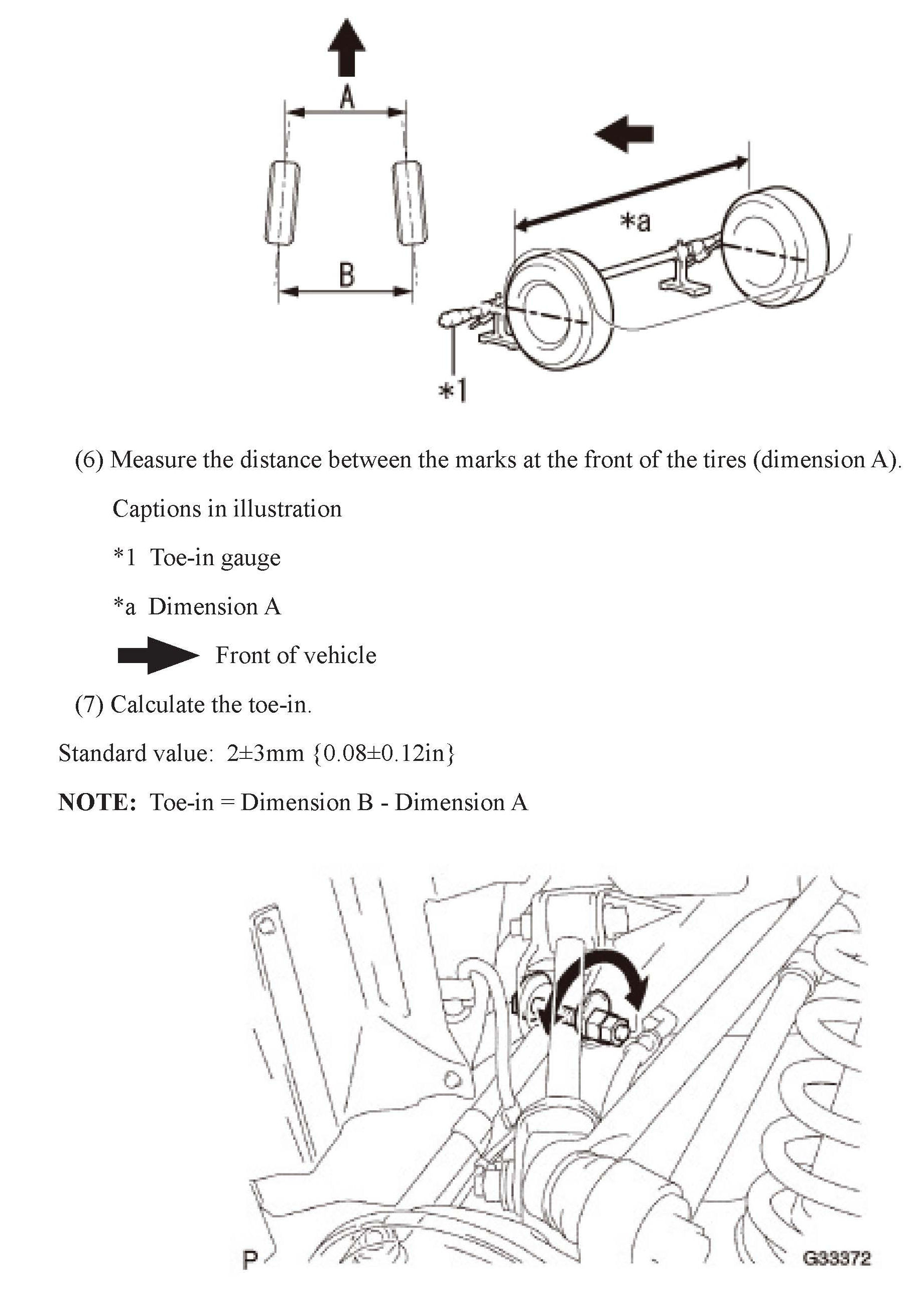

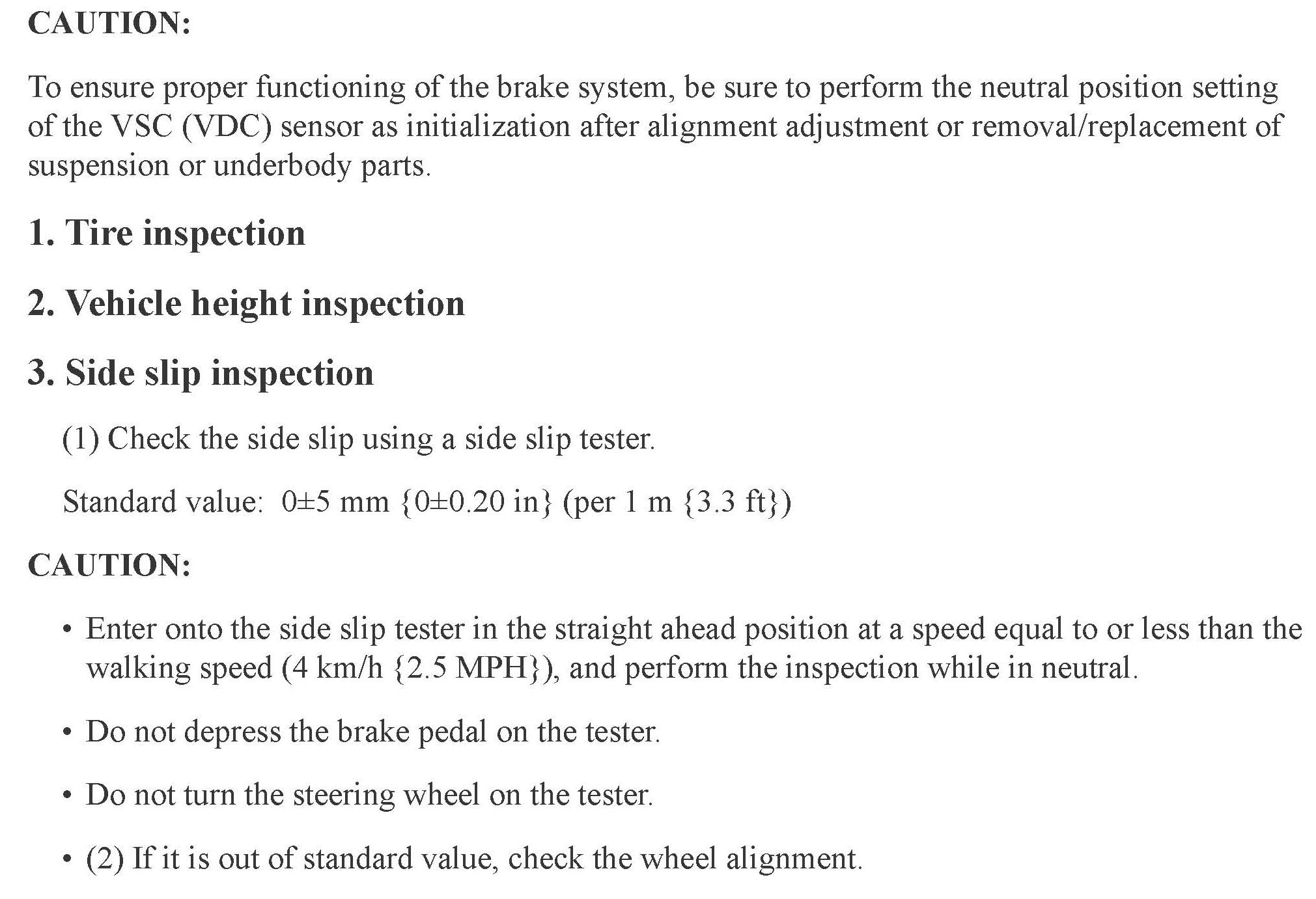

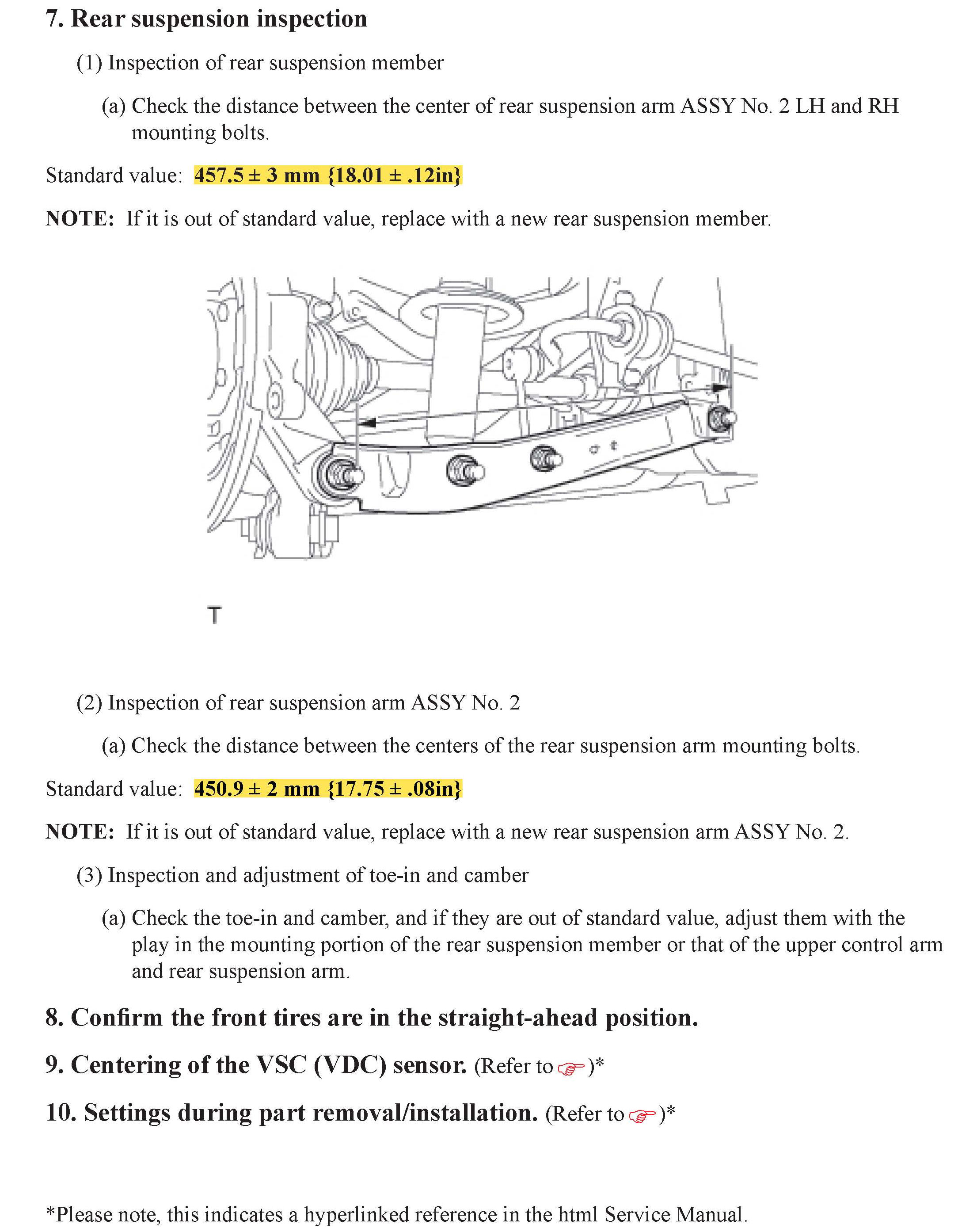

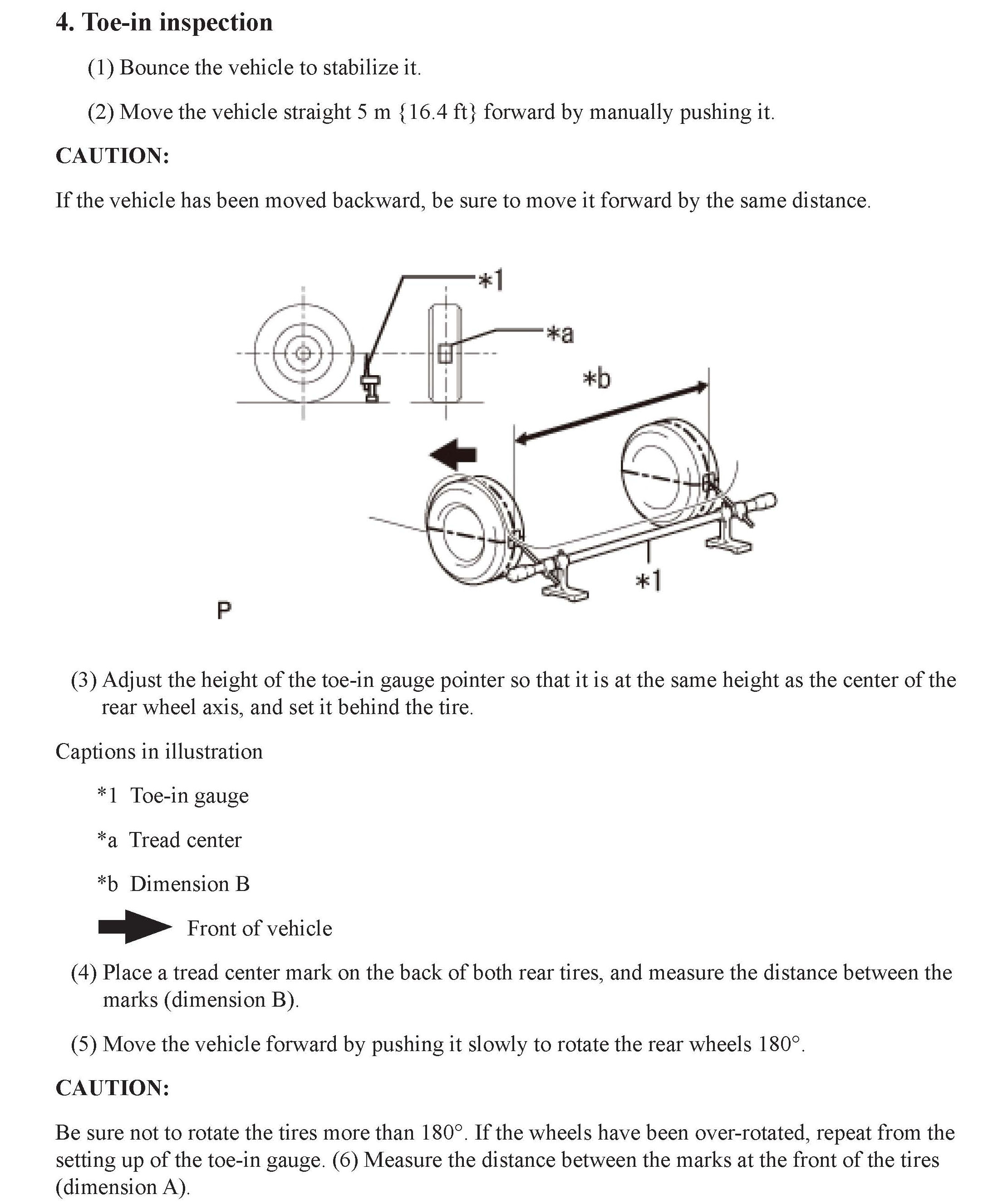

REAR WHEEL ALIGNMENT
ADJUSTMENT
