Fluid - M/T: Testing and Inspection

On-vehicle inspection

1. Check of manual transmission oil
(1) Park the vehicle on a level road.





(2) Remove the transmission filler plug and the gasket.

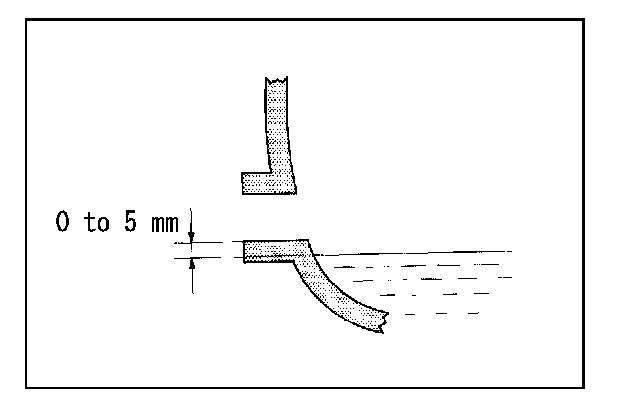

(3) Check that oil is filled to the level between 0 and 5 mm {0 to 0.197 in} from the bottom of the transmission filler plug hole.

CAUTION:
^ Excess or shortage of oil may lead to trouble.
^ When replacing oil, check the oil amount after driving.

(4) If the oil amount is insufficient, check for oil leaks.
(5) Install the transmission filler plug via a new gasket.
Standard value:T=37Nm {377kgf-cm} {27.3ft-lbf}
