Clutch, M/T
Clutch Cover Bolts

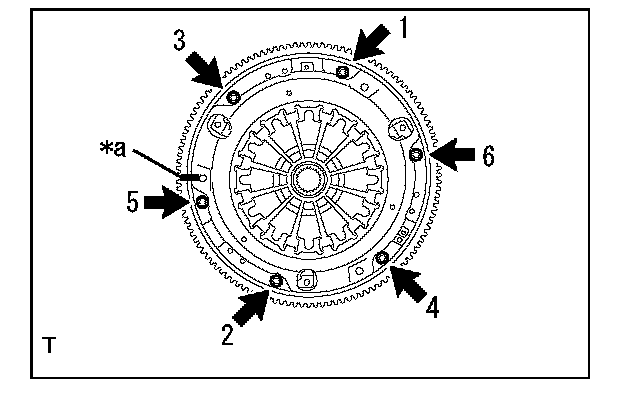

Captions in illustration
Lightly tighten the bolts from the upper one near the
flywheel knock pin and equally tighten the 6 bolts in the order shown in the figure after checking that the
clutch disc ASSY is positioned at the center by lightly shaking the SST from side to side and up and down.
Standard value
16 Nm {163 kgf-cm} {11.8 ft-lbf}
