Timing Cover
Timing Chain Cover Torque and Sequence
Temporarily install the
timing chain/belt cover SUB-ASSY with the 32 bolts.

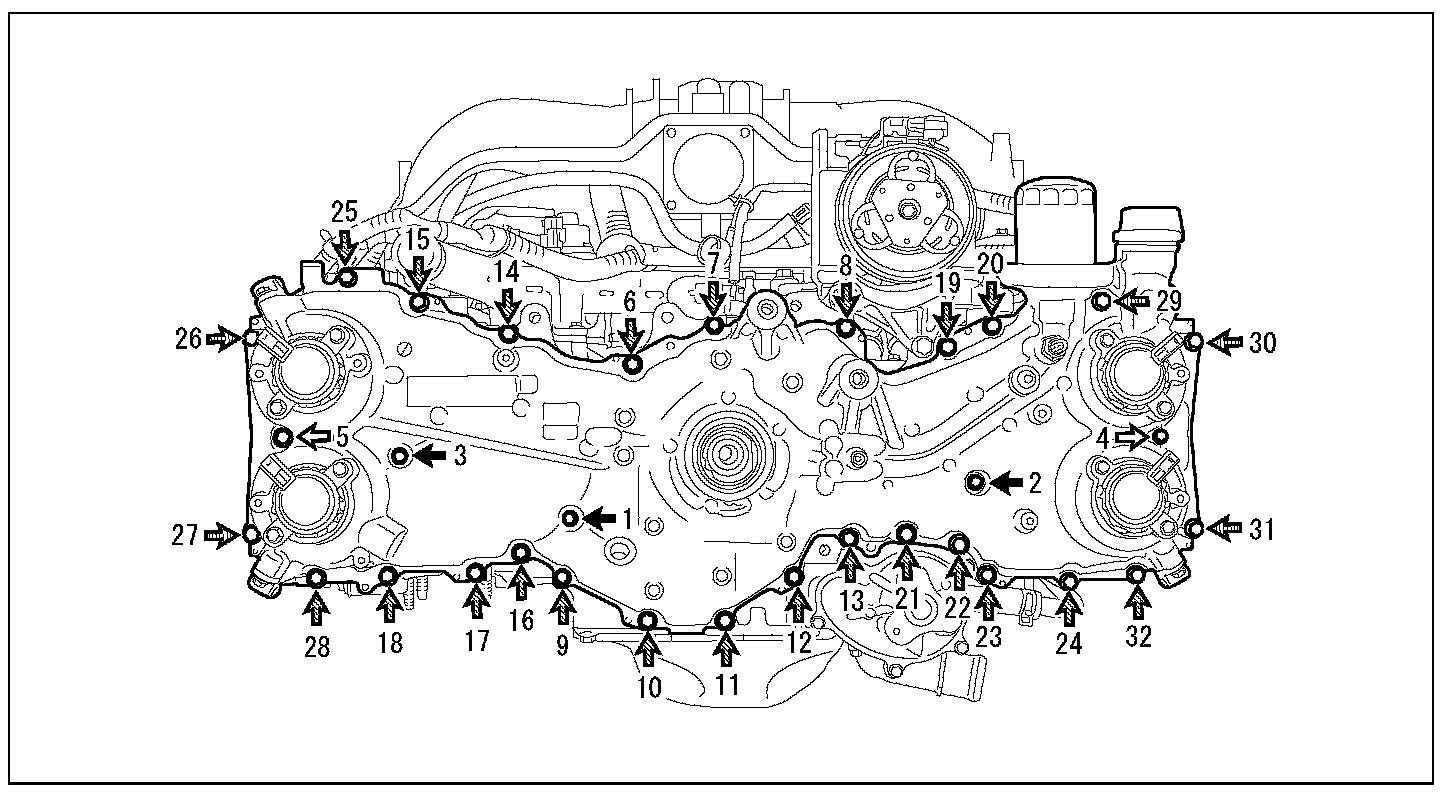

Tighten the 32 bolts in the order as shown in the figure.

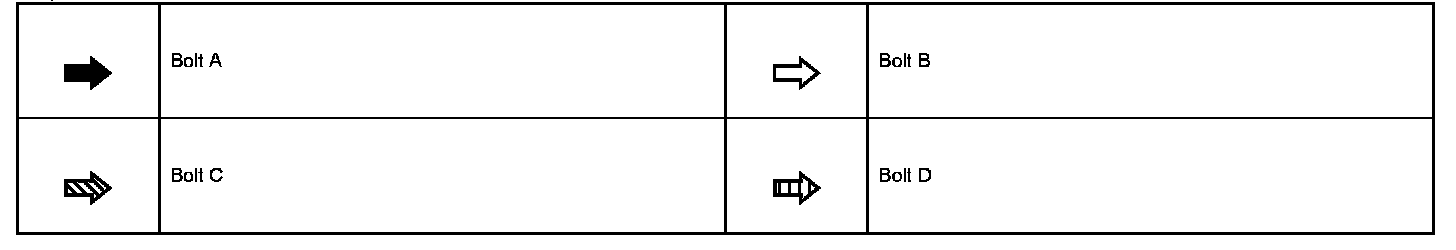

Captions in illustration
Standard value:
Bolt A, B
10 Nm {102 kgf-cm} {7.4 ft-lbf}
Bolt C, D
25 Nm {255 kgf-cm} {18.4 ft-lbf}
