Removal
Removal 1.
Battery negative terminal disconnection
2.
Instrument side panel RH removal
3.
Glove compartment door ASSY removal
4.

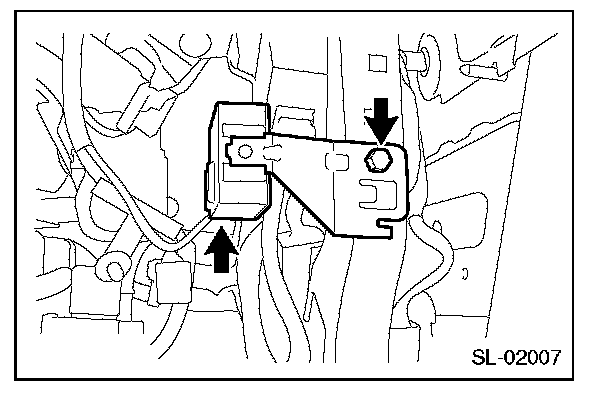

Control unit relay ASSY removal
(1)
Disconnect the connector of control unit relay ASSY.
(2)
Remove the bolt and remove the control unit relay ASSY.
