Removal

Removal

1. Steering column cover LWR removal
2. Steering column cover UPR removal





3. Ignition/starter switch ASSY removal
(1) Disconnect the connector.

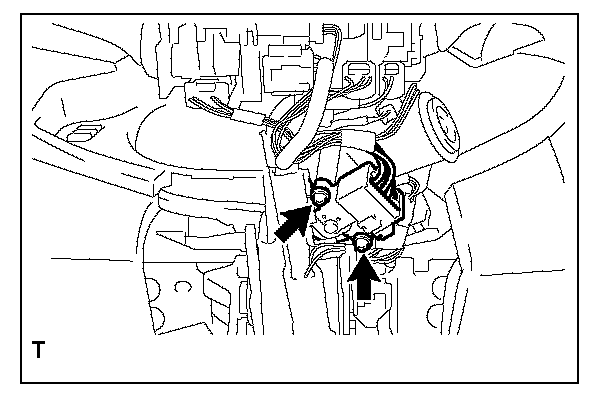

(2) Remove the two screws and remove the ignition/starter switch ASSY.
