Neutral Safety Switch: Adjustments

Adjustment

1. Adjustment of neutral start switch ASSY
(1) Set the select lever to N position.

(2) Loosen the set bolt on the neutral start switch ASSY.

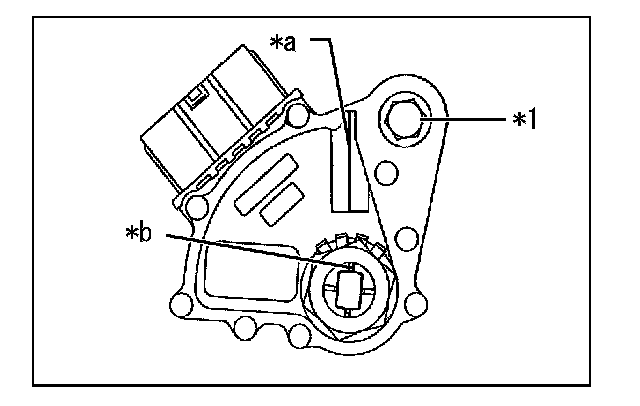

Captions in illustration

(3) Move the neutral start switch ASSY to align the neutral reference line and the kerf.
(4) Tighten the set bolt.
Standard value:T=13Nm {130kgf-cm} {9.6ft-lbf}
(5) After the adjustment, check the neutral start switch ASSY.
