Automatic Transmission

Removal

1. Disconnection of battery ground terminal
2. Removal of engine under cover No.1
3. Removal of engine under cover No.2
4. Removal of exhaust pipe ASSY FR





5. Disconnection of floor shift gear shifting rod SUB-ASSY No.1

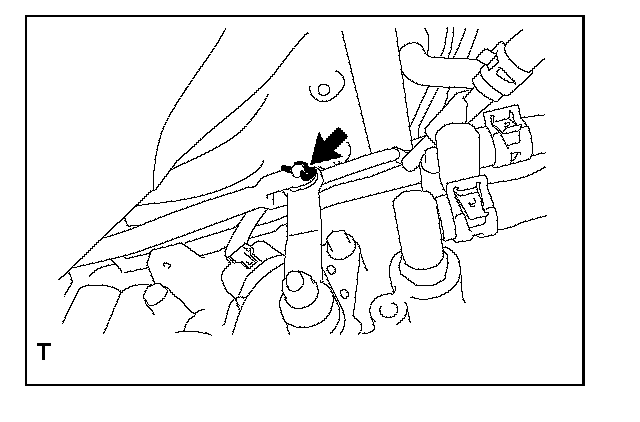

(1) Remove the clip and the pin and disconnect the floor shift gear shifting rod SUB-ASSY No.1 from the control shaft lever RH.





6. Removal of control shaft lever RH

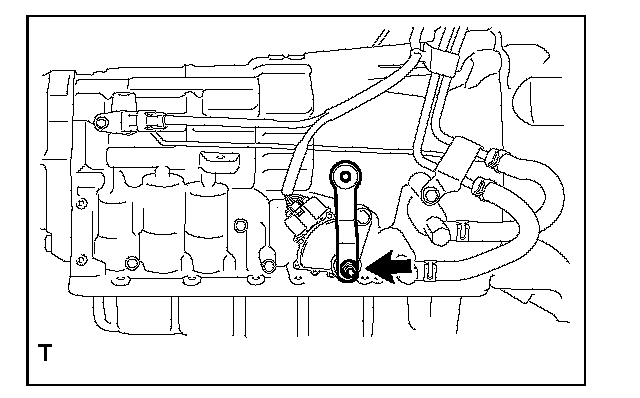

(1) Remove the nut and the spring washer, and then remove the control shaft lever RH from the neutral start switch ASSY.
7. Removal of neutral start switch ASSY
(1) Disconnect the connector from the neutral start switch ASSY.

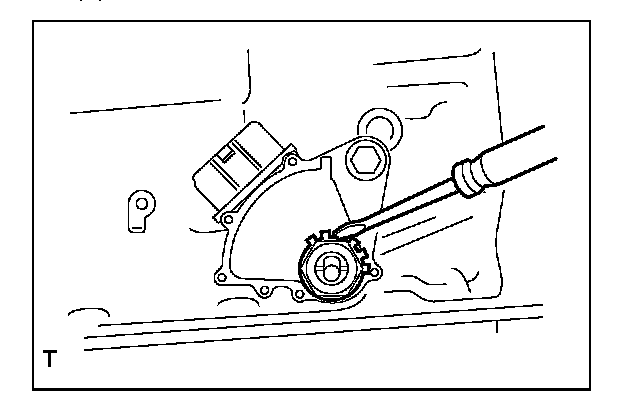

(2) Use a thin flat tip screwdriver to release the crimping of the nut stopper and remove the nut and the nut stopper.





(3) Remove the bolt and then remove the neutral start switch ASSY.

Captions in illustration





NOTE:
Do not turn the manual valve shaft lever before installing the neutral start switch ASSY. If the manual valve shaft lever is turned, it may be disconnected inside AT.
