Manual Transmission

Unit inspection

1. Check of neutral position switch

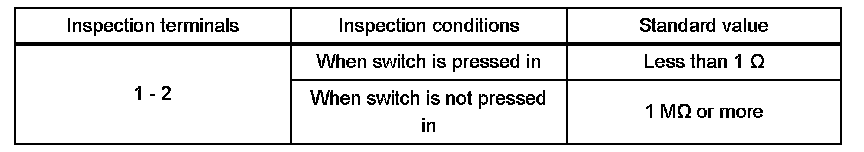

(1) Measure the resistance between terminals.
Resistance

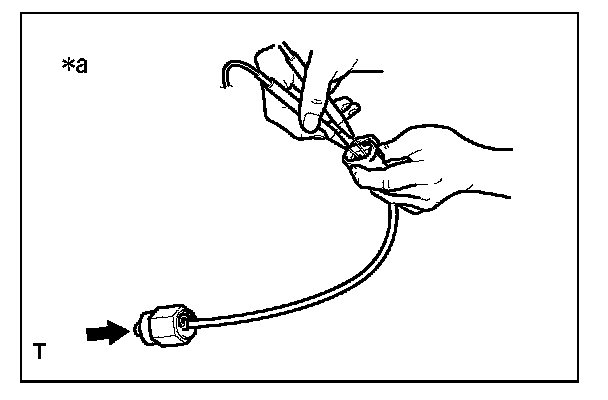

Captions in illustration

If the resistance is not at the standard value, replace the neutral position switch.
