Neutral Start Relay (Inhibitor Relay): Testing and Inspection

Relay

On-vehicle inspection





1. ST relay check

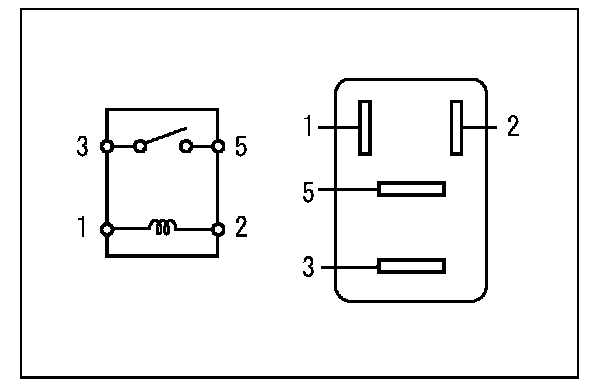

(1) Check the resistance between relay connector terminals.

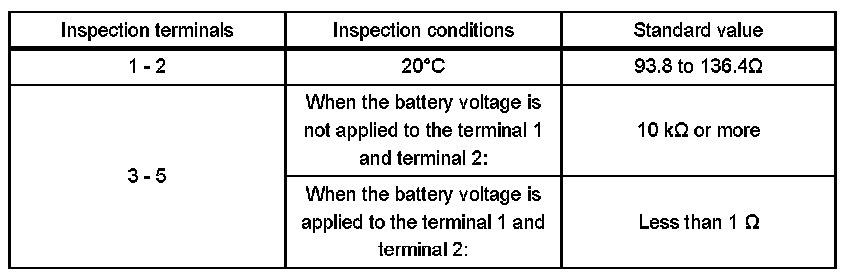

Resistance value








2. INHIBITOR relay check
(1) Check the resistance between relay connector terminals.

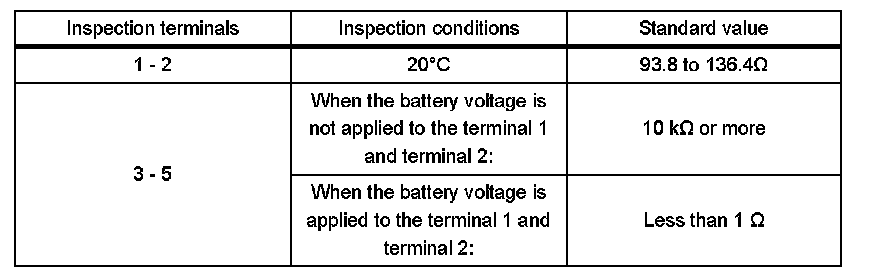

Resistance value








3. ST CUT relay check (with smart key system)

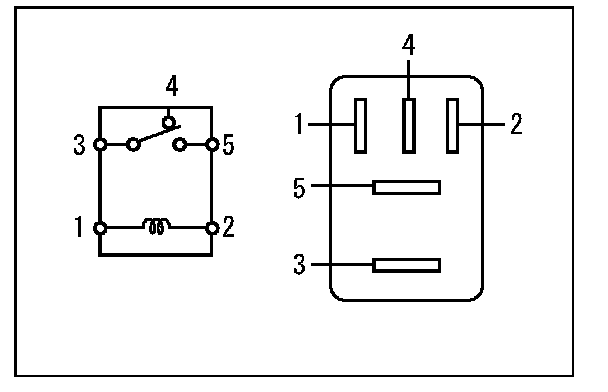

(1) Check the resistance between relay connector terminals.

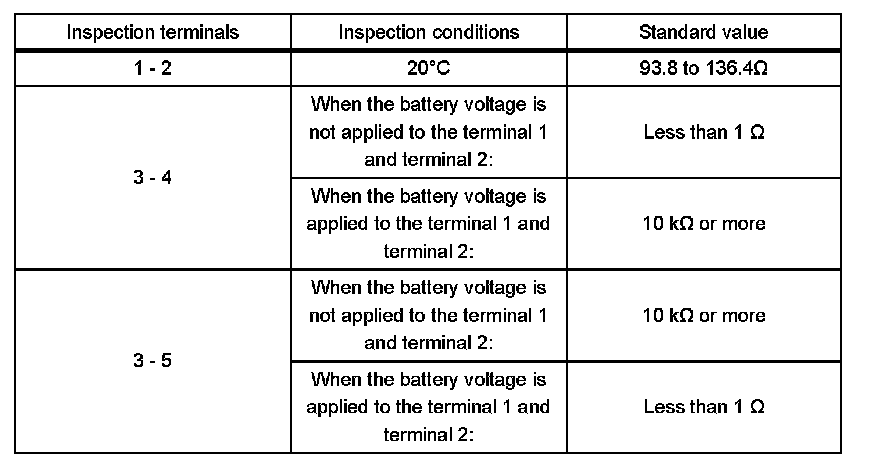

Resistance value








4. IGS relay check (with smart key system)

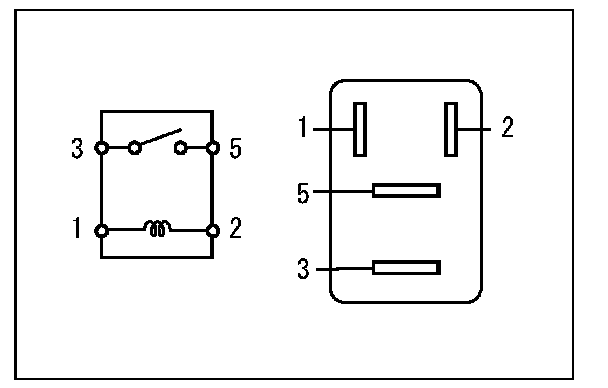

(1) Check the resistance between relay connector terminals.

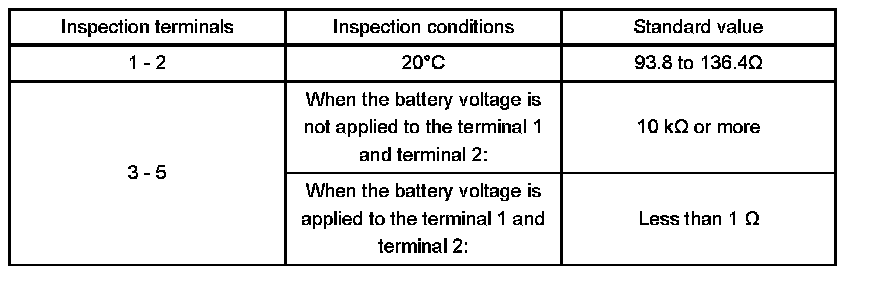

Resistance value
