Start / Stop Switch: Testing and Inspection

Unit inspection





1. Push button start switch check
(1) Resistance check

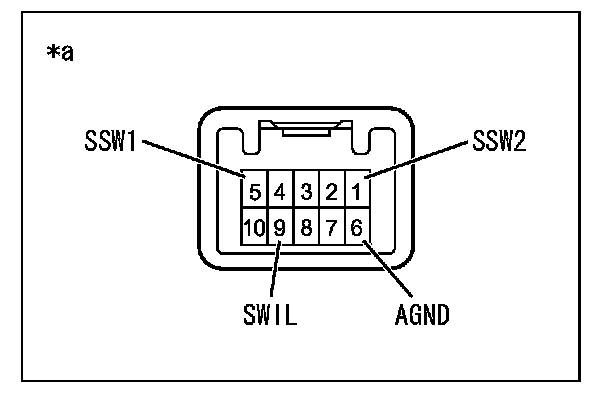

(a) Measure the resistance between connector terminals.

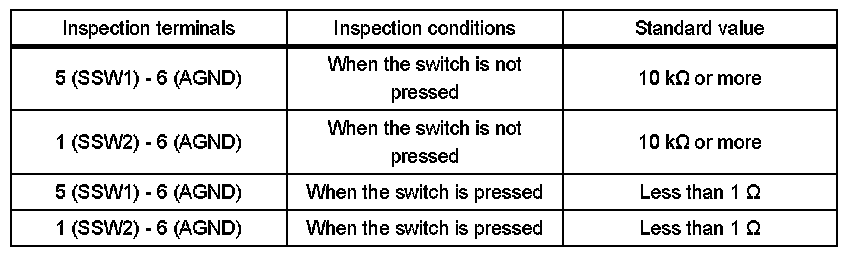

Resistance value





NOTE:
If the resistance value is not within the standard value, replace the push button start switch.

(2) LED illumination check
(a) Connect the battery positive and negative to the connector terminals and check the LED illumination condition.

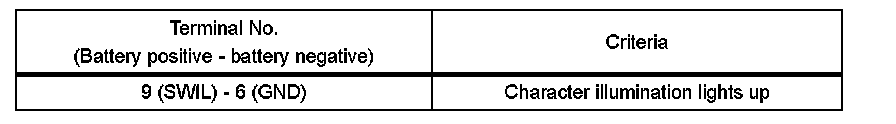

Criteria





NOTE:
If the resistance value is not within the standard value, replace the push button start switch.
