Installation

Installation





1. Starter ASSY installation
(1) Install the starter ASSY to the transmission and temporarily tighten the upper mounting bolt.

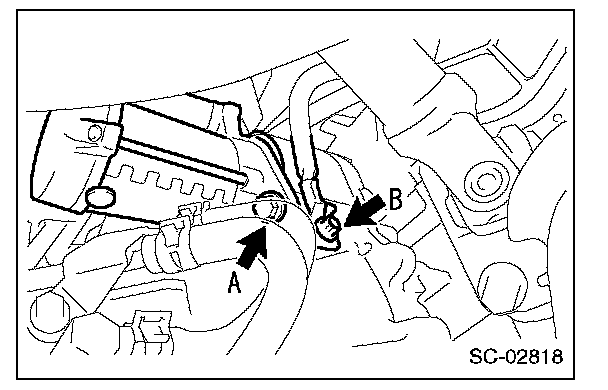

(2) Lower mounting bolt tightening
1. Tighten the lower mounting bolt A.
Standard value: 50 Nm {510 kgf-cm} {36.9 ft-lbf}
2. Tighten the ground cable fixing bolt B.
Standard value: 14 Nm {143 kgf-cm} {10.3 ft-lbf}

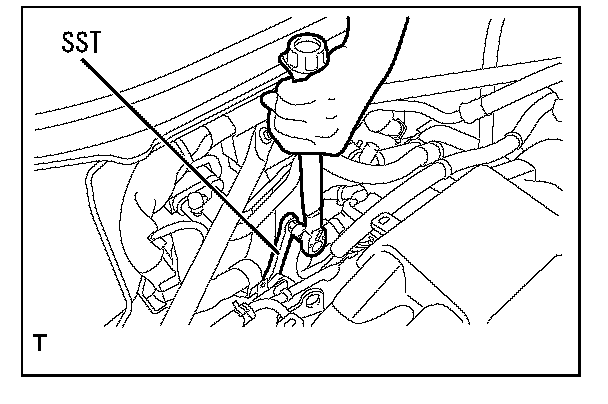

(3) Tighten the upper mounting bolt of starter ASSY using the SST.
SST 18283AA000
Standard value:Specified tightening torque
T=50Nm {510kgf-cm} {36.9ft-lbf}
When using the SST, calculate the torque using the following formula.
Formula: T2 = L2/(L1 + L2) �T1





NOTE:
^ This torque value is valid when the SST and torque wrench are aligned on a line.
^ Attach the SST and torque wrench so that they are alined on a line.

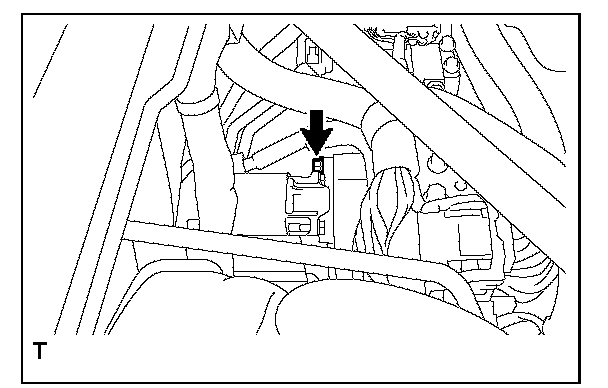

(4) Install the wiring harness clamp.
(5) Connect the connector and terminal to the starter ASSY.
2. Exhaust pipe ASSY FR installation
3. Engine under cover NO.2 installation
4. Battery negative terminal connection
Standard value:T=6.0Nm {61kgf-cm} {4.4ft-lbf}
