Freeze Frame Data

Freeze frame data.

1. Freeze frame data.

NOTE:
^ If an error diagnosis code is output, the freeze frame data at the time of the generation of the error code is recorded.
^ When an error diagnosis code is generated and the freeze frame data is recorded, data is not updated or deleted until the recorded data itself is deleted (diagnosis code deletion).
(1) Turn the ignition to IG OFF.
(2) Connect the SSM3 to the DLC3.
(3) Display error codes on the diagnosis code confirmation screen. Reading and Clearing Diagnostic Trouble Codes
(4) Check the freeze frame data.

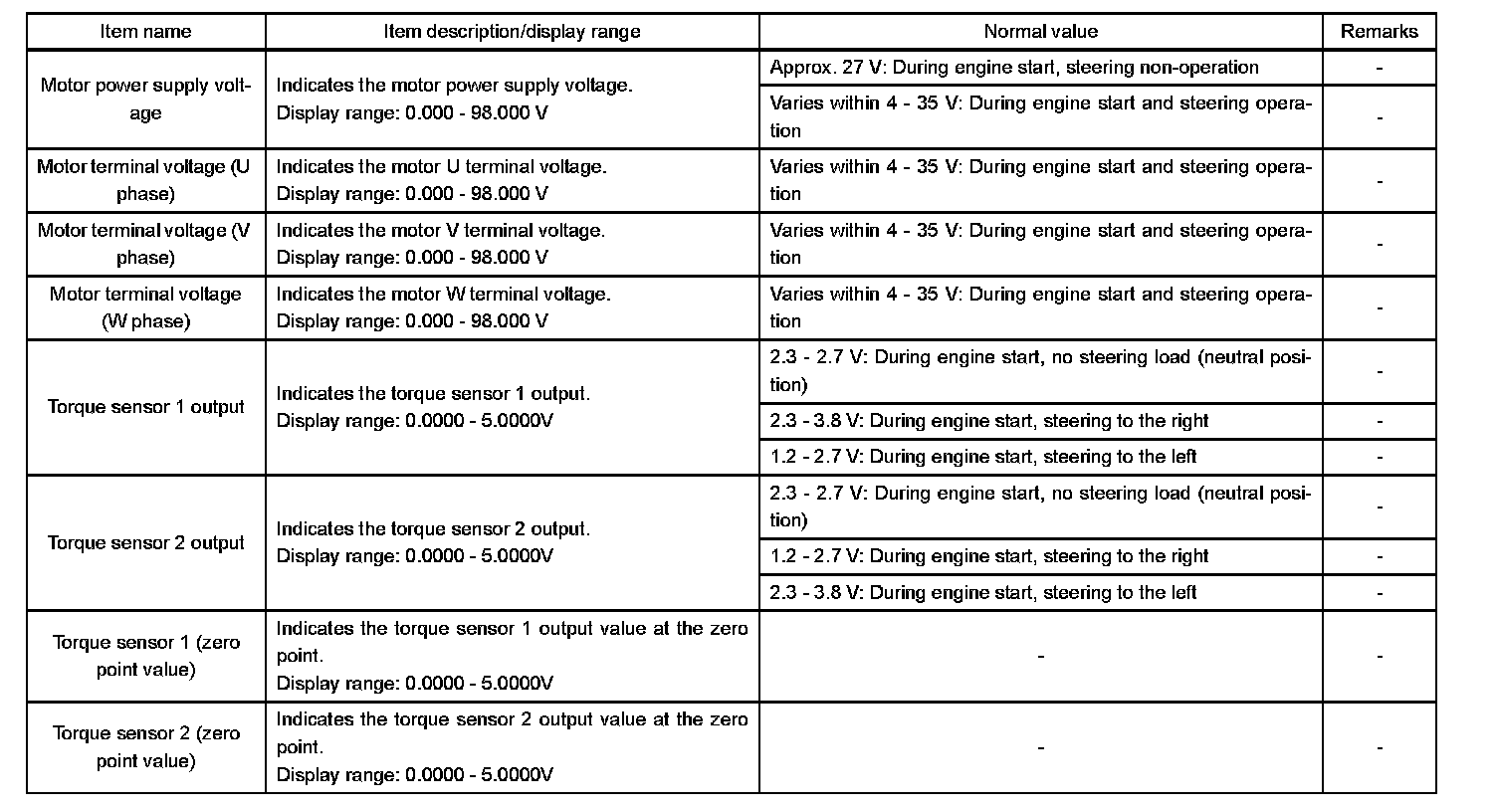

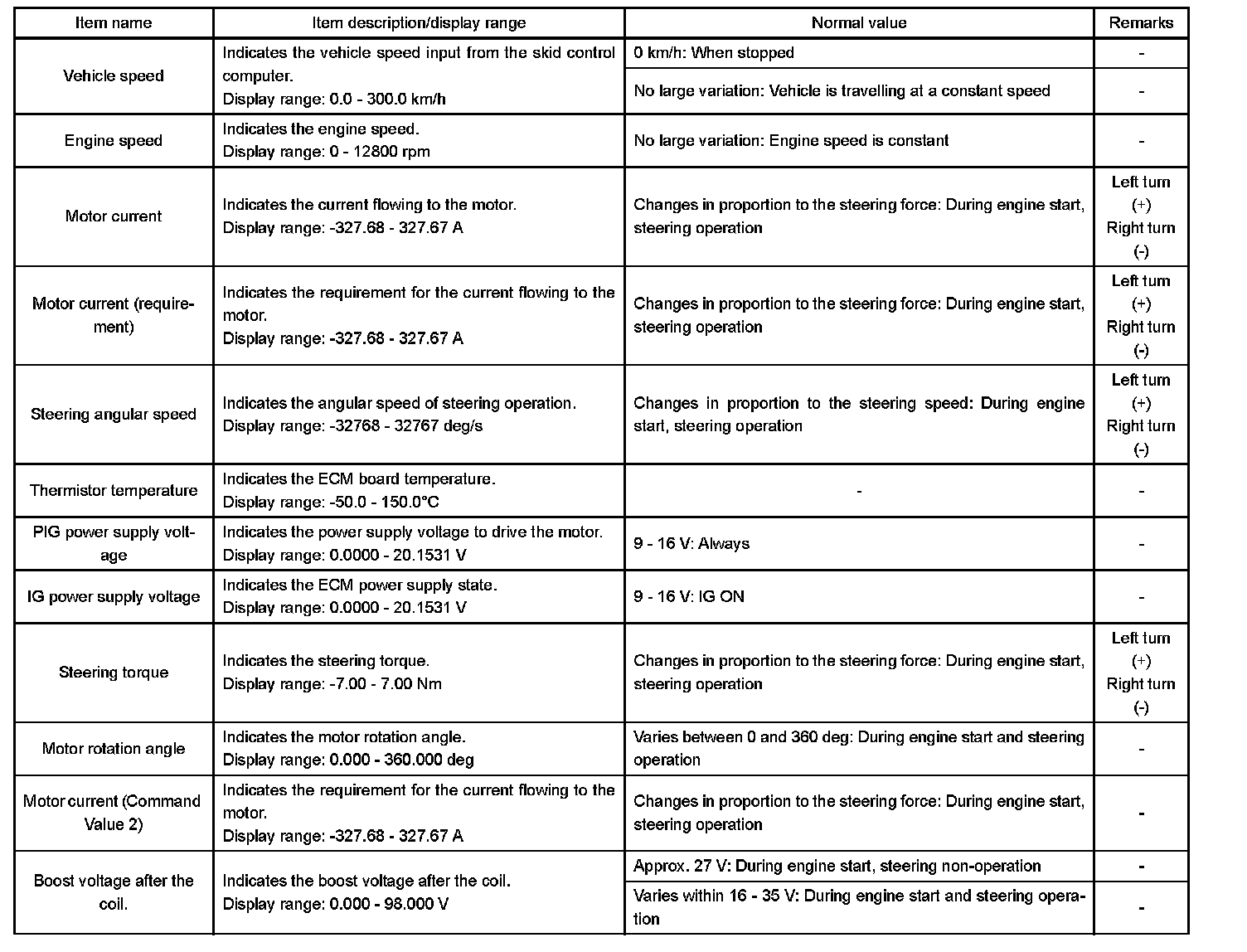

List of freeze frame data
