Fail Safe List

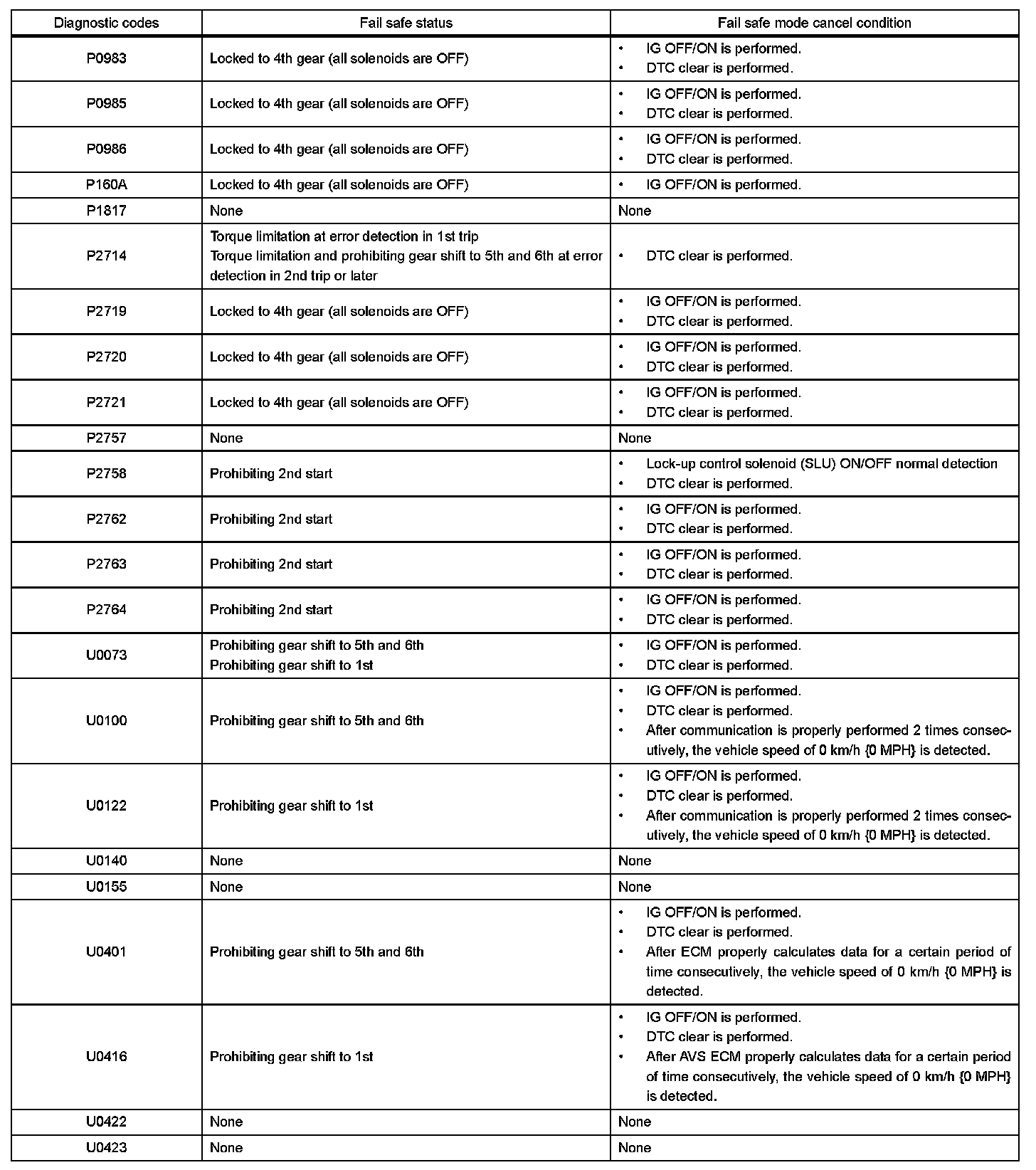

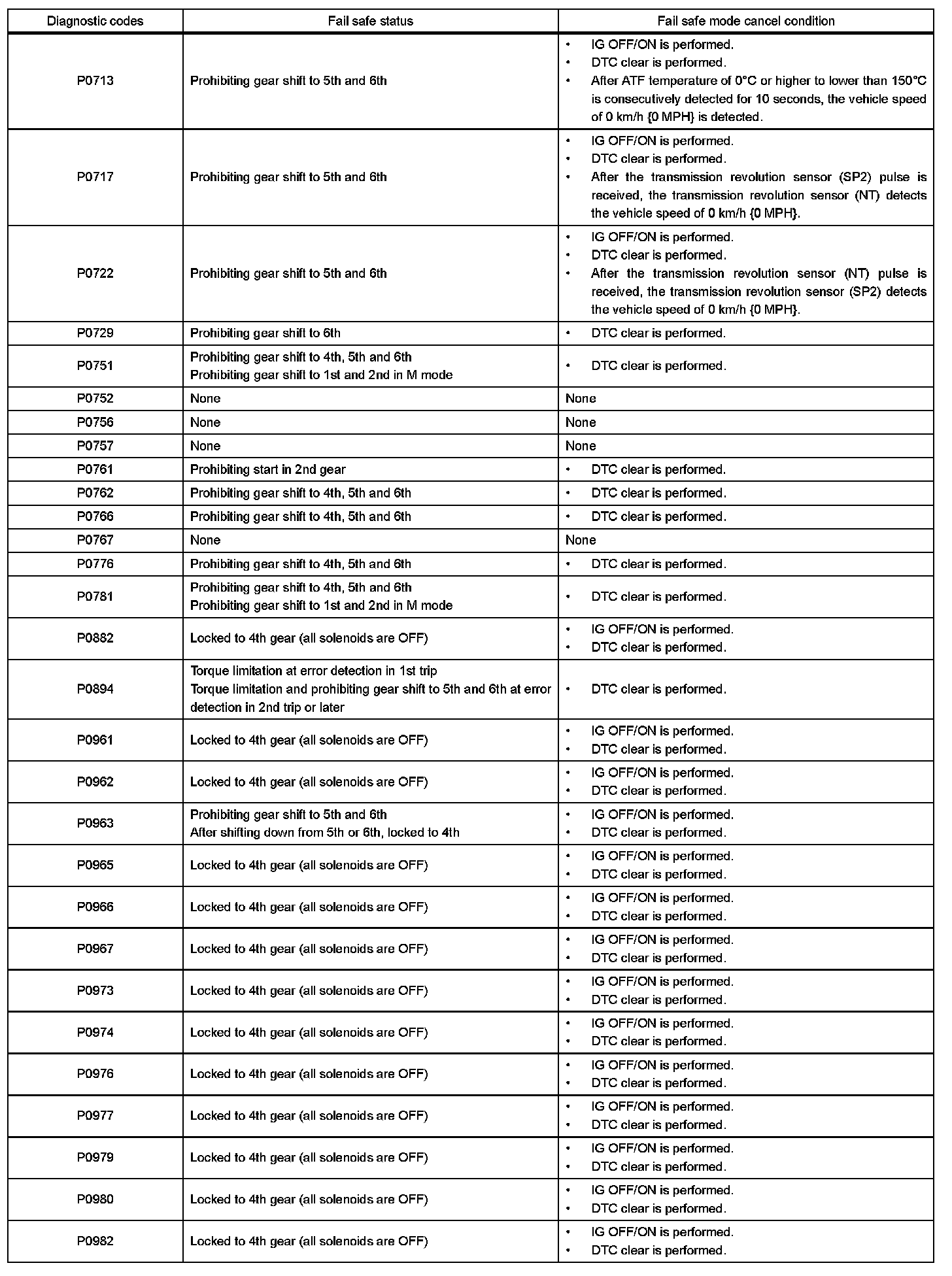

Fail safe list When the following codes are recorded on the transmission control computer ASSY, the fail safe mode is initiated.
Table of solenoid continuity status at normal condition
NOTE: ON: continuity status OFF: non-continuity status

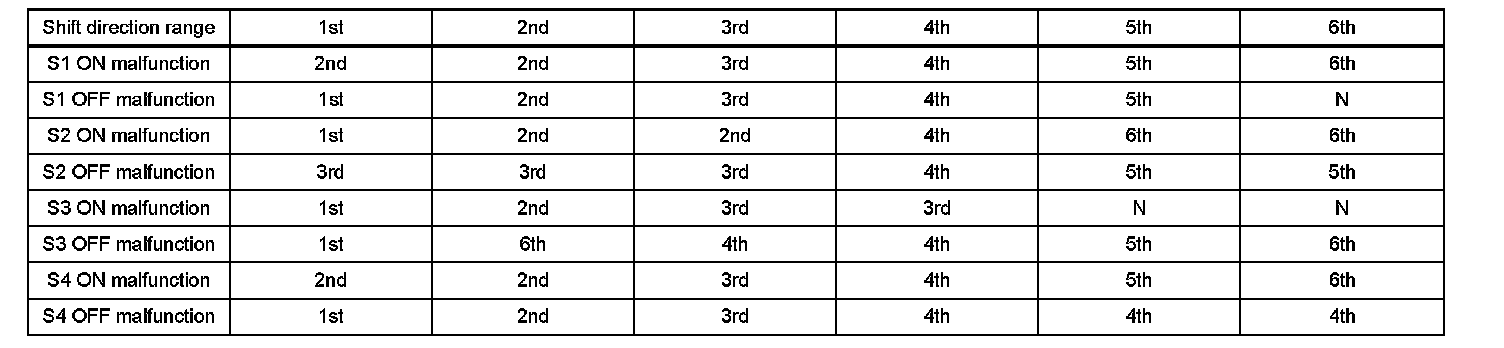

Table of gear range when shift solenoid is abnormal (at D position)
Table of gear range when shift solenoid is abnormal (in manual mode)
