Freeze Frame Data

Freeze frame data

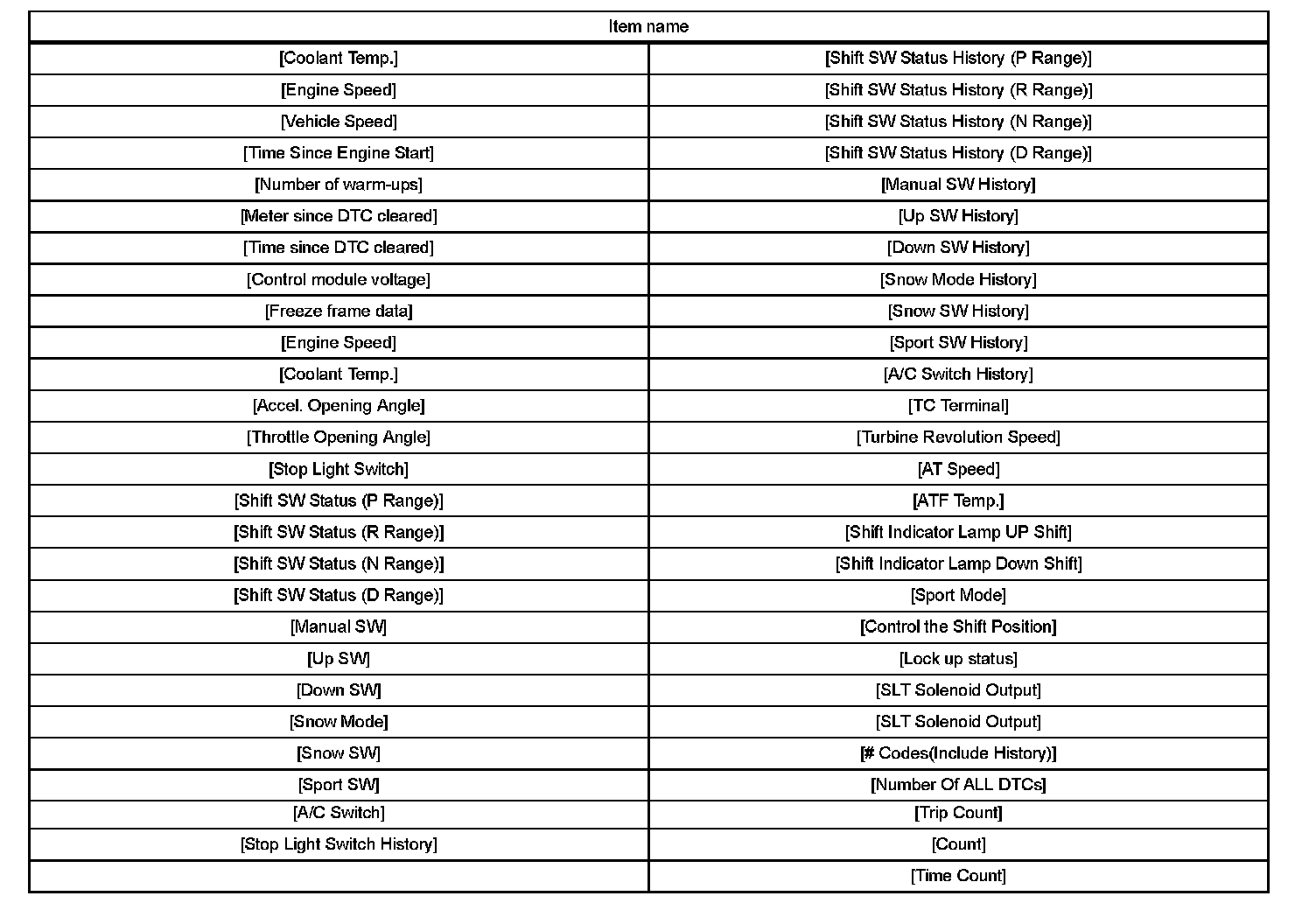

1. Freeze data table
(1) Use SSM3 to select [Freeze Frame Data Display] on the [Transmission Control System] screen according to the screen display.

NOTE:
^ The transmission condition (TCM data) when a diagnostic code is detected and 2 seconds before a diagnostic code is detected can be checked at intervals of 0.5 seconds.
^ Check the consistency of the interviewed trouble phenomenon and the list of diagnostic codes.
^ After repair, perform a confirmation test by referring to the driving condition checked above.
