1. Removal of engine under cover No.1
2. Removal of engine under cover No.2

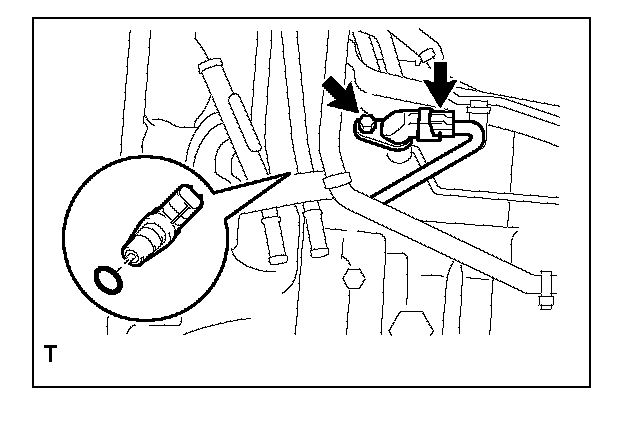

3. Removal of transmission revolution sensor (NT)
(1) Disconnect the connector.
(2) Remove the bolt, and then remove the transmission revolution sensor (NT) and the O-ring.

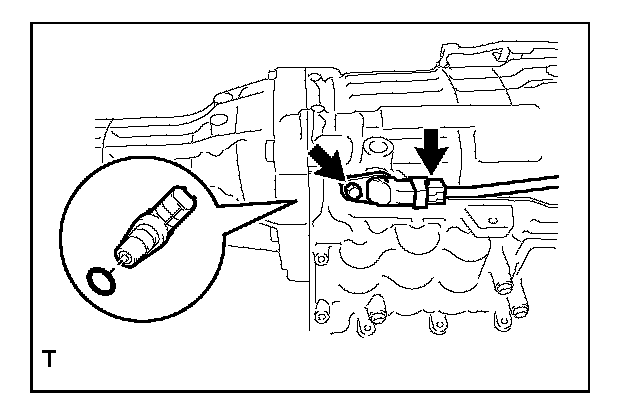

4. Removal of transmission revolution sensor (SP2)
(1) Remove the automatic transmission ASSY.
(2) Disconnect the connector.
(3) Remove the bolt, and then remove the transmission revolution sensor (SP2) and the O-ring.
