Installation

Installation





1. Installation of rear differential mount cushion NO. 2

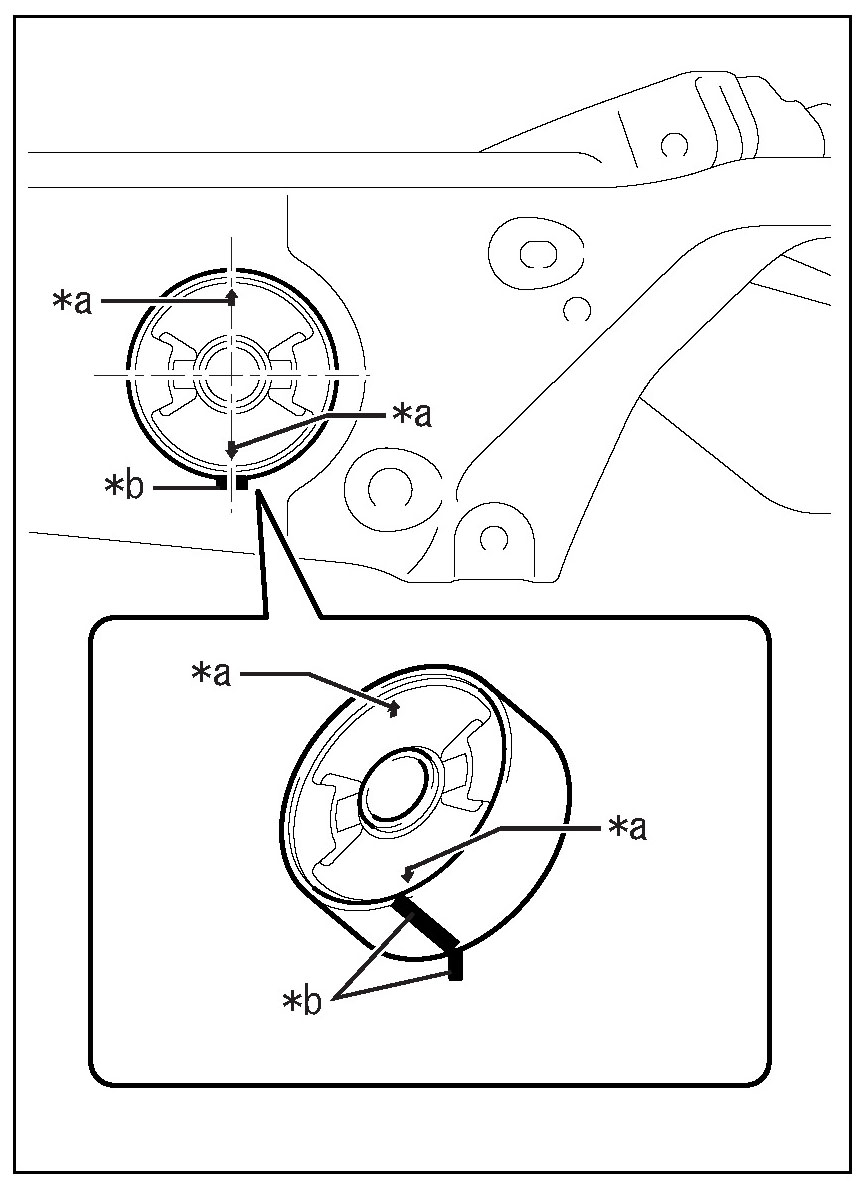

(1) Place alignment marks on the new rear differential mount cushion NO. 2 and the rear suspension member as shown in the figure.

CAUTION:
Install the rear differential mount cushion NO. 2 with the arrow marks facing upward and downward.

NOTE:
Before installation, place alignment marks on the rear suspension member and the rear differential mount cushion NO. 2.

Captions in illustration

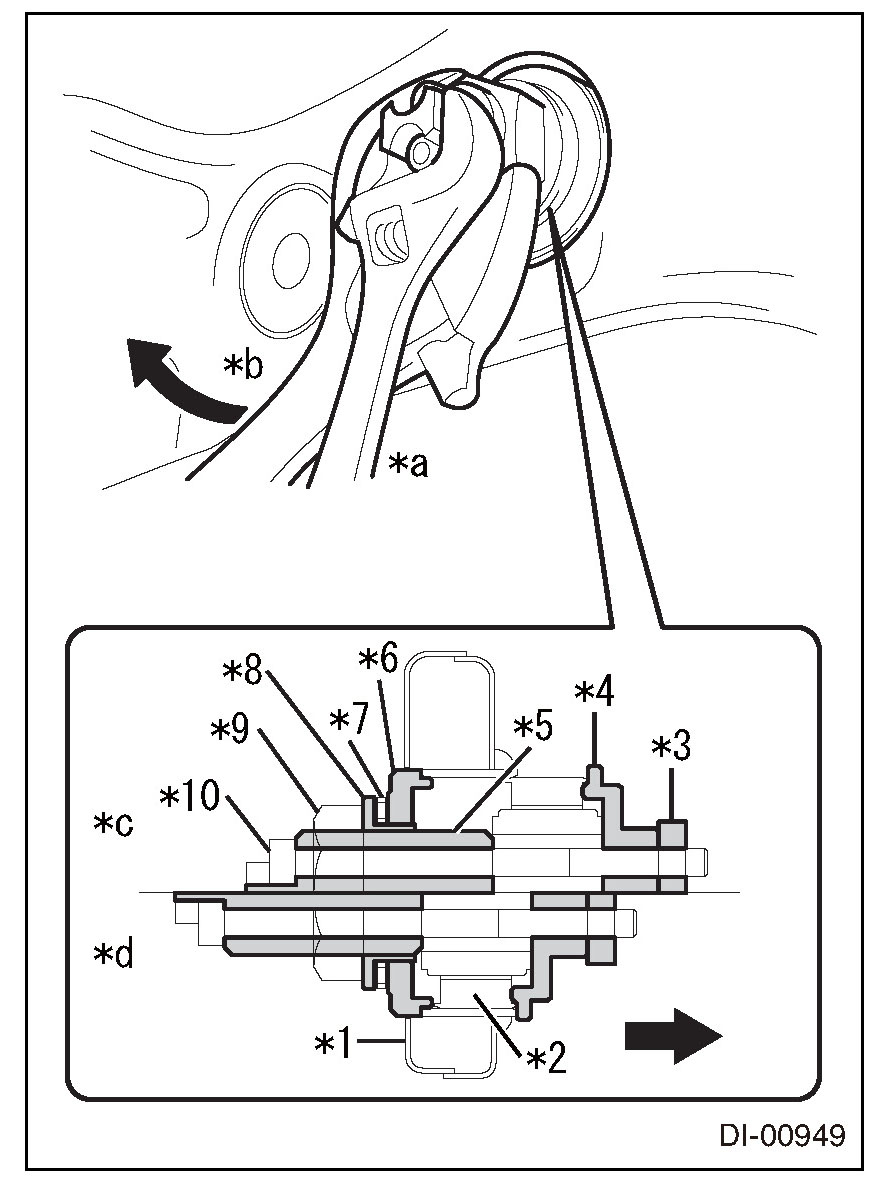

(2) Using the SST, install the rear differential mount cushion NO. 2.
SST 41399CA000 (41399CA030, 41399CA040, 41399FG050, 41399FG061, 41399FG070, 41399FG080, 41399FG091)

Captions in illustration





NOTE:
^ Align the alignment marks on the rear differential mount cushion NO. 2 and the rear suspension member, and install it while checking how it is off-centered.
^ The allowable range of the rear differential mount cushion NO.2 installation angle should be within 5°.





^ Insert the rear differential mount cushion NO. 2 until *7 (SST) contacts the rear suspension member.





2. Installation of rear differential mount cushion NO. 1
(1) Place alignment marks on the new rear differential mount cushion NO. 1 and the rear suspension member as shown in the figure.

CAUTION:
Install the rear differential mount cushion NO. 1 with the triangle mark facing upward.

NOTE:
Before installation, place alignment marks on the rear suspension member and the rear differential mount cushion NO. 1.

Captions in illustration








(2) Using the SST, install the rear differential mount cushion NO. 1.
SST 41399CA050 (41399CA080, 41399CA090, 41399CA100, 41399CA110, 41399CA120, 41399CA130, 41399CA140, 41399CA150)

Captions in illustration





CAUTION:
^ Perform installation while checking the SST and the rear differential mount cushion NO. 1 are not tilted.
^ If the rear differential mount cushion NO. 1 is tilted, the operation becomes less efficient. When setting the rear differential mount cushion NO. 1 in the rear suspension member, make sure there are no gaps between the SST and the rear differential mount cushion NO. 1.

NOTE:
^ Align the alignment marks on the rear differential mount cushion NO. 1 and the rear suspension member, and install it while checking how it is off-centered.
^ The allowable range of the rear differential mount cushion NO.1 installation angle should be within 3°.





^ Insert the rear differential mount cushion until *4 (SST) contacts the rear suspension member.

3. Installation of stabilizer bar RR
4. Installation of exhaust tail pipe ASSY
5. Installation of rear differential carrier ASSY
