Installation

Power Window Regulator Master Switch ASSY

INSTALLATION







1. Installation of power window regulator master switch ASSY

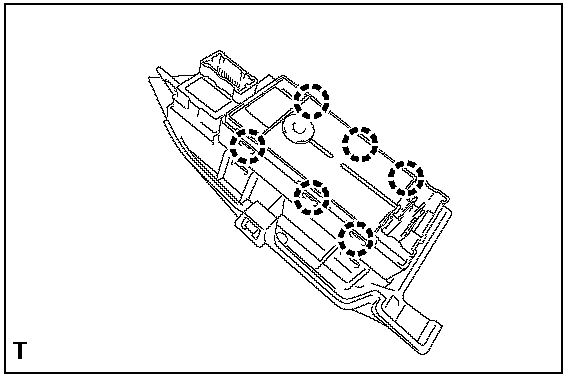

1. Engage the 6 claws and install the power window regulator master switch ASSY to the front armrest base panel UPR LH.

2. Installation of power window regulator master switch ASSY W/front armrest base panel UPR LH
3. Installation of front door trim board SUB-ASSY LH
4. Installation of door armrest cover LH
5. Connection of battery ground terminal
6. Settings when removing/installing battery terminals
