Removal

Power Window Regulator Master Switch ASSY

REMOVAL

1. Disconnection of battery ground terminal
2. Removal of door armrest cover LH
3. Removal of front door trim board SUB-ASSY LH
4. Removal of power window regulator master switch ASSY W/front armrest base panel UPR LH (driver's side door)







5. Removal of power window regulator master switch ASSY

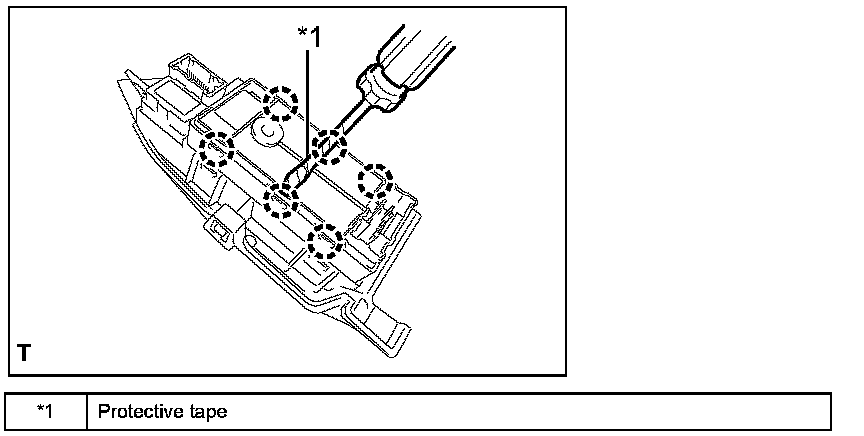

1. Using a flat head screw driver wrapped in protective tape, release the 6 tabs and remove the power window regulator master switch ASSY from the front armrest base panel UPR LH.
