Window Regulator: Testing and Inspection

Power Window Regulator Motor ASSY (Installed To The Front Side)

Unit Inspection

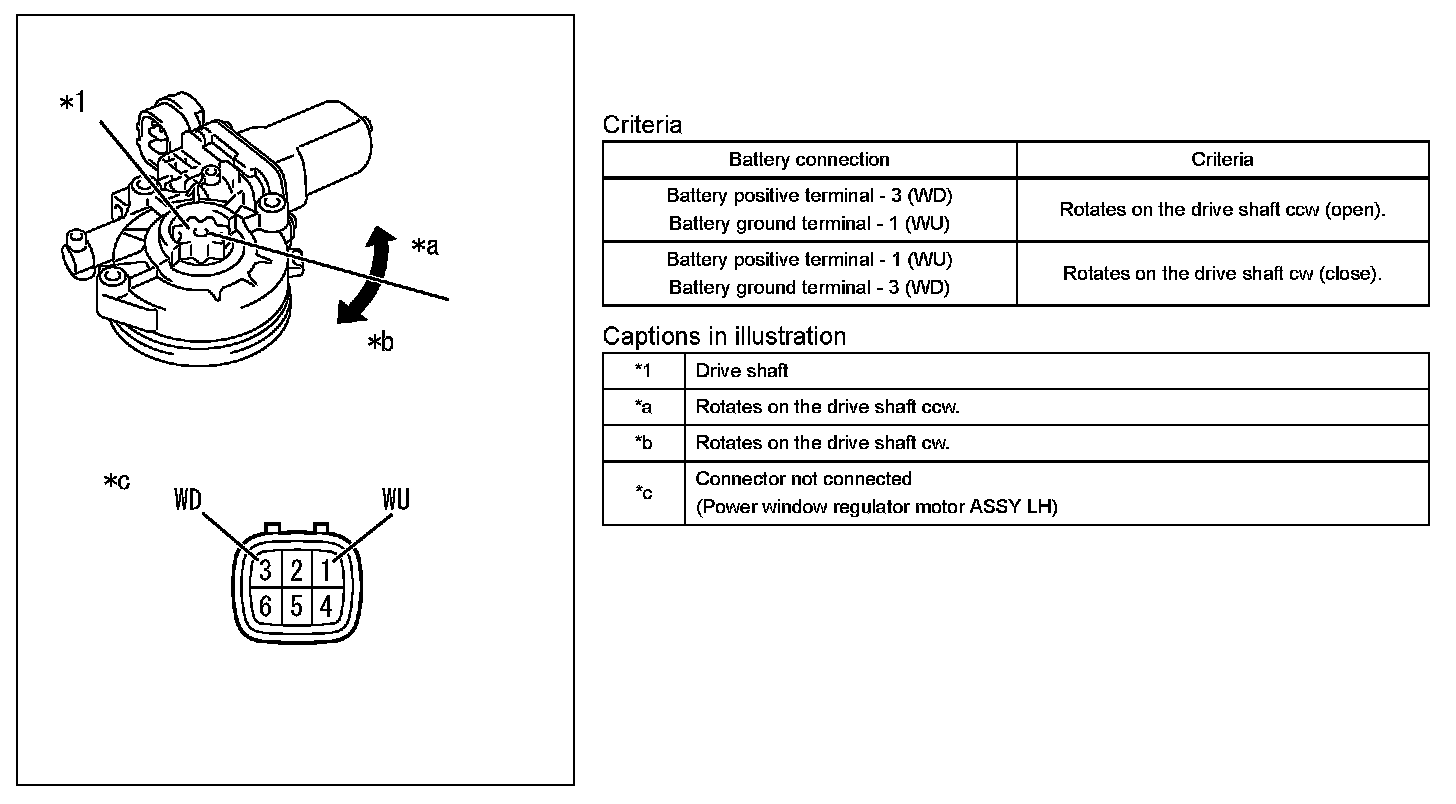

1. Inspection of power window regulator motor ASSY LH (driver's side door)

CAUTION:
- Apply the voltage to the motor terminals 1 and 3 only. Otherwise, the pulse sensor inside the motor can be damaged.
- After removing or replacing the power window regulator motor ASSY, perform the initialization of the power window system.







1. Apply battery voltage to each connector terminal of the power window regulator motor ASSY LH and check that the power window regulator motor ASSY LH operates smoothly.

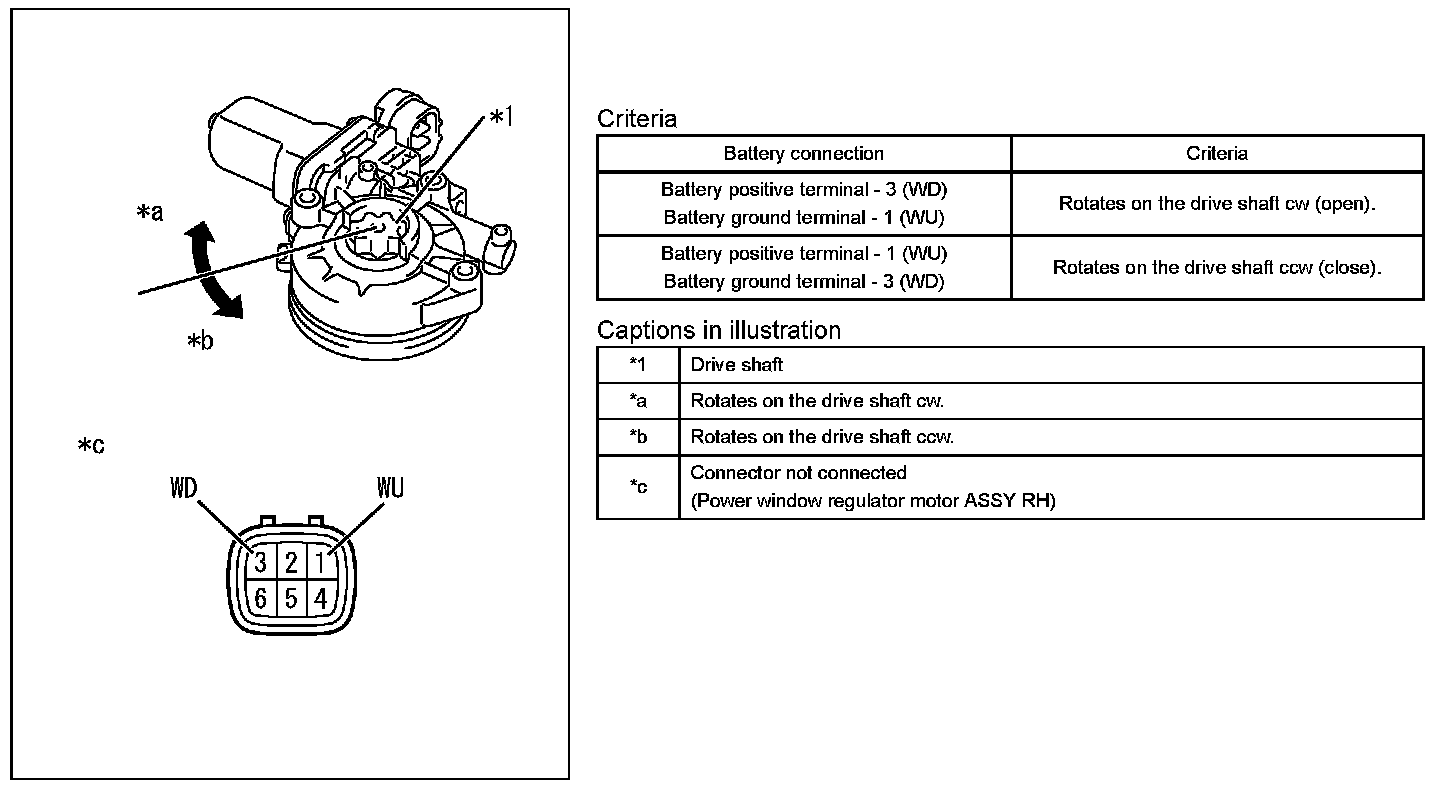

2. Inspection of power window regulator motor ASSY RH (passenger's side door)

CAUTION:
- Apply the voltage to the motor terminals 1 and 3 only. Otherwise, the pulse sensor inside the motor can be damaged.
- After removing or replacing the power window regulator motor ASSY, perform the initialization of the power window system.







1. Apply battery voltage to each connector terminal of the power window regulator motor ASSY RH and check that the power window regulator motor ASSY RH operates smoothly.
