Grille: Service and Repair

Front Grille

REMOVAL

1. Remove the front bumper face.

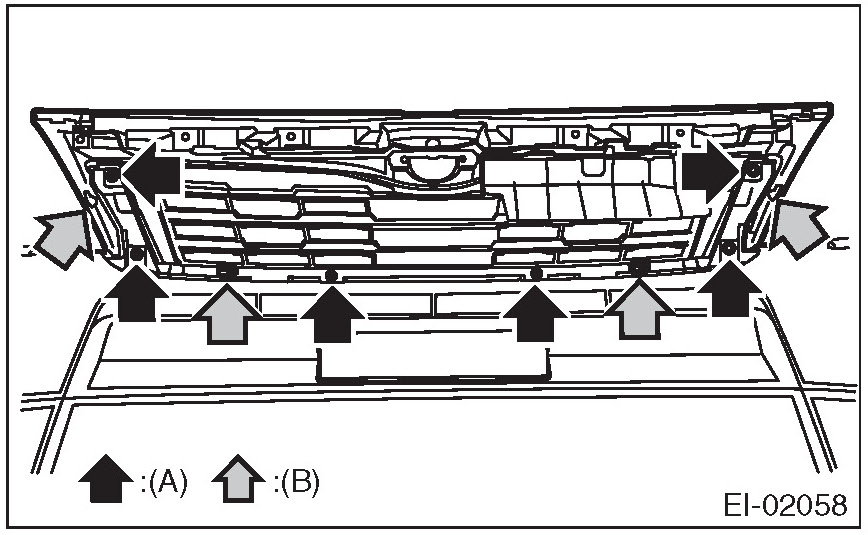

2. Remove the screws (A) from the backside of the bumper face.
3. Detach the tabs (B) and remove the front grille assembly.

INSTALLATION

1. Install each part in the reverse order of removal.
2. Adjust the headlight beam and fog light beam.
- Adjust the headlight beam.
- Adjust the fog light beam. (Model with fog light)
