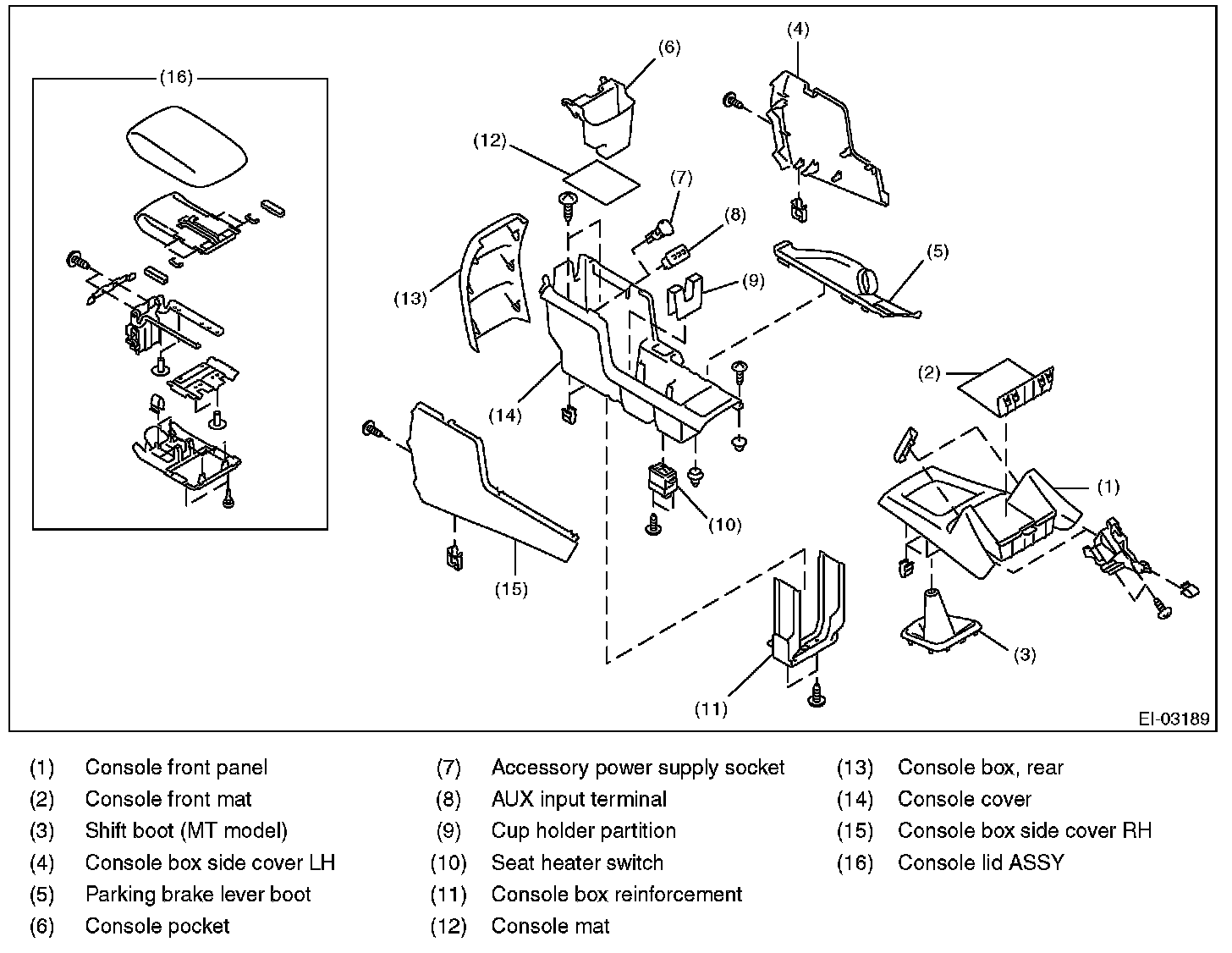

Console Box
Console BoxREMOVAL 1.
Disconnect the ground cable from the battery.
2.
Remove the parking brake lever boot.
3.

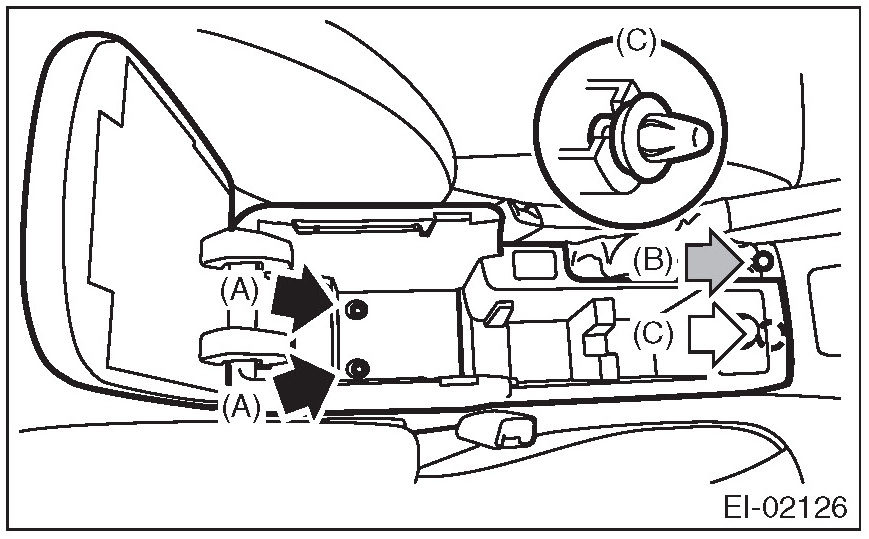

Remove bolts (A), screw (B), and clips (C).
4.
Disconnect the connectors and remove the
console box.
INSTALLATIONInstall each part in the reverse order of removal.
Tightening torque:
2 N.m (0.20 kgf-m, 1.5 ft-lb)
