Crankshaft Main Bearing
Cylinder Block Connecting Bolts
Please refer to Cylinder Block Removal and Installation for tightening specifications and sequence.

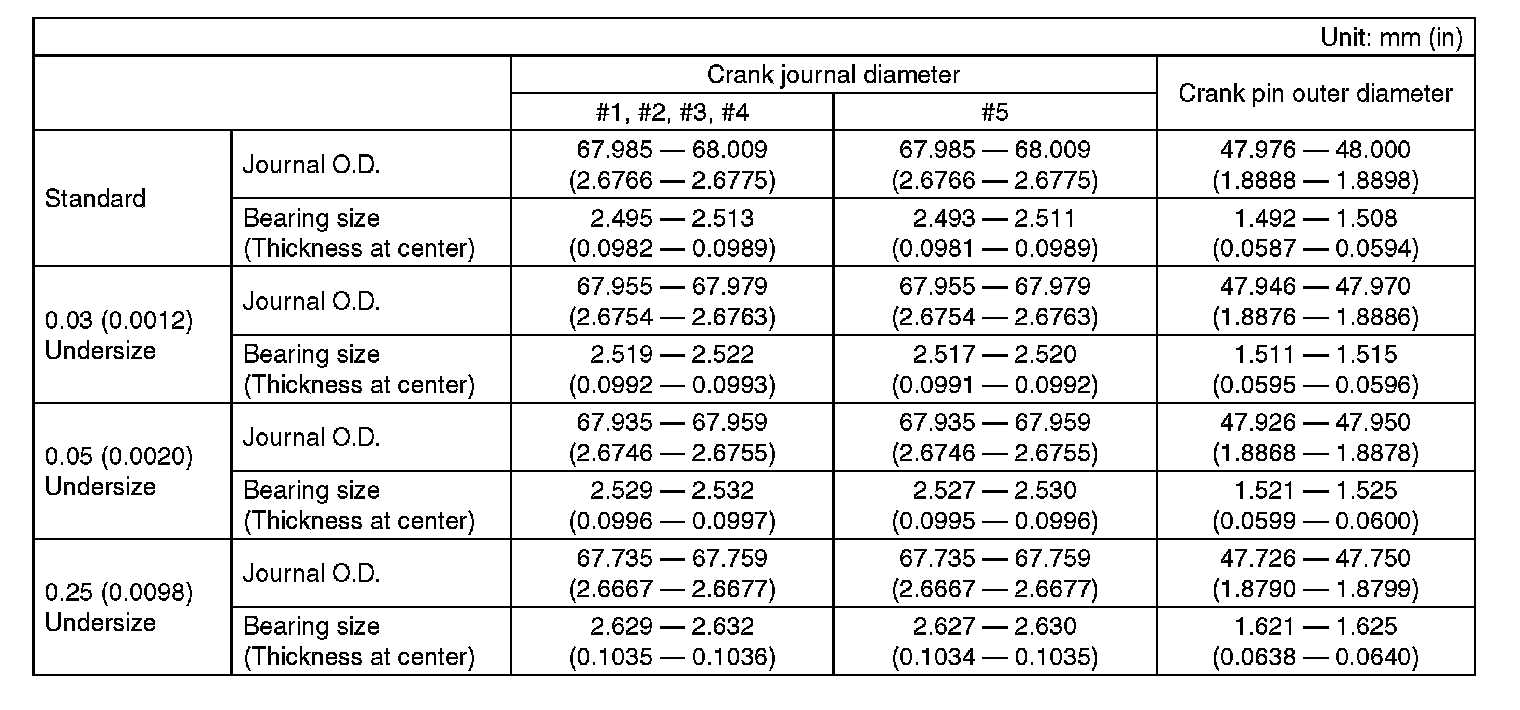

Part 1Crankshaft Dimensions & Bearing Size

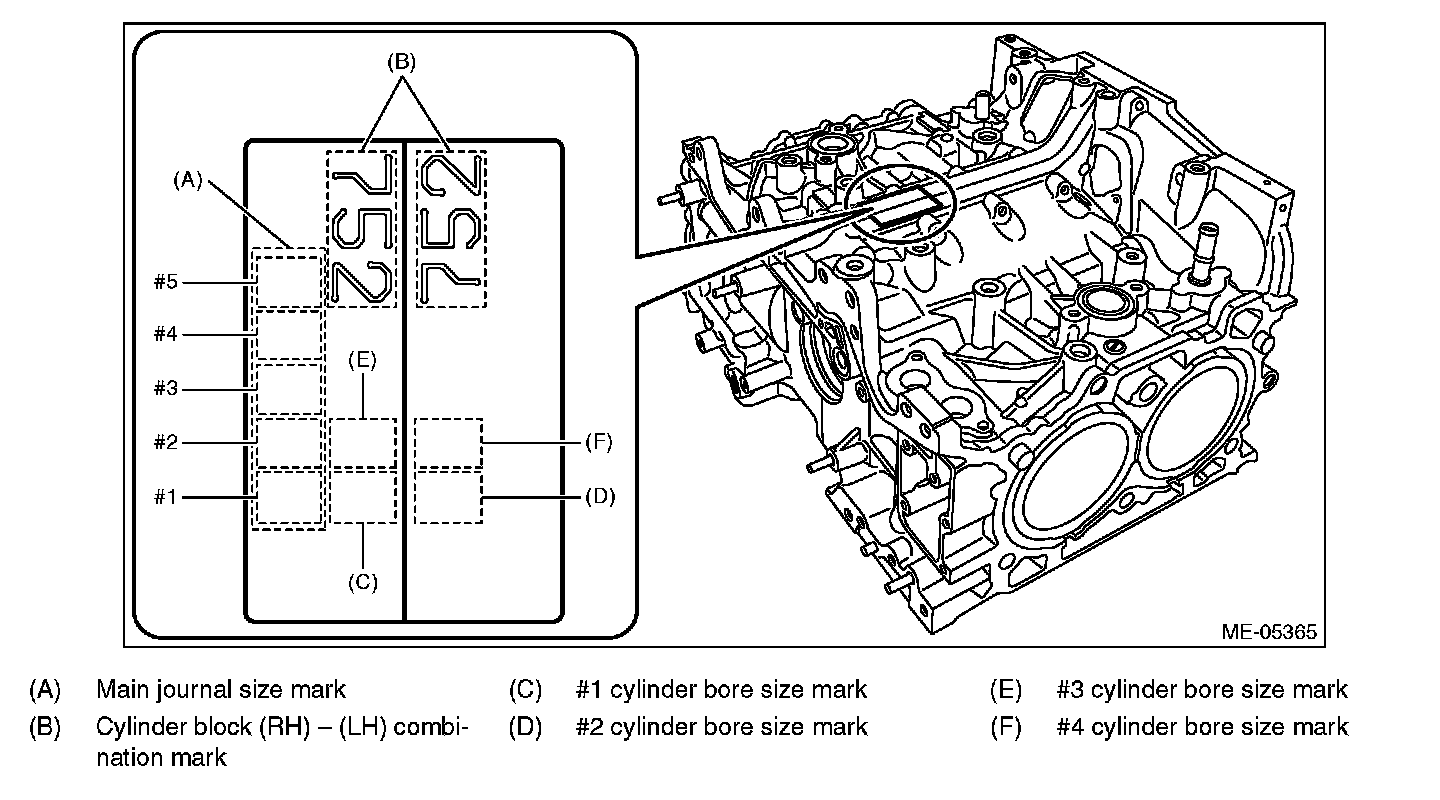

Main Journal Size Mark
Crankshaft thrust clearance:
Standard
0.130 - 0.308 mm (0.00512 - 0.01213 in)
Crankshaft oil clearance:
Standard
0.013 - 0.031 mm (0.00051 - 0.00122 in)
